NSN 4030-01-138-2145 S-506 SIZE 1/4, S506SIZE14, 01-138-2145
Product Details | WIRE ROPE SWAGING SLEEVE
4030-01-138-2145 A compression fitting designed to make a permanent eye, lap, or running splice on an item.
Part Alternates: S-506 SIZE 1/4, S506SIZE14, 4030-01-138-2145, 01-138-2145, 4030011382145, 011382145
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 08 SEP 1982 | 01-138-2145 | 16283 ( SWAGING SLEEVE, WIRE ROPE ) |
Drawings & Photos | NSN 4030-01-138-2145
Cross Reference | NSN 4030-01-138-2145
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S-506 SIZE 1/4 | 04898 | NEWCO MFG CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-01-138-2145
Related Products | NSN 4030-01-138-2145
Technical Data | NSN 4030-01-138-2145
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

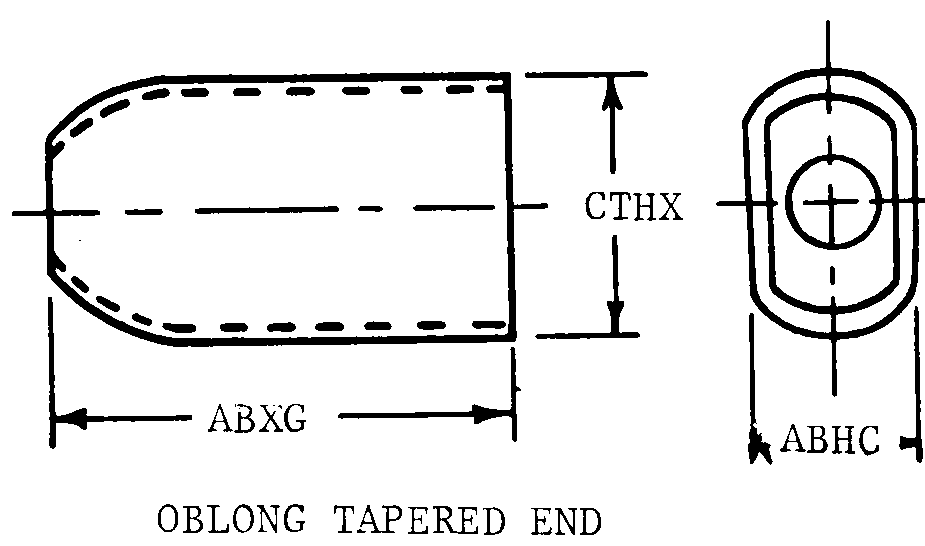

| STYLE DESIGNATOR | 162 OBLONG TAPERED END |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 04898 |
| DESIGN CONTROL REFERENCE | S-506 SIZE 1/4 |
Restrictions/Controls & Freight Information | NSN 4030-01-138-2145
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-01-138-2145
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
