NSN 4030-01-113-2341 G-213-1/2 TON, G21312TON, PWA537997
Product Details | SHACKLE
4030-01-113-2341 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: G-213-1/2 TON, G21312TON, PWA537997, PWA53799-7, 4030-01-113-2341, 01-113-2341, 4030011132341, 011132341
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
40 | 19 MAY 1981 | 01-113-2341 | 11074 ( SHACKLE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4030-01-113-2341
Related Products | NSN 4030-01-113-2341
Technical Data | NSN 4030-01-113-2341

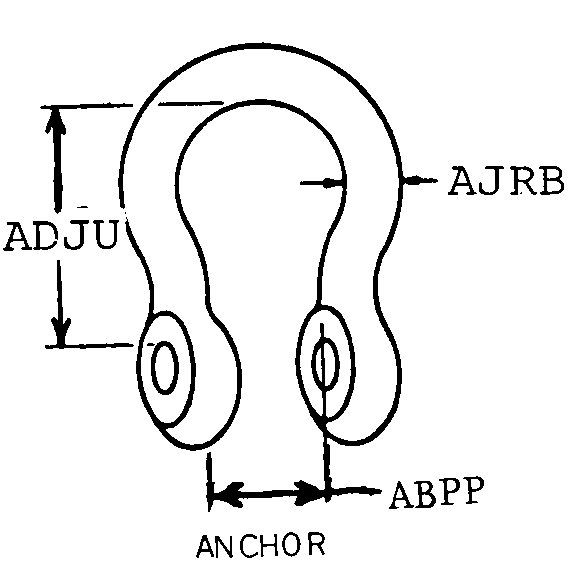

Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
SURFACE TREATMENT | ZINC |
STYLE DESIGNATOR | 110 ANCHOR |
OPENING WIDTH | 0.438 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
INSIDE LENGTH | 1.063 INCHES MINIMUM AND 1.187 INCHES MAXIMUM |
MATERIAL DIAMETER | 0.250 INCHES NOMINAL |
EYELET STYLE | 3 ROUND PLAIN |
EYE INSIDE DIAMETER | 0.312 INCHES NOMINAL |
III END ITEM IDENTIFICATION | F100-PW100/200 AGE |
MANUFACTURERS CODE | 77445 |
DESIGN CONTROL REFERENCE | PWA53799-7 |
Restrictions/Controls & Freight Information | NSN 4030-01-113-2341
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
Less than car load rating | U | 50 |
Less than truck load rating | U | 50.0 |
Water commodity Code | 793 | unknown |
Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | Z | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-01-113-2341
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
