NSN 4030-00-951-4431 NAS10425, NAS1042-5, H101G
Product Details | SHACKLE
4030-00-951-4431 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: NAS10425, NAS1042-5, H101G, S617A, RRC271, RR-C-271, RRC2712TYPE4CLASS4, G21334, G213-3-4, G-213-5/16, G213516, 7147773, 714777-3, 4030-00-951-4431, 00-951-4431, 4030009514431, 009514431
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-951-4431 | 11074 ( SHACKLE ) |

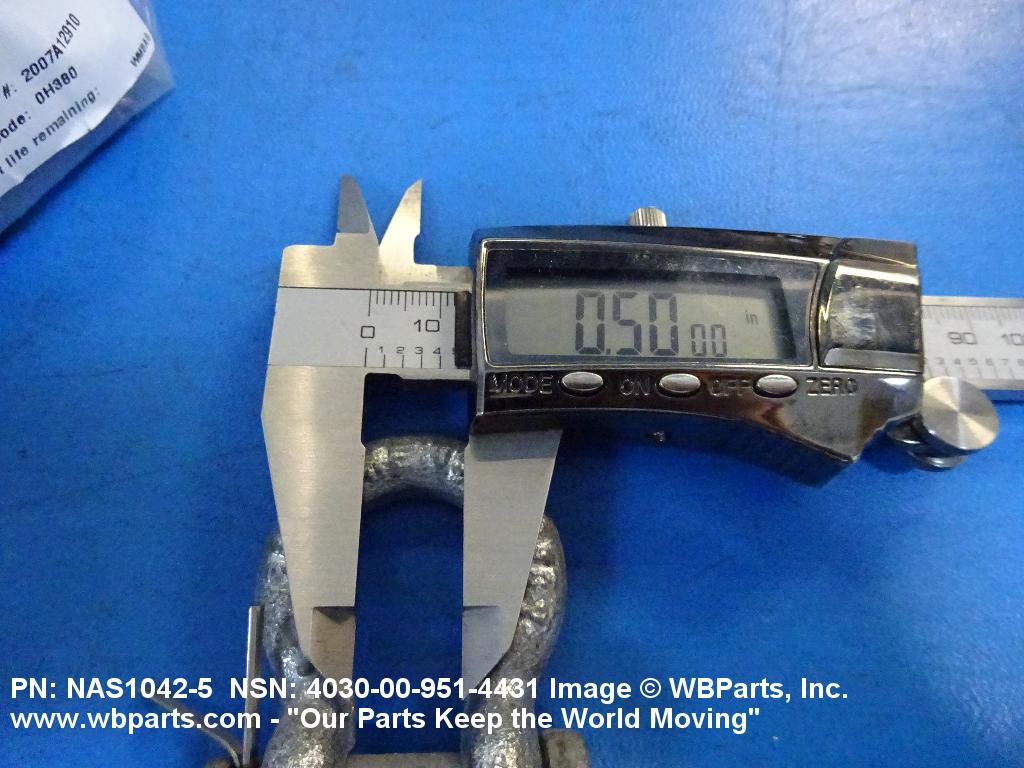

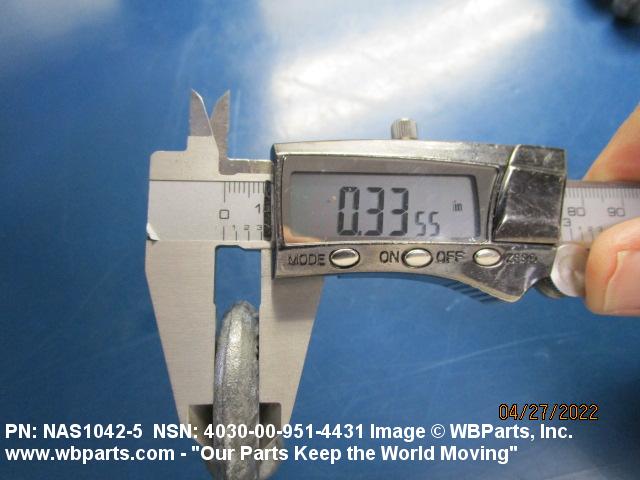

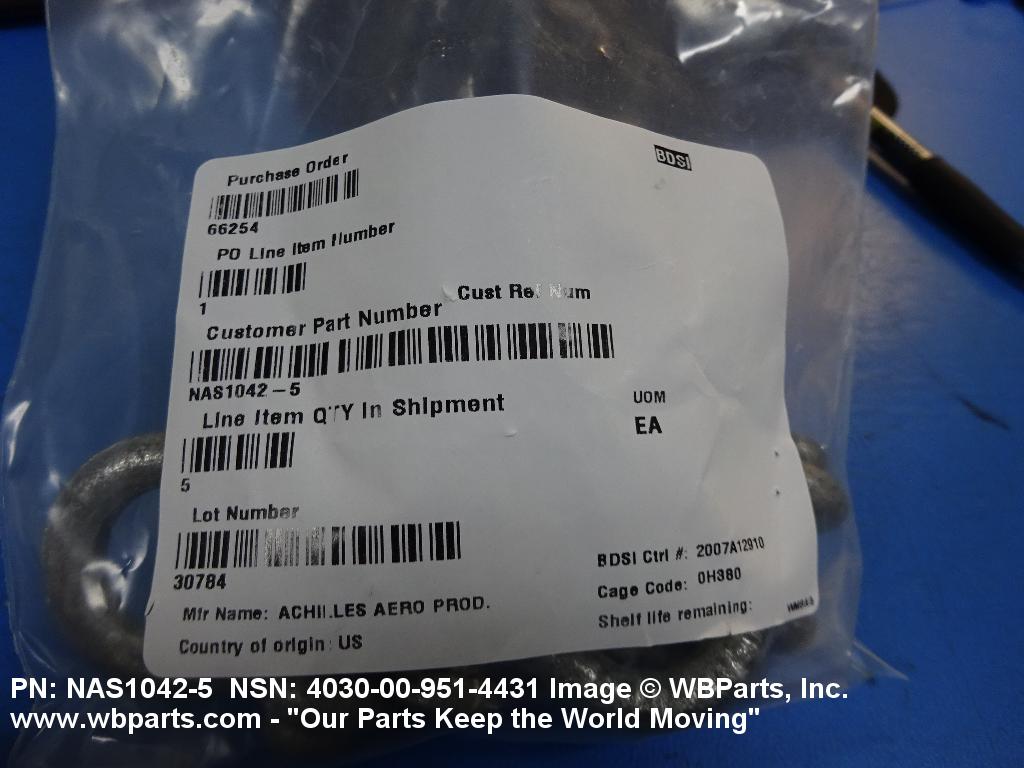

Drawings & Photos | NSN 4030-00-951-4431
Demand History | NSN 4030-00-951-4431
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-951-4431 | 2023-12-15 | 5 | US |
| 4030-00-951-4431 | 2023-02-21 | 1 | US |
| 4030-00-951-4431 | 2023-02-21 | 1 | US |
| NAS10425 | 2022-11-09 | 1 | US |
| RR-C-271 | 2022-10-28 | 2 | Malaysia |
| NAS10425 | 2022-10-20 | 1 | US |
| NAS10425 | 2022-10-19 | 1 | US |
| NAS10425 | 2022-10-18 | 2 | US |
| 4030-00-951-4431 | 2022-04-19 | 25 | United States |
| 4030-00-951-4431 | 2022-04-04 | 5 | United States |
| 4030-00-951-4431 | 2021-12-31 | 2 | Singapore |
| 4030-00-951-4431 | 2021-12-31 | 3 | Singapore |
| NAS10425 | 2021-12-29 | 40 | SG |
| 4030-00-951-4431 | 2021-12-27 | 20 | SG |
| RRC271 | 2021-07-09 | 1 | US |
| RRC271 | 2020-10-22 | 50 | US |
| NAS10425 | 2020-01-29 | 3 | MY |
| RRC271 | 2020-01-29 | 1 | GR |
| 4030-00-951-4431 | 2020-01-13 | 6 | US |
| 4030-00-951-4431 | 2019-12-13 | 1 | PE |
| RR-C-271 | 2019-01-07 | 6 | |
| RR-C-271 | 2019-01-07 | 6 | |
| RRC271 | 2018-04-16 | 1 | US |
| RRC271 | 2018-02-19 | 2 | United States |
| NAS10425 | 2018-01-12 | 2 | China |
| 4030-00-951-4431 | 2018-01-09 | 200 | US |
| 4030-00-951-4431 | 2017-07-11 | 10 | US |
| NAS10425 | 2017-05-19 | 3 | US |
| RRC271 | 2014-09-22 | 3 | US |
| 4030-00-951-4431 | 2013-08-27 | 2 | us |
| RRC271 | 2013-01-11 | 522 | US |
| RRC271 | 2010-11-18 | 300 | US |
| RRC271 | 2010-08-30 | 4 | United States |
| RRC271 | 2010-05-19 | 2 | United States |
| RRC271 | 2008-09-23 | 8000 | US |
| RRC271 | 2008-02-11 | 50 | United States |
| RRC271 | 2007-06-22 | 1000 | US |
Cross Reference | NSN 4030-00-951-4431
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 714777-3 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| G-213-5/16 | 75535 | CROSBY GROUP INC DBA NATIONAL SWAGE |
| G213-3-4 | 75535 | CROSBY GROUP INC DBA NATIONAL SWAGE |
| H101G | 78998 | ANVIL INDUSTRIES INC CLEVELAND CITY FORGE |
| NAS1042-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| RR-C-271 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| RRC2712TYPE4CLASS4 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| S617A | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-951-4431
Related Products | NSN 4030-00-951-4431
Technical Data | NSN 4030-00-951-4431
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | 110 ANCHOR |
| OPENING WIDTH | 0.500 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| INSIDE LENGTH | 1.188 INCHES MINIMUM AND 1.312 INCHES MAXIMUM |
| MATERIAL DIAMETER | 0.312 INCHES NOMINAL |
| BREAKING STRENGTH | 5300.0 POUNDS NOMINAL |
| SAFE OPERATING LOAD RATING | 1060.000 POUNDS MAXIMUM |
| CLOSURE HEAD STYLE | 3 FLAT |
| END CONDITION | PLAIN |
| LOCKING DEVICE TYPE | COTTER PIN |
| FEATURES PROVIDED | FORELOCK PINHOLE |
| SPECIFICATION/STANDARD DATA | 80205-NAS1042 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 4 CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RR-C-271 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RRC2712TYPE4CLASS4 |
Restrictions/Controls & Freight Information | NSN 4030-00-951-4431
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-951-4431
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
