NSN 4030-00-763-4160 MS201153, MS20115-3, 00-763-4160
Product Details | SHACKLE
4030-00-763-4160 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: MS201153, MS20115-3, 4030-00-763-4160, 00-763-4160, 4030007634160, 007634160
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1960 | 00-763-4160 | 11074 ( SHACKLE ) |
Drawings & Photos | NSN 4030-00-763-4160
Demand History | NSN 4030-00-763-4160
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS201153 | 2021-09-250 | 1 | us |
| 4030-00-763-4160 | 2018-03-89 | 1 | DIBBS-RFPs |
| 4030-00-763-4160 | 2017-09-249 | 380 | DIBBS |
| MS201153 | 2017-07-186 | 30 | Brazil |
| MS201153 | 2017-05-142 | 30 | Brazil |
| 4030-00-763-4160 | 2016-11-312 | 218 | DIBBS |
| MS20115-3 | 2012-07-187 | 10 | KR |
Cross Reference | NSN 4030-00-763-4160
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20115-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-763-4160
Related Products | NSN 4030-00-763-4160
Technical Data | NSN 4030-00-763-4160
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |

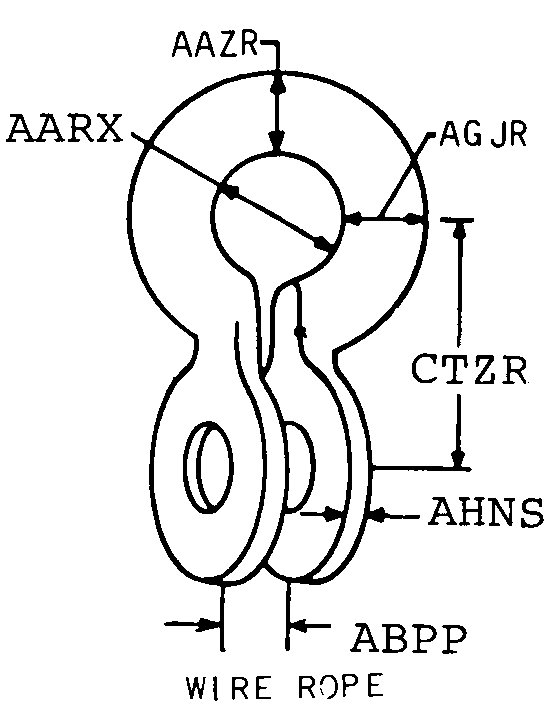

| STYLE DESIGNATOR | 127 WIRE ROPE |
| INSIDE DIAMETER | 0.219 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| MAJOR DIAMETER | 0.140 INCHES NOMINAL |
| OPENING WIDTH | 0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM |
| MINOR DIAMETER | 0.073 INCHES NOMINAL |
| LEG END THICKNESS | 0.073 INCHES NOMINAL |
| DISTANCE FROM BAIL CENTER TO HOLE CENTER | 0.446 INCHES MINIMUM AND 0.578 INCHES MAXIMUM |
| BREAKING STRENGTH | 920.0 POUNDS NOMINAL |

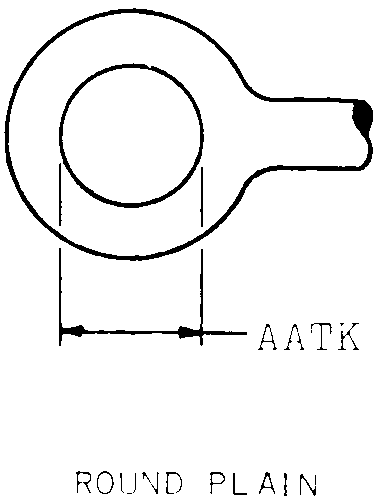

| EYELET STYLE | 3 ROUND PLAIN |
| EYE INSIDE DIAMETER | 0.190 INCHES MINIMUM AND 0.195 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20115-3 |
Restrictions/Controls & Freight Information | NSN 4030-00-763-4160
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
