NSN 4030-00-641-0605 927571, 92757-1, 00-641-0605
Product Details | WIRE ROPE SOCKET
4030-00-641-0605 A funnel-shaped receptacle or basket, designed to hold the end of an item when secured by molten metal or by a wedge. Extending from the upper surface of the basket is a closed loop, a stud end, or two clevis-type prongs or jaws with ends perforated to receive a pin attaching the device to another item. See also TERMINAL, WIRE ROPE (as modified).
Part Alternates: 927571, 92757-1, 4030-00-641-0605, 00-641-0605, 4030006410605, 006410605
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-641-0605 | 02645 ( SOCKET, WIRE ROPE ) |
Drawings & Photos | NSN 4030-00-641-0605
Demand History | NSN 4030-00-641-0605
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-641-0605 | 2019-01-30 | 44 | DIBBS |
| 4030-00-641-0605 | 2018-10-276 | 27 | DIBBS |
| 4030-00-641-0605 | 2018-03-89 | 1 | DIBBS-RFPs |
| 4030-00-641-0605 | 2017-04-117 | 20 | DIBBS |
| 4030-00-641-0605 | 2016-09-245 | 6 | DIBBS |
| 4030-00-641-0605 | 2016-08-237 | 6 | DIBBS |
| 4030-00-641-0605 | 2016-05-144 | 10 | DIBBS |
| 4030-00-641-0605 | 2016-05-136 | 10 | DIBBS |
| 4030-00-641-0605 | 2015-07-196 | 24 | DIBBS |
| 4030-00-641-0605 | 2015-07-188 | 24 | DIBBS |
| 4030-00-641-0605 | 2014-11-323 | 28 | DIBBS |
| 4030-00-641-0605 | 2012-05-126 | 50 | DIBBS |
| 4030-00-641-0605 | 2011-11-307 | 41 | DIBBS |
| 4030-00-641-0605 | 2011-06-167 | 26 | DIBBS |
| 4030-00-641-0605 | 2010-04-116 | 17 | DIBBS |
| 4030-00-641-0605 | 2010-04-99 | 17 | DIBBS |
| 4030-00-641-0605 | 2009-06-170 | 17 | DIBBS |
Cross Reference | NSN 4030-00-641-0605
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92757-1 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-641-0605
Related Products | NSN 4030-00-641-0605
Technical Data | NSN 4030-00-641-0605
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

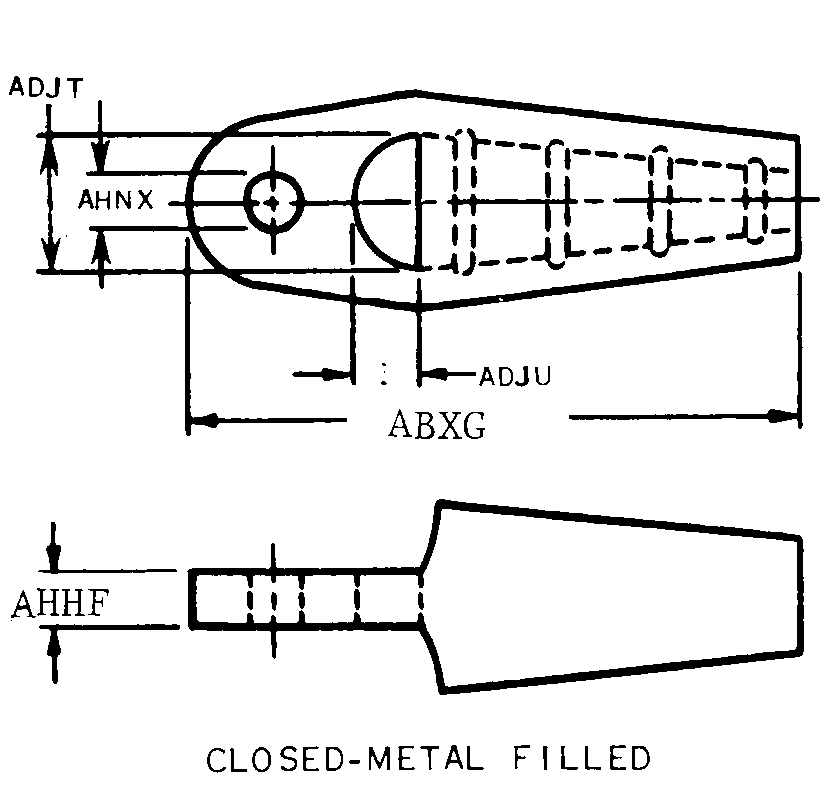

| STYLE DESIGNATOR | 156 CLOSED-METAL FILLED |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| INSIDE WIDTH | 2.312 INCHES NOMINAL |
| INSIDE LENGTH | 2.156 INCHES NOMINAL |
| TONGUE THICKNESS | 0.865 INCHES MINIMUM AND 0.870 INCHES MAXIMUM |
| BOLT HOLE DIAMETER | 0.875 INCHES MINIMUM AND 0.877 INCHES MAXIMUM |
| ACCOMMODATED MATERIAL DIAMETER | 0.875 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4030-00-641-0605
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-641-0605
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
