NSN 4030-00-454-4511 NAS1435E2, RA24822, RA2482-2
Product Details | SOCKET WIRE ROPE TERMINAL
4030-00-454-4511 An item designed to receive a swaged ball end termination. One end is spherical shaped and the opposite end is eye or fork shaped for attaching to another part.
Part Alternates: NAS1435E2, RA24822, RA2482-2, GT510B2, 4030-00-454-4511, 00-454-4511, 4030004544511, 004544511
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 21 APR 1969 | 00-454-4511 | 16285 ( TERMINAL, WIRE ROPE, SOCKET ) |

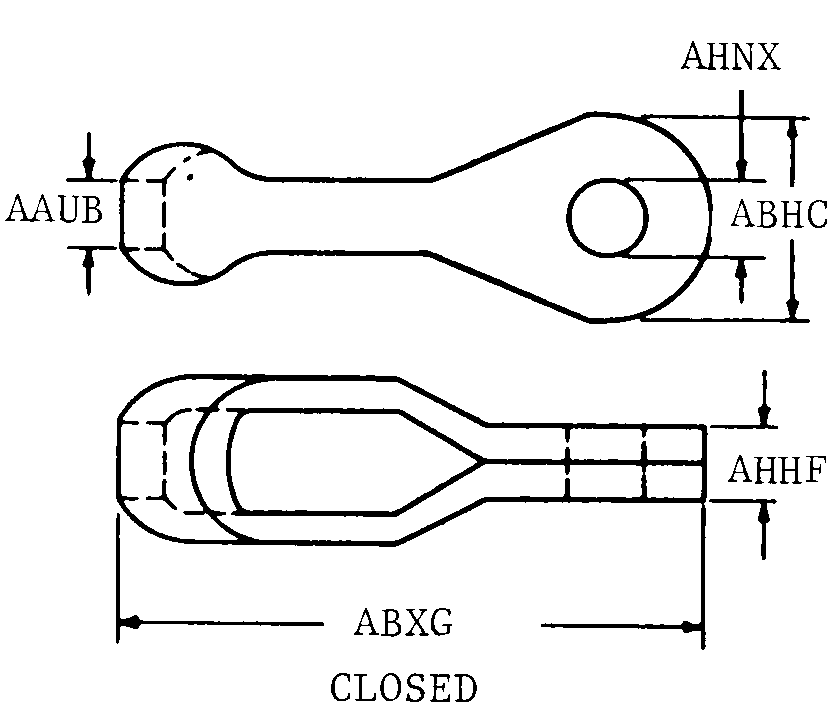

Drawings & Photos | NSN 4030-00-454-4511
Demand History | NSN 4030-00-454-4511
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4030-00-454-4511 | 2018-07-196 | 231 | DIBBS |
| 4030-00-454-4511 | 2017-06-164 | 560 | DIBBS |
| 4030-00-454-4511 | 2017-05-145 | 449 | DIBBS |
| 4030-00-454-4511 | 2017-03-90 | 159 | DIBBS |
| 4030-00-454-4511 | 2017-03-82 | 159 | DIBBS |
| 4030-00-454-4511 | 2017-03-78 | 106 | DIBBS |
| 4030-00-454-4511 | 2017-02-54 | 100 | DIBBS |
| 4030-00-454-4511 | 2017-02-51 | 100 | DIBBS |
| 4030-00-454-4511 | 2010-09-263 | 1376 | DIBBS |
Cross Reference | NSN 4030-00-454-4511
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GT510B2 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| GT510B2 | 61174 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| NAS1435E2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| RA2482-2 | 01976 | ACCO INDUSTRIES INC SUB OF BABCOCK INTL INC |
| RA2482-2 | 5S058 | TRIDENT AUTOMOTIVE INC |
| RA2482-2 | 91796 | DETROIT DIAMOND DRILLING INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-454-4511
Related Products | NSN 4030-00-454-4511
Technical Data | NSN 4030-00-454-4511
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| STYLE DESIGNATOR | 170 CLOSED |
| HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| OVERALL WIDTH | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| OVERALL LENGTH | 1.240 INCHES MINIMUM AND 1.323 INCHES MAXIMUM |
| TONGUE THICKNESS | 0.078 INCHES MINIMUM AND 0.088 INCHES MAXIMUM |
| BOLT HOLE DIAMETER | 0.188 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.078 INCHES MINIMUM AND 0.088 INCHES MAXIMUM |
| ACCOMMODATED MATERIAL DIAMETER | 0.063 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS1435 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4030-00-454-4511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZY | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-454-4511
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
