NSN 4030-01-417-3820 3401263, 340126-3, 01-417-3820

Product Details | SOCKET WIRE ROPE TERMINAL

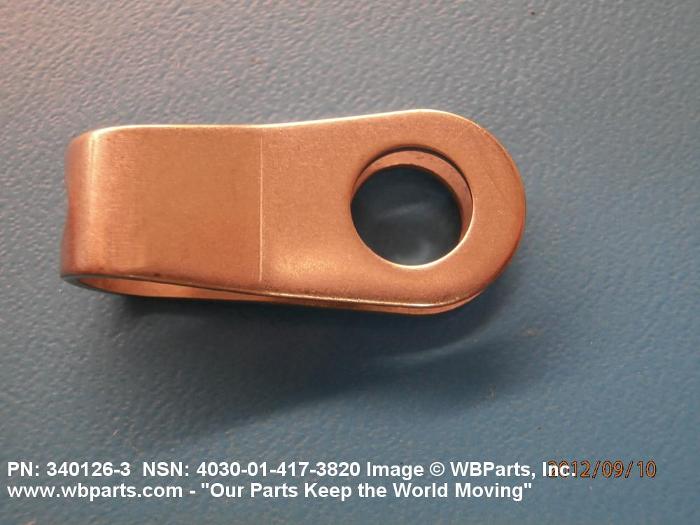

4030-01-417-3820 An item designed to receive a swaged ball end termination. One end is spherical shaped and the opposite end is eye or fork shaped for attaching to another part.

Part Alternates: 3401263, 340126-3, 4030-01-417-3820, 01-417-3820, 4030014173820, 014173820

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
40	06 AUG 1995	01-417-3820	16285 ( TERMINAL, WIRE ROPE, SOCKET )

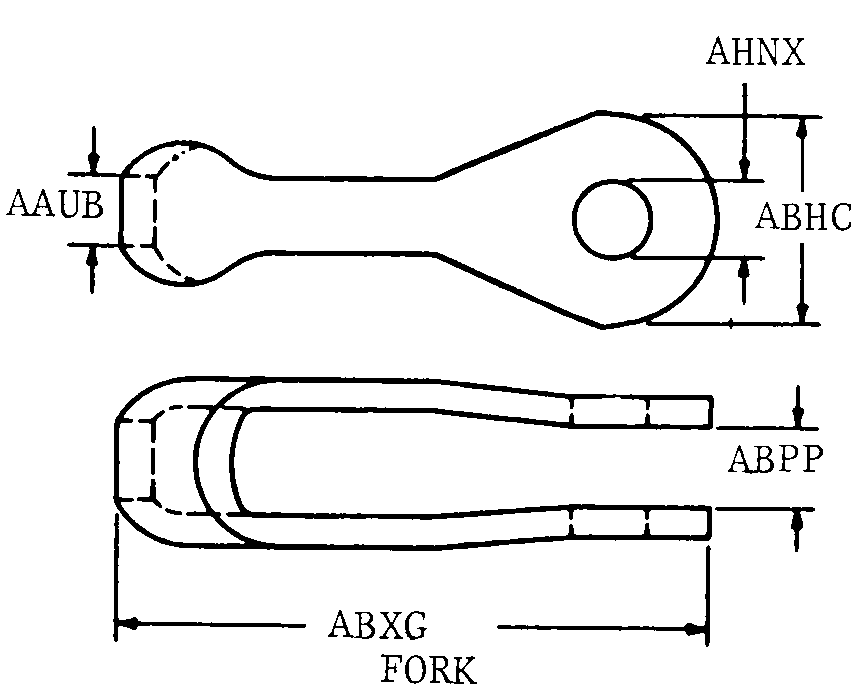

Drawings & Photos | NSN 4030-01-417-3820

Part Number	Request Date	QTY	Origin
3401263	2016-06-179	50	United States
3401263	2016-06-179	100	United States
3401263	2016-06-179	150	United States
3401263	2016-06-173	150	United States
3401263	2016-01-04	200	United States
3401263	2015-01-22	38	United States
4030-01-417-3820	2012-02-33	65	United States
4030-01-417-3820	2012-02-33	200	United States
3401263	2011-06-152	26	US
3401263	2011-05-143	50	US
4030-01-417-3820	2009-04-98	25	United States
4030-01-417-3820	2009-01-27	50	United States
4030-01-417-3820	2006-11-313	60	United States
4030-01-417-3820	2006-10-289	100	United States

Cross Reference | NSN 4030-01-417-3820

Part Number	Cage Code	Manufacturer
340126-3	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4030-01-417-3820

Compare

Related Products | NSN 4030-01-417-3820

4030-01-417-3825, 4030-01-417-4113, 4030-01-417-4563, 4030-01-417-5140, 4030-01-417-5741

Technical Data | NSN 4030-01-417-3820

Characteristic	Specifications
MATERIAL	STEEL COMP 302
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5515 ASSN STD SINGLE MATERIAL RESPONSE
SURFACE TREATMENT	PASSIVATE
STYLE DESIGNATOR	171 FORK
HOLE DIAMETER	0.158 INCHES MINIMUM AND 0.164 INCHES MAXIMUM
OVERALL WIDTH	0.560 INCHES NOMINAL
OPENING WIDTH	0.090 INCHES NOMINAL
OVERALL LENGTH	1.230 INCHES NOMINAL
BOLT HOLE DIAMETER	0.327 INCHES MINIMUM AND 0.334 INCHES MAXIMUM
ACCOMMODATED MATERIAL DIAMETER	0.158 INCHES MINIMUM AND 0.164 INCHES MAXIMUM
