Product Details | EYE AND LINK SWIVEL

4030-00-273-2882 A round or oval part and either a D-shaped or a heart-shaped part mounted on a common axis so as to permit relative rotation between the parts.

Part Alternates: 8051567671, 805-1567671, 4030-00-273-2882, 00-273-2882, 4030002732882, 002732882

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG) NSN Assign. NIIN
40 01 JAN 1963 00-273-2882

Drawings & Photos | NSN 4030-00-273-2882


Demand History | NSN 4030-00-273-2882

Part Number Request Date QTY Origin
4030-00-273-2882 2020-05-132 8 DIBBS
4030-00-273-2882 2020-04-118 8 DIBBS
4030-00-273-2882 2020-04-110 8 DIBBS
4030-00-273-2882 2018-11-333 14 DIBBS
4030-00-273-2882 2018-11-322 14 DIBBS
4030-00-273-2882 2017-12-348 11 DIBBS
4030-00-273-2882 2017-01-04 2 DIBBS
4030-00-273-2882 2016-05-139 5 DIBBS
4030-00-273-2882 2016-05-126 5 DIBBS

Cross Reference | NSN 4030-00-273-2882

Part Number Cage Code Manufacturer
805-1567671 80064 NAVAL SHIP SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-00-273-2882

Technical Data | NSN 4030-00-273-2882

Characteristic Specifications
MATERIAL STEEL

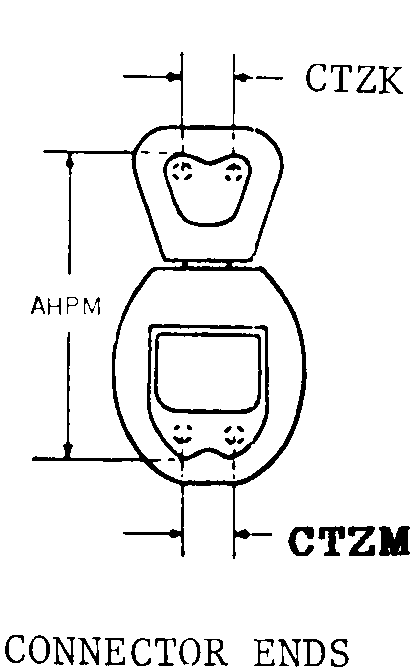

STYLE DESIGNATOR 186 CONNECTOR ENDS
REACH LENGTH 12.218 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN UPPER CONNECTIONS 2.250 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN LOWER CONNECTIONS 2.250 INCHES NOMINAL
ACCOMMODATED MATERIAL DIAMETER 1.250 INCHES MINIMUM AND 1.375 INCHES MAXIMUM
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS AS DIFFERENTIATED BY THE ACCOMMODATED MATERIAL DIA
MANUFACTURERS CODE 80064
DESIGN CONTROL REFERENCE 805-1567671

Restrictions/Controls & Freight Information | NSN 4030-00-273-2882

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 105200 FITTINGS CABLE/CHAIN/ROPE I/S
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 576 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4030-00-273-2882

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
