NSN 4030-00-702-7561 RRC271, 00-702-7561, 007027561
Product Details | EYE AND LINK SWIVEL
4030-00-702-7561 A round or oval part and either a D-shaped or a heart-shaped part mounted on a common axis so as to permit relative rotation between the parts.
Part Alternates: RRC271, 4030-00-702-7561, 00-702-7561, 4030007027561, 007027561
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-702-7561 | 11084 ( SWIVEL, EYE AND LINK ) |
Drawings & Photos | NSN 4030-00-702-7561
Demand History | NSN 4030-00-702-7561
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RRC271 | 2021-07-190 | 1 | US |
| RRC271 | 2020-10-296 | 50 | US |
| RRC271 | 2020-01-29 | 1 | GR |
| RRC271 | 2018-04-106 | 1 | US |
| RRC271 | 2018-02-50 | 2 | United States |
| RRC271 | 2014-09-265 | 3 | US |
| RRC271 | 2013-01-11 | 522 | US |
| RRC271 | 2010-11-322 | 300 | US |
| RRC271 | 2010-08-242 | 4 | United States |
| RRC271 | 2010-05-139 | 2 | United States |
| RRC271 | 2008-09-267 | 8000 | US |
| RRC271 | 2008-02-42 | 50 | United States |
| RRC271 | 2007-06-173 | 1000 | US |
Cross Reference | NSN 4030-00-702-7561
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RRC271 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-702-7561
Technical Data | NSN 4030-00-702-7561
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON MALLEABLE |
| SURFACE TREATMENT | ZINC |

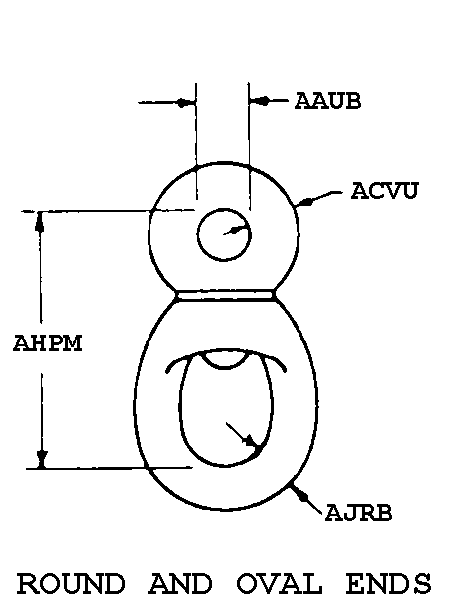

| STYLE DESIGNATOR | 180 ROUND AND OVAL ENDS |
| HOLE DIAMETER | 0.438 INCHES NOMINAL |
| STOCK DIAMETER | 0.250 INCHES NOMINAL |
| REACH LENGTH | 0.250 INCHES NOMINAL |
| MATERIAL DIAMETER | 2.500 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.312 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 7 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RRC271 |
Restrictions/Controls & Freight Information | NSN 4030-00-702-7561
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
