NSN 4030-00-171-4640 893213, 00-171-4640, 001714640
Product Details | SHACKLE
4030-00-171-4640 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: 893213, 4030-00-171-4640, 00-171-4640, 4030001714640, 001714640
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-171-4640 | 11074 ( SHACKLE ) |
Drawings & Photos | NSN 4030-00-171-4640
Cross Reference | NSN 4030-00-171-4640
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 893213 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-171-4640
Technical Data | NSN 4030-00-171-4640
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON WROUGHT |
| STYLE DESIGNATOR | 111 CHAIN |
| OPENING WIDTH | 1.750 INCHES NOMINAL |
| INSIDE LENGTH | 4.000 INCHES NOMINAL |
| MATERIAL DIAMETER | 1.000 INCHES NOMINAL |

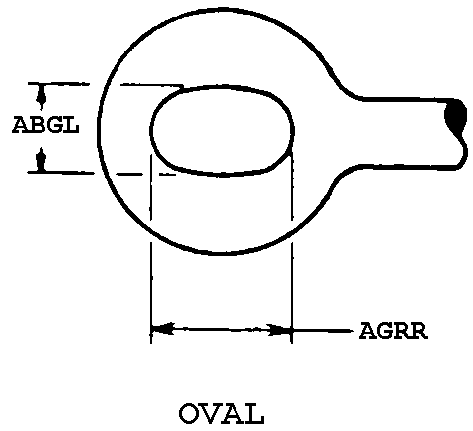

| EYELET STYLE | 2 OVAL |
| WIDTH | 0.688 INCHES NOMINAL |
| EYELET HEIGHT | 1.312 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4030-00-171-4640
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4030-00-171-4640
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
