NSN 4030-00-141-7274 JANT781, RA261010, RA2610-10
Product Details | WIRE ROPE SWAGING SLEEVE
4030-00-141-7274 A compression fitting designed to make a permanent eye, lap, or running splice on an item.
Part Alternates: JANT781, RA261010, RA2610-10, 5347510093, 53-4751-0093, 4030-00-141-7274, 00-141-7274, 4030001417274, 001417274
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
40 | 01 JAN 1963 | 00-141-7274 | 16283 ( SWAGING SLEEVE, WIRE ROPE ) |
Demand History | NSN 4030-00-141-7274
Part Number | Request Date | QTY | Origin |
---|---|---|---|
4030-00-141-7274 | 2014-09-268 | 10 | DIBBS |
4030-00-141-7274 | 2014-09-247 | 10 | DIBBS |
Cross Reference | NSN 4030-00-141-7274
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-141-7274
Related Products | NSN 4030-00-141-7274
Technical Data | NSN 4030-00-141-7274
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
SURFACE TREATMENT | PASSIVATE |

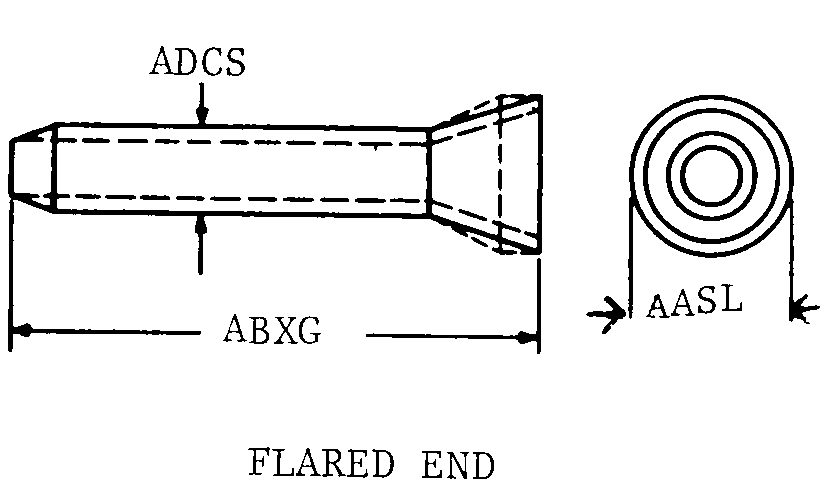

STYLE DESIGNATOR | 161 FLARED END |
HEAD DIAMETER | 0.750 INCHES NOMINAL |
OVERALL LENGTH | 2.812 INCHES MINIMUM AND 2.937 INCHES MAXIMUM |
PLAIN SHANK DIAMETER | 0.620 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
ACCOMMODATED MATERIAL DIAMETER | 0.312 INCHES NOMINAL |
MANUFACTURERS CODE | 81350 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | JANT781 |
Restrictions/Controls & Freight Information | NSN 4030-00-141-7274
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
Less than car load rating | ||
Less than truck load rating | U | 50.0 |
Water commodity Code | 713 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4030-00-141-7274
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
H EA : Each |
