Product Details | WIRE ROPE SWAGING SLEEVE

4030-00-132-9170 A compression fitting designed to make a permanent eye, lap, or running splice on an item.

Part Alternates: SA160ST2, 1160ST2, 1-160ST2, 4030-00-132-9170, 00-132-9170, 4030001329170, 001329170

Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain

Supply Group (FSG) NSN Assign. NIIN
40 00-132-9170

Drawings & Photos | NSN 4030-00-132-9170


Demand History | NSN 4030-00-132-9170

Part Number Request Date QTY Origin
4030-00-132-9170 2018-07-199 30 United States
4030-00-132-9170 2014-02-42 6 us

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4030-00-132-9170

Technical Data | NSN 4030-00-132-9170

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING

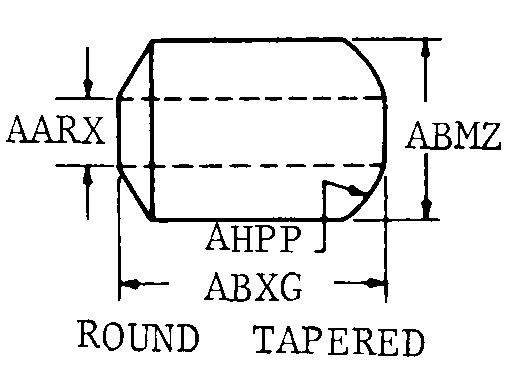

STYLE DESIGNATOR 167 ROUND TAPERED
INSIDE DIAMETER 0.076 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
DIAMETER 0.310 INCHES MINIMUM AND 0.315 INCHES MAXIMUM
OVERALL LENGTH 0.437 INCHES NOMINAL
OUTER RADIUS 0.156 INCHES NOMINAL
ACCOMMODATED MATERIAL DIAMETER 0.0625 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 4030-00-132-9170

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
