NSN 4030-00-132-9153 AN11516, AN115-16, 00-132-9153
Product Details | SHACKLE
4030-00-132-9153 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: AN11516, AN115-16, 4030-00-132-9153, 00-132-9153, 4030001329153, 001329153
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1963 | 00-132-9153 | 11074 ( SHACKLE ) |

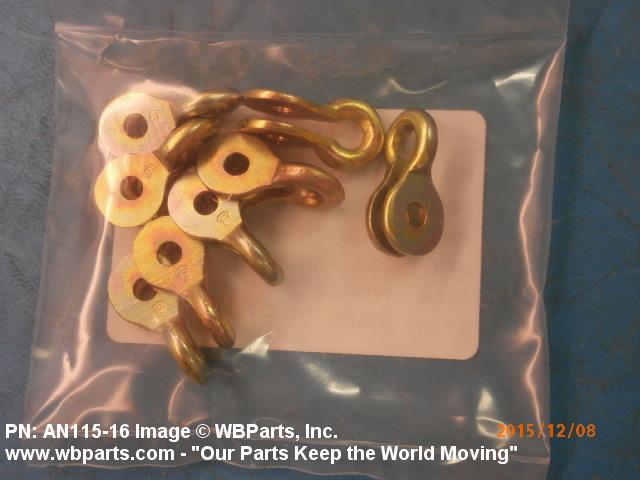

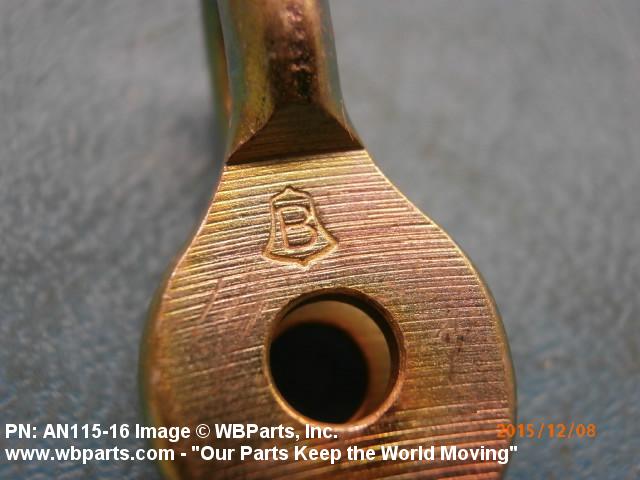

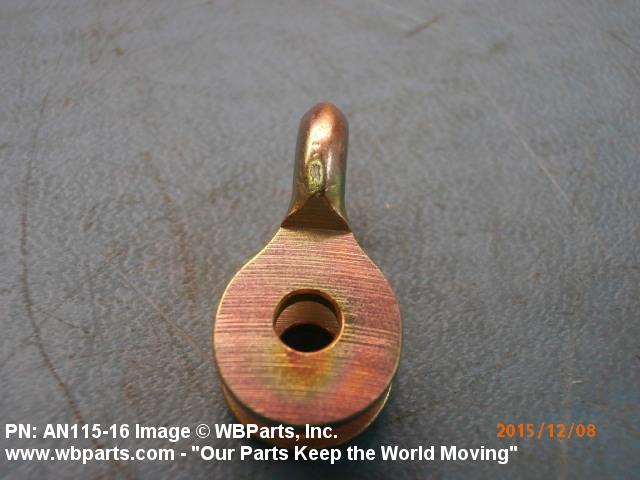

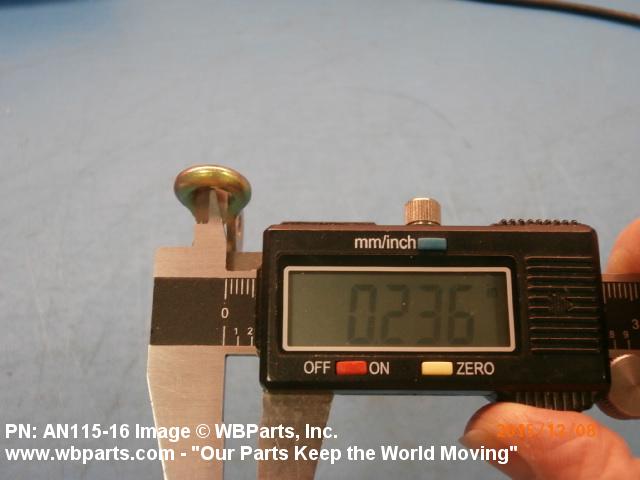

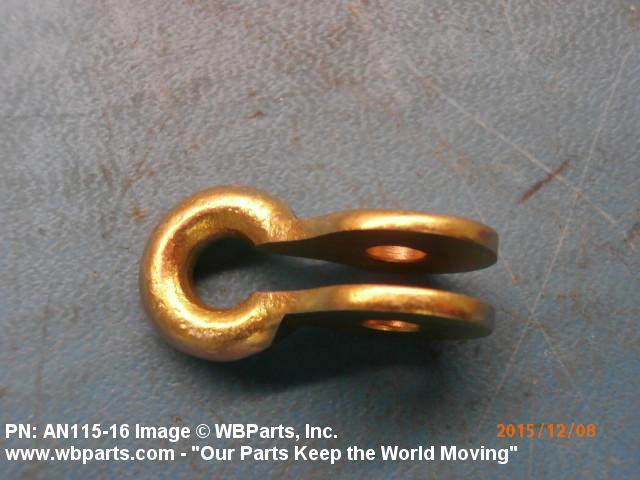

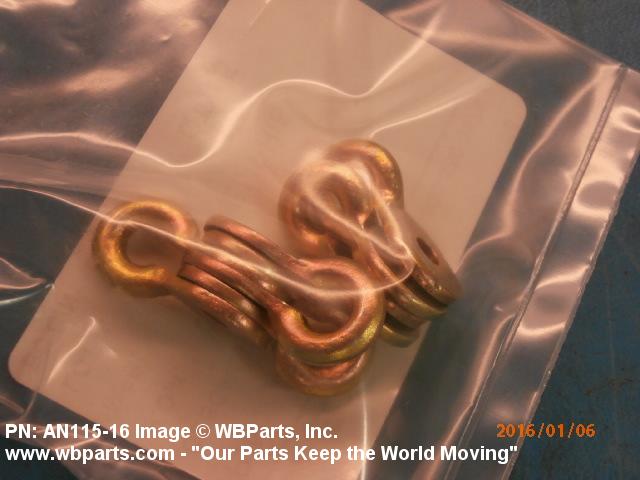

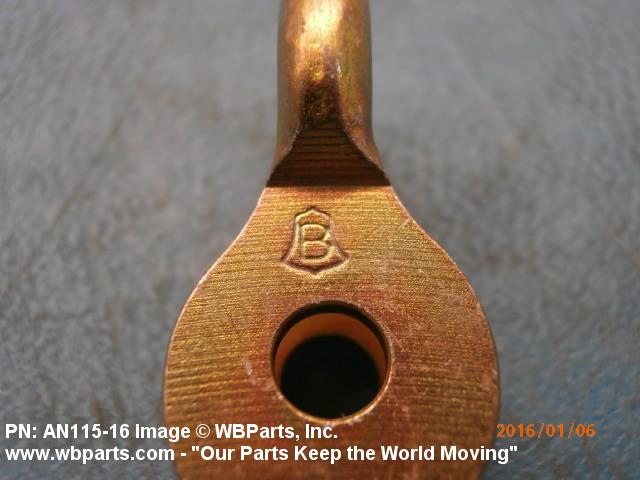

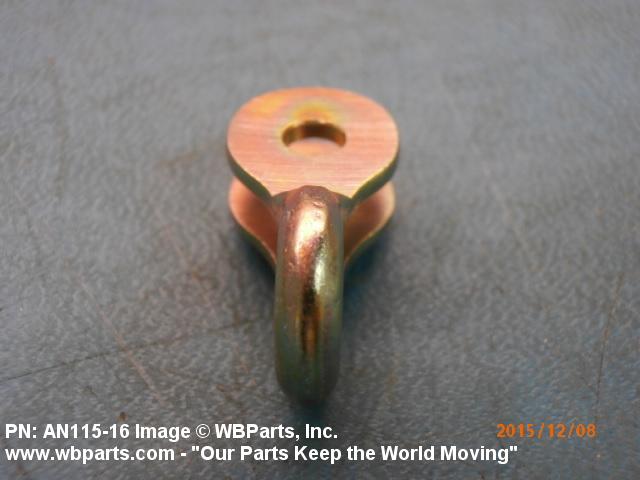

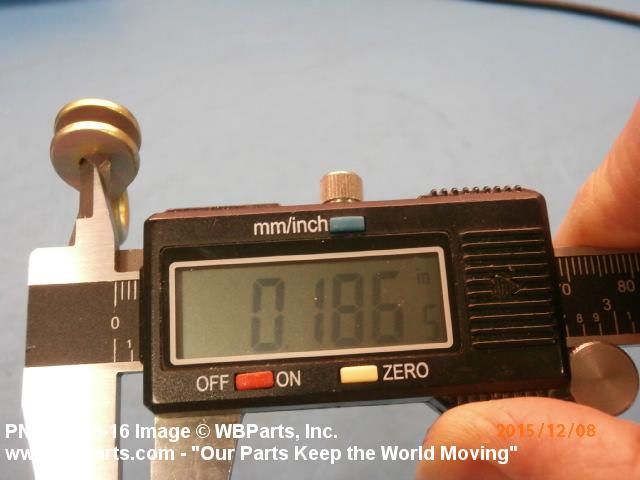

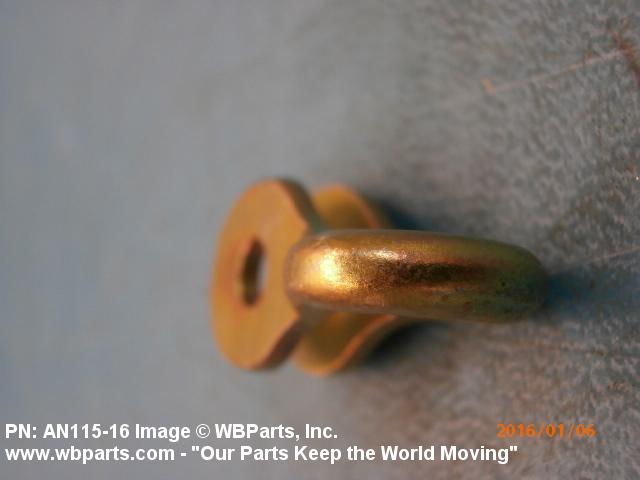

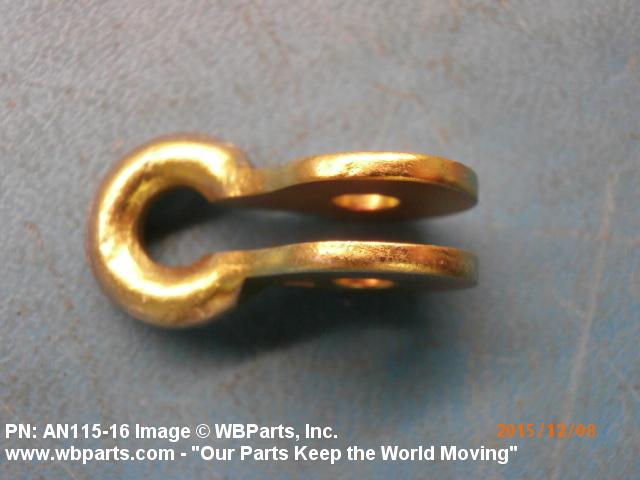

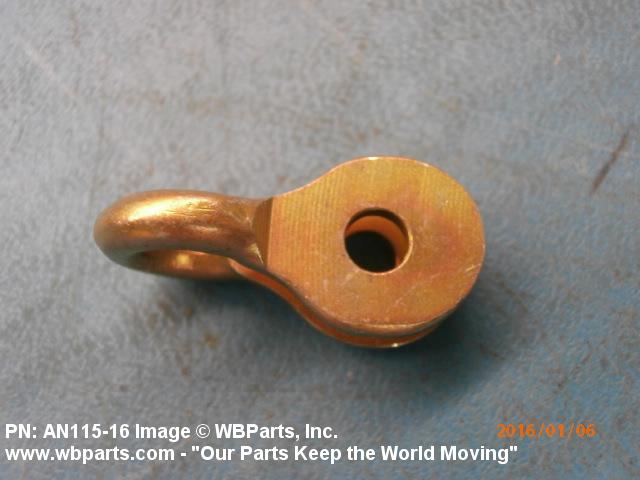

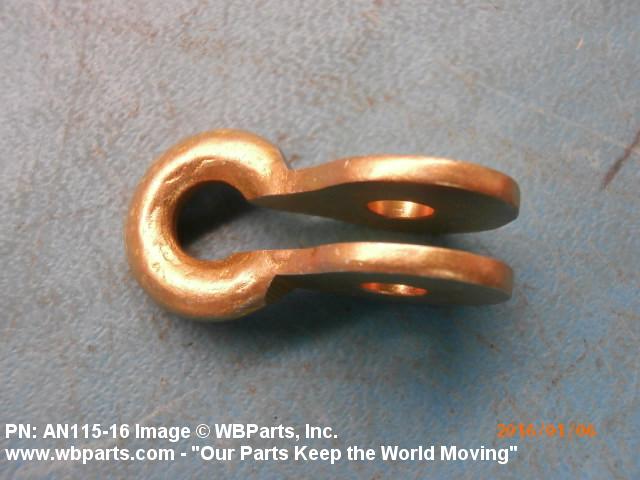

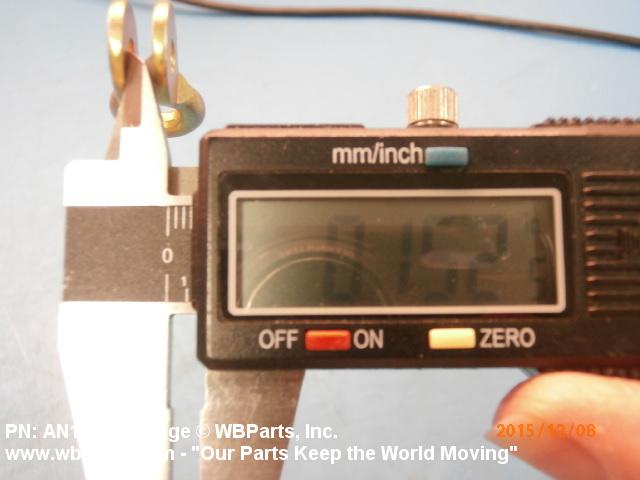

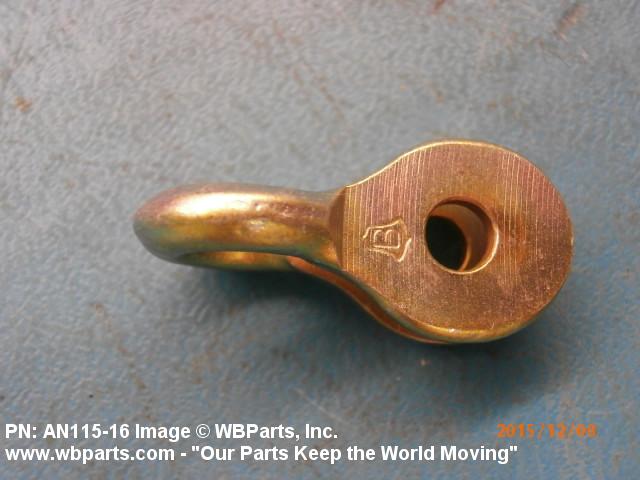

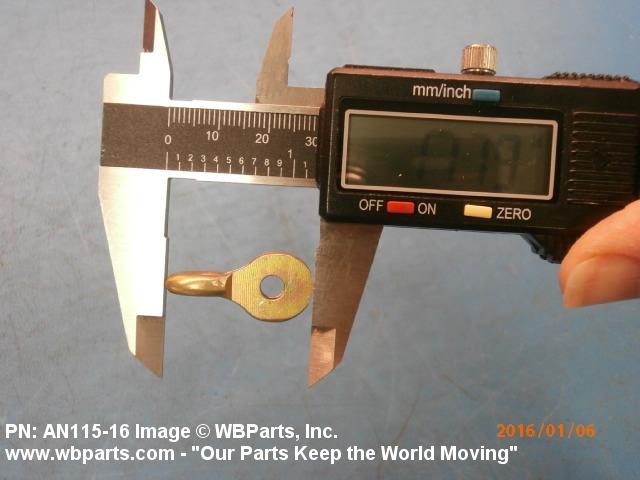

Drawings & Photos | NSN 4030-00-132-9153
Demand History | NSN 4030-00-132-9153
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN11516 | 2016-12-337 | 5 | United States |
| AN11516 | 2015-12-364 | 2 | United States |
| AN11516 | 2015-12-341 | 4 | United States |
| AN11516 | 2015-09-259 | 3 | United States |
Cross Reference | NSN 4030-00-132-9153
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN115-16 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-132-9153
Technical Data | NSN 4030-00-132-9153
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 127 WIRE ROPE |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL |
| MAJOR DIAMETER | 0.172 INCHES NOMINAL |
| OPENING WIDTH | 0.150 INCHES NOMINAL |
| LEG END THICKNESS | 0.081 INCHES NOMINAL |
| DISTANCE FROM BAIL CENTER TO HOLE CENTER | 0.172 INCHES NOMINAL |
| EYELET STYLE | 3 ROUND PLAIN |
| EYE INSIDE DIAMETER | 0.188 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN115-16 |
Restrictions/Controls & Freight Information | NSN 4030-00-132-9153
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
