NSN 4030-00-132-9139 AN115175, AN115-175, 00-132-9139
Product Details | SHACKLE

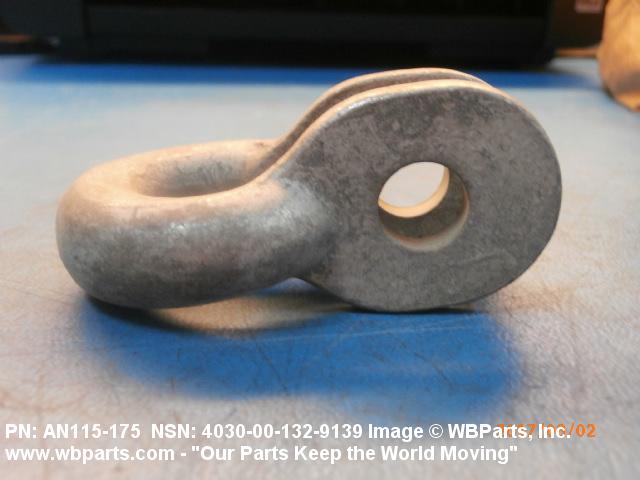

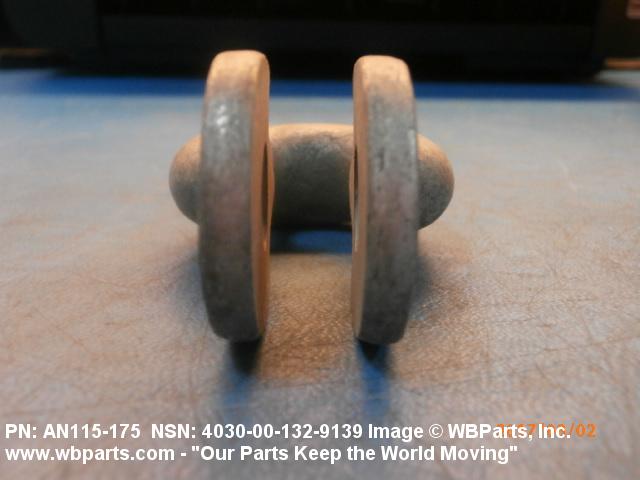

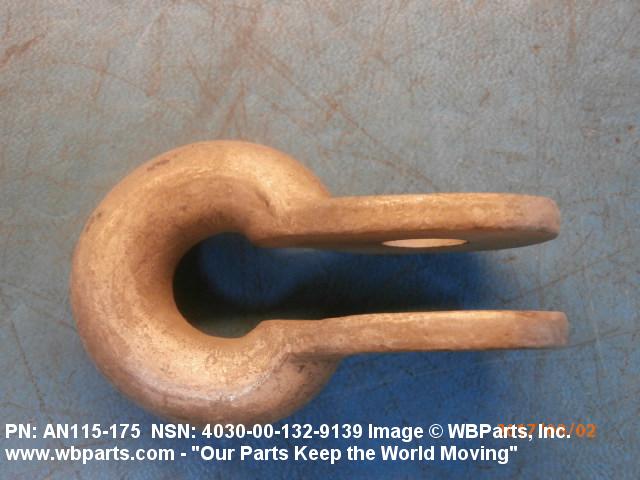

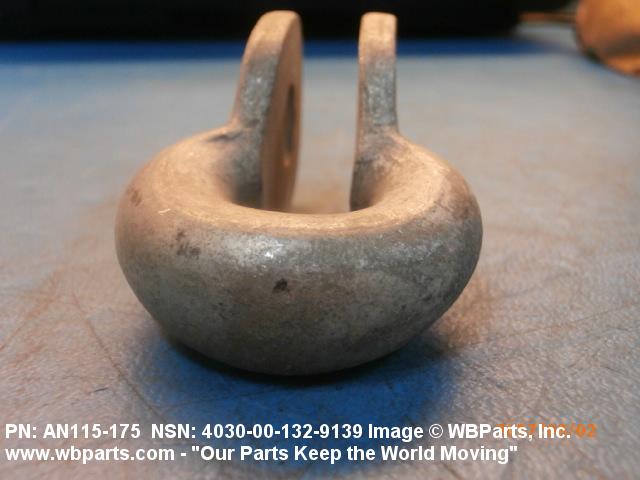

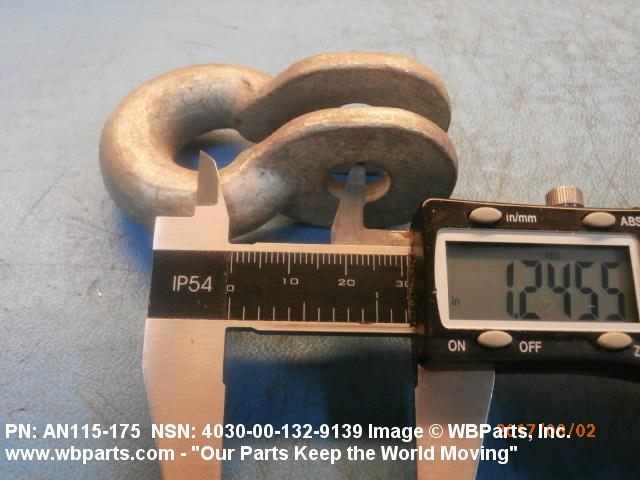

4030-00-132-9139 An open or closed link of various shapes with extended legs. Each leg has a transverse hole to accommodate a pin, bolt, or the like, which may or may not be furnished. Excludes clevis (as modified).
Part Alternates: AN115175, AN115-175, 4030-00-132-9139, 00-132-9139, 4030001329139, 001329139
Rope, Cable, Chain, and Fittings | Fittings for Rope, Cable, and Chain
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
40 | 01 JAN 1963 | 00-132-9139 | 11074 ( SHACKLE ) |
Demand History | NSN 4030-00-132-9139
Part Number | Request Date | QTY | Origin |
---|---|---|---|
4030-00-132-9139 | 2017-07-204 | 16 | United States |
4030-00-132-9139 | 2015-07-192 | 2 | US |
Cross Reference | NSN 4030-00-132-9139
Part Number | Cage Code | Manufacturer |
---|---|---|
AN115-175 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4030-00-132-9139
Related Products | NSN 4030-00-132-9139
Technical Data | NSN 4030-00-132-9139
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
SURFACE TREATMENT | ZINC |
STYLE DESIGNATOR | 127 WIRE ROPE |

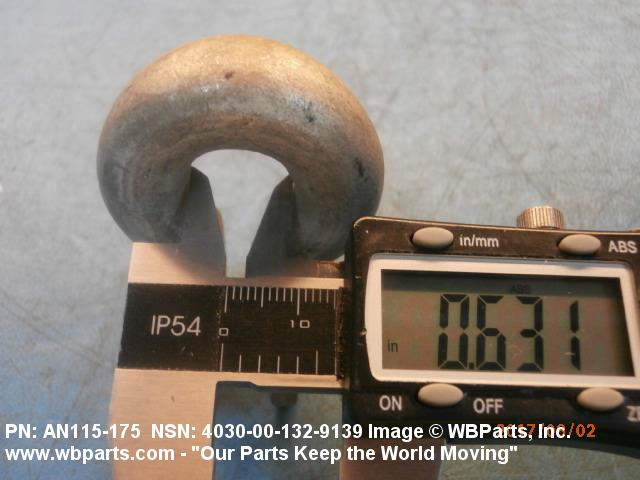

INSIDE DIAMETER | 0.625 INCHES NOMINAL |
MAJOR DIAMETER | 0.562 INCHES NOMINAL |

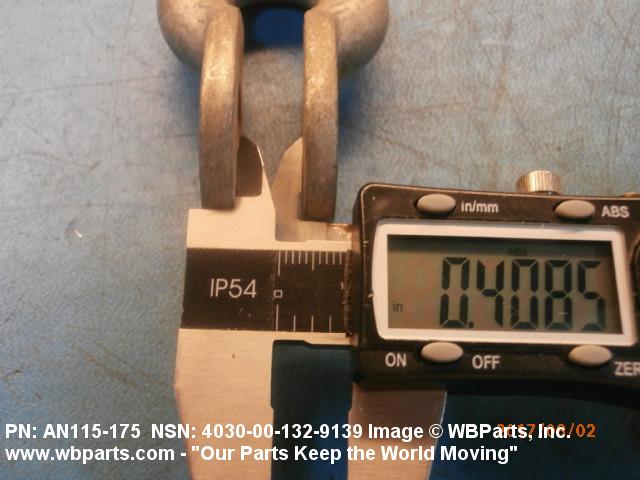

OPENING WIDTH | 0.406 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
MINOR DIAMETER | 0.562 INCHES NOMINAL |

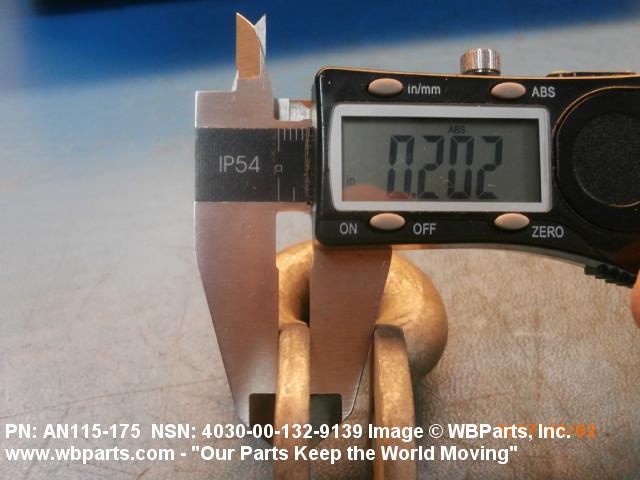

LEG END THICKNESS | 0.203 INCHES NOMINAL |
DISTANCE FROM BAIL CENTER TO HOLE CENTER | 1.250 INCHES NOMINAL |
EYELET STYLE | 3 ROUND PLAIN |

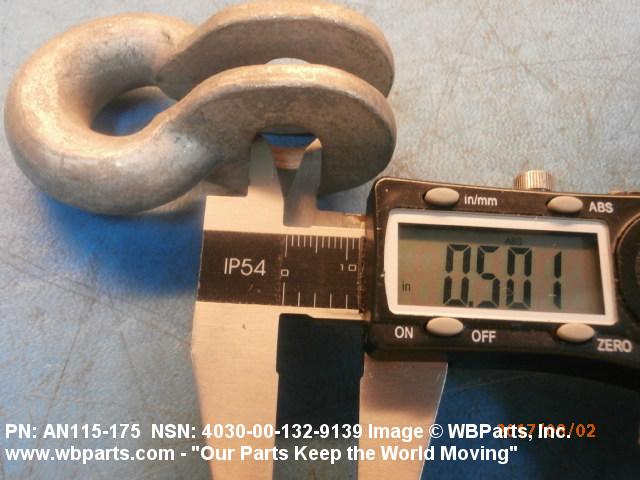

EYE INSIDE DIAMETER | 0.500 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
MANUFACTURERS CODE | 88044 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN115-175 |
Restrictions/Controls & Freight Information | NSN 4030-00-132-9139
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 105200 | FITTINGS CABLE/CHAIN/ROPE I/S |
Less than car load rating | U | 50 |
Less than truck load rating | U | 50.0 |
Water commodity Code | 576 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
