NSN 4010-01-523-9016 CL-11-KA-05.0 , CL11KA050, CL-11-SKA-05.0
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-523-9016 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: CL-11-KA-05.0 , CL11KA050, CL-11-SKA-05.0, CL11SKA050, ES3181, ES318106050R, ES3181-06-050R, 5623206050R, 56232-06-050R, 4010-01-523-9016, 01-523-9016, 4010015239016, 015239016
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 17 SEP 2004 | 01-523-9016 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |

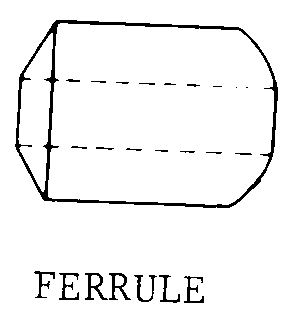

Drawings & Photos | NSN 4010-01-523-9016
Demand History | NSN 4010-01-523-9016
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-01-523-9016 | 2011-07-14 | 3 | DIBBS |
Cross Reference | NSN 4010-01-523-9016
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 56232-06-050R | 84256 | AVIBANK MFG., INC. |
| CL-11-KA-05.0 | 99862 | CARR LANE MANUFACTURING COMPANY DBA CARR LANE MANUFACTURING |
| ES3181 | 20418 | DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging |
| ES3181-06-050R | 20418 | DRS SUSTAINMENT SYSTEMS, INC. Use CAGE Code 98255 for cataloging |
| ES3181-06-050R | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
