NSN 4010-01-522-0251 90312A130, 01-522-0251, 015220251
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-522-0251 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 90312A130, 4010-01-522-0251, 01-522-0251, 4010015220251, 015220251
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 15 JUL 2004 | 01-522-0251 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-522-0251
Demand History | NSN 4010-01-522-0251
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 90312A332 | 2022-11-328 | 191 | DIBBS |
| M-GCNEE18 | 2022-11-328 | 191 | DIBBS |
| 4010-01-522-0251 | 2017-04-95 | 289 | DIBBS |
| 4010-01-522-0251 | 2013-03-78 | 191 | DIBBS |
| 4010-01-522-0251 | 2013-01-09 | 42 | DIBBS |
| 4010-01-522-0251 | 2011-09-259 | 35 | DIBBS |
| 4010-01-522-0251 | 2011-09-244 | 44 | DIBBS |
| 4010-01-522-0251 | 2010-10-279 | 18 | DIBBS |
| 4010-01-522-0251 | 2010-01-14 | 18 | DIBBS |
Cross Reference | NSN 4010-01-522-0251
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90312A130 | 2V507 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-01-522-0251
Technical Data | NSN 4010-01-522-0251
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL WIRE ROPE |
| SURFACE TREATMENT | PLASTIC WIRE ROPE |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |

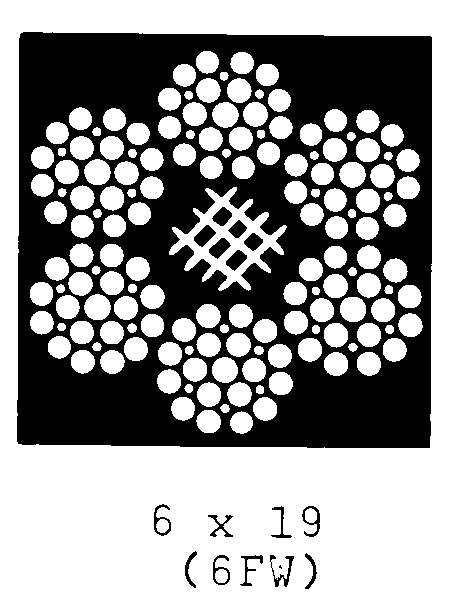

| STYLE DESIGNATOR | A116 6 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 1.500 FEET NOMINAL |
| DIAMETER | 0.046 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 80.0 POUNDS NOMINAL |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |
| ATTACHMENT STYLE | D183 SWAGING TERMINAL BOTH ENDS |
| SPECIAL FEATURES | OVERALL DIAMETER WITH PLASTIC-NYLON COATING IS 1/16 INCHES. GALVANIZED STEEL WIRE. |
| III END ITEM IDENTIFICATION | APX |
Restrictions/Controls & Freight Information | NSN 4010-01-522-0251
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094050 | CHAINS NOI I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-522-0251
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
