NSN 4010-01-520-8989 BACC13Y3B120, 01-520-8989, 015208989
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-520-8989 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: BACC13Y3B120, 4010-01-520-8989, 01-520-8989, 4010015208989, 015208989
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JUN 2004 | 01-520-8989 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-520-8989
Cross Reference | NSN 4010-01-520-8989
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACC13Y3B120 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-01-520-8989
Technical Data | NSN 4010-01-520-8989
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING TERMINAL ATTACHMENT FIRST END PLASTIC POLYAMIDE STRAND COVERING STEEL CORROSION RESISTING WIRE ROPE |
| CORE CONSTRUCTION | WIRE |

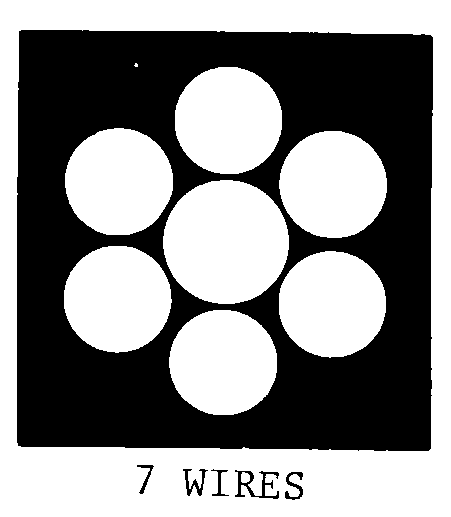

| STYLE DESIGNATOR | B2 7 WIRES |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 0.500 FEET NOMINAL |
| DIAMETER | 0.047 INCHES NOMINAL STRAND |
| BREAKING STRENGTH | 75.0 POUNDS NOMINAL |
| PROOF TEST LOAD | 100.000 POUNDS |
| END TYPE | PLAIN SECOND END LOOP TERMINAL ATTACHMENT FIRST END |
| END CONDITIONING METHOD | SHEAR CUT |
| LOOP RETENTION METHOD | SWAGE |
| SPECIAL FEATURES | 0.062 INCH DIAMETER AFTER STRAND COVERING |
Restrictions/Controls & Freight Information | NSN 4010-01-520-8989
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
