Product Details | SINGLE LEG WIRE ROPE ASSEMBLY

4010-01-449-8236 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.

Part Alternates: LS5974E100316, LS5974E10-0316, 4010-01-449-8236, 01-449-8236, 4010014498236, 014498236

Rope, Cable, Chain, and Fittings | Chain and Wire Rope

Supply Group (FSG) NSN Assign. NIIN
40 16 OCT 1997 01-449-8236

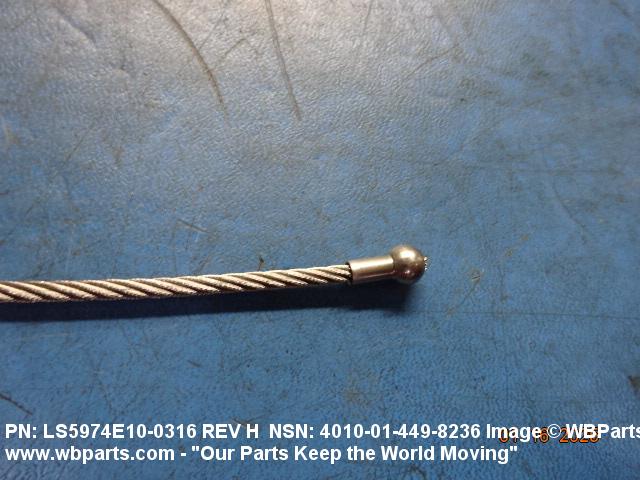

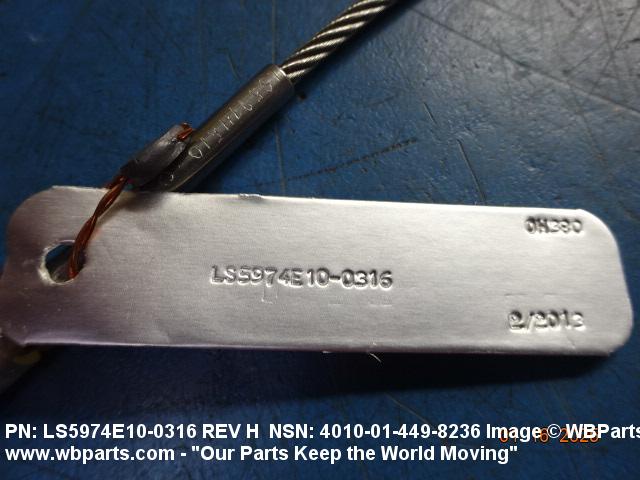

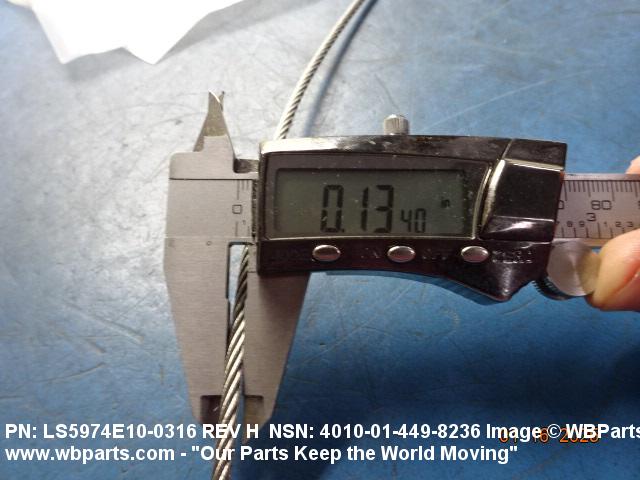

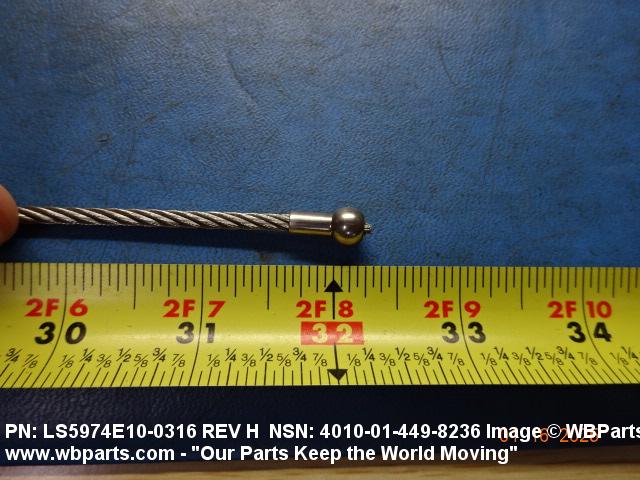

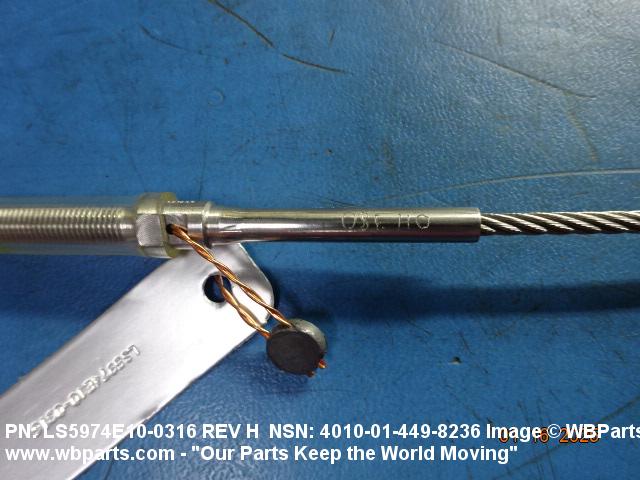

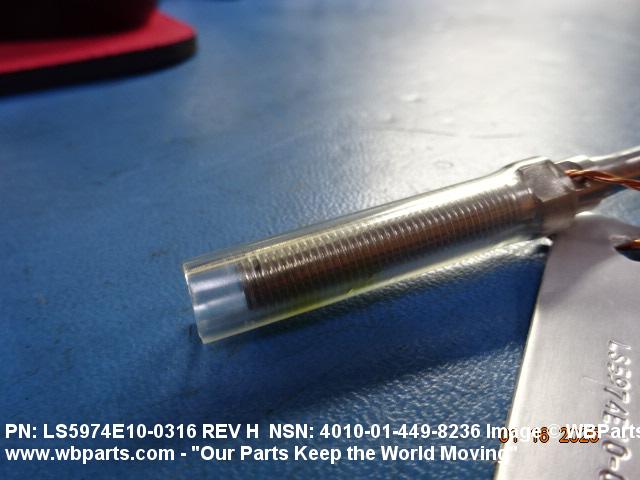

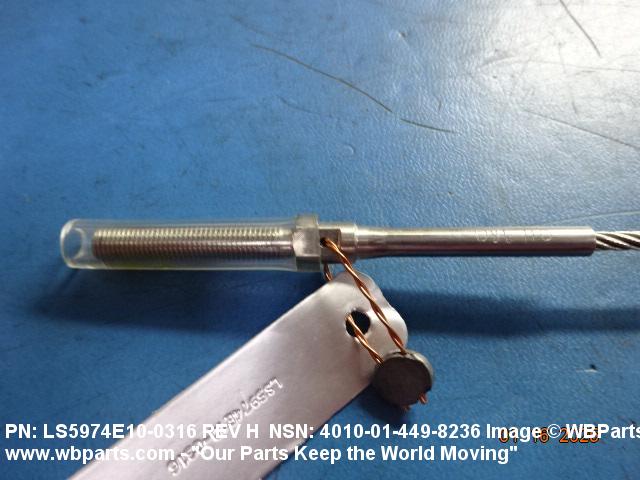

Drawings & Photos | NSN 4010-01-449-8236


Cross Reference | NSN 4010-01-449-8236

Part Number Cage Code Manufacturer
LS5974E10-0316 98897 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4010-01-449-8236

Technical Data | NSN 4010-01-449-8236

Characteristic Specifications
MATERIAL STEEL CORROSION RESISTING WIRE ROPE
CORE CONSTRUCTION WIRE
STYLE DESIGNATOR A124 7 X 19
OVERALL LENGTH 3.333 FEET NOMINAL
DIAMETER 0.125 INCHES NOMINAL ROPE
END TYPE TERMINAL ATTACHMENT 1ST INTERMEDIATE ATTACHMENT TERMINAL ATTACHMENT 2ND INTERMEDIATE ATTACHMENT
ATTACHMENT STYLE D2 SINGLE SHANK 1ST INTERMEDIATE ATTACHMENT D181 STUD TERMINAL 2ND INTERMEDIATE ATTACHMENT

Restrictions/Controls & Freight Information | NSN 4010-01-449-8236

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
