NSN 4010-01-390-0305 6213384, 01-390-0305, 013900305
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-390-0305 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 6213384, 4010-01-390-0305, 01-390-0305, 4010013900305, 013900305
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 10 MAY 1994 | 01-390-0305 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-390-0305
Demand History | NSN 4010-01-390-0305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-01-390-0305 | 2021-08-236 | 9 | DIBBS |
| 4010-01-390-0305 | 2021-03-63 | 1 | US |
| 4010-01-390-0305 | 2021-03-60 | 169 | US |
| 4010-01-390-0305 | 2020-09-261 | 13 | DIBBS |
| 4010-01-390-0305 | 2019-06-178 | 2 | us |
| 4010-01-390-0305 | 2019-06-174 | 28 | DIBBS |
| 4010-01-390-0305 | 2018-08-219 | 25 | DIBBS |
| 4010-01-390-0305 | 2012-07-187 | 71 | DIBBS |
| 4010-01-390-0305 | 2012-03-75 | 44 | DIBBS |
| 4010-01-390-0305 | 2012-01-19 | 38 | DIBBS |
| 4010-01-390-0305 | 2011-12-348 | 38 | DIBBS |
| 4010-01-390-0305 | 2010-04-92 | 13 | DIBBS |
| 4010-01-390-0305 | 2010-03-63 | 4 | DIBBS |
| 4010-01-390-0305 | 2010-01-19 | 26 | DIBBS |
| 4010-01-390-0305 | 2009-11-317 | 14 | DIBBS |
| 4010-01-390-0305 | 2008-10-280 | 9 | DIBBS |
Cross Reference | NSN 4010-01-390-0305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6213384 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-390-0305
Related Products | NSN 4010-01-390-0305
Technical Data | NSN 4010-01-390-0305
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CORE CONSTRUCTION | WIRE |

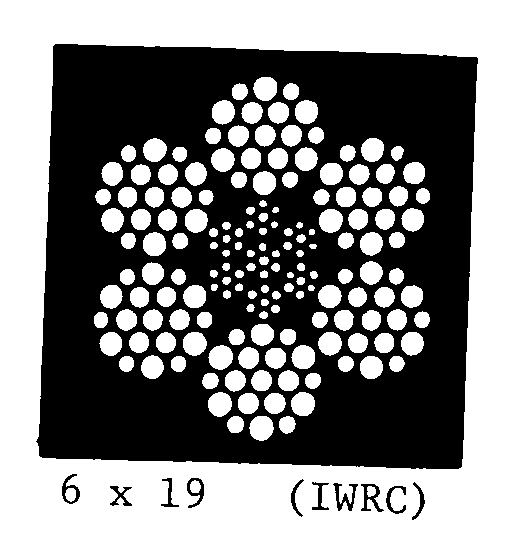

| STYLE DESIGNATOR | A53 6 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 30.000 FEET NOMINAL |
| DIAMETER | 0.312 INCHES NOMINAL ROPE |
| PROOF TEST LOAD | 3750.000 POUNDS |
| END TYPE | LOOP FIRST END TERMINAL ATTACHMENT SECOND END |
| LOOP RETENTION METHOD | SWAGE |
| THIMBLE QUANTITY | 1 FIRST END |
| SPECIAL FEATURES | IDENTIFICATION TAG ATTACHED ON LOOPED END |
Restrictions/Controls & Freight Information | NSN 4010-01-390-0305
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 053390 | CORD/CORDAGE/ROPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 709 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-390-0305
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
