NSN 4010-01-237-1753 12297780-3, 01-237-1753, 122977803
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-237-1753 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 12297780-3, 4010-01-237-1753, 01-237-1753, 4010012371753, 122977803, 012371753
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 26 JUL 1986 | 01-237-1753 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-237-1753
Demand History | NSN 4010-01-237-1753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-01-237-1753 | 2024-05-142 | 71 | DIBBS |
| 4010-01-237-1753 | 2023-12-362 | 24 | DIBBS |
| 4010-01-237-1753 | 2023-12-354 | 24 | DIBBS |
Cross Reference | NSN 4010-01-237-1753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12297780-3 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-237-1753
Related Products | NSN 4010-01-237-1753
Technical Data | NSN 4010-01-237-1753
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 TERMINAL ATTACHMENT FIRST END STEEL COMP 302 OR STEEL COMP 304 WIRE ROPE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-423 FED SPEC ALL MATERIAL RESPONSES TERMINAL ATTACHMENT FIRST END MIL-W-83420,COMP B,TY 1 OR TY 2 MIL SPEC ALL MATERIAL RESPONSES WIRE ROPE |
| SURFACE TREATMENT | PLASTIC POLYAMIDE WIRE ROPE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-W-83420 MIL SPEC SINGLE TREATMENT RESPONSE WIRE ROPE |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
| STYLE DESIGNATOR | A120 7 X 7 |
| LAY METHOD | RIGHT REGULAR OUTER LAYER |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 0.500 FEET NOMINAL |
| DIAMETER | 0.062 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 480.0 POUNDS MINIMUM |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |

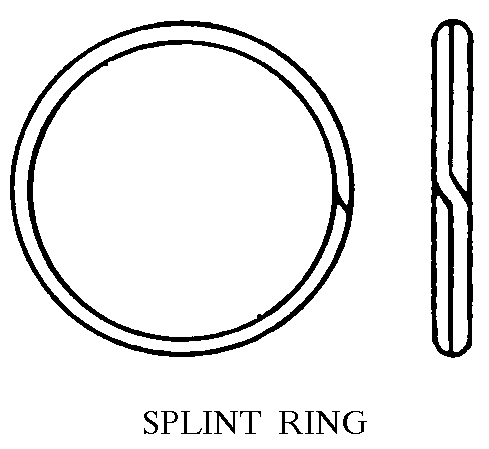

| ATTACHMENT STYLE | D106 SPLIT RING TERMINAL ATTACHMENT FIRST END D312 TAPERED TERMINAL ATTACHMENT SECOND END |
| FURNISHED ITEMS AND QUANTITY | 1 PIN |
| SPECIAL FEATURES | TYPE 1 WIRE ROPE VINYL COATED PER MIL-I-631,TYPE F,FORM U,GRADE A,CLASS 1,CATEGORY 1 |
Restrictions/Controls & Freight Information | NSN 4010-01-237-1753
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107520 | WIRE ROPE/STRAND I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-237-1753
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
