NSN 4010-01-182-8274 13220E10302, 13220E1030-2, 01-182-8274
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-182-8274 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 13220E10302, 13220E1030-2, 4010-01-182-8274, 01-182-8274, 4010011828274, 011828274
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 28 JUN 1984 | 01-182-8274 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-182-8274
Cross Reference | NSN 4010-01-182-8274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13220E1030-2 | 97403 | CECOM LR CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-01-182-8274
Related Products | NSN 4010-01-182-8274
Technical Data | NSN 4010-01-182-8274
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL IMPROVED PLOW OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | RR-W-410,TYPE 1,CL 2 FED STD ALL MATERIAL RESPONSES OVERALL |
| CORE CONSTRUCTION | WIRE |
| STYLE DESIGNATOR | A57 6 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | STRAIGHT OR PREFORMED |
| OVERALL LENGTH | 5.188 FEET NOMINAL |
| DIAMETER | 1.000 INCHES NOMINAL STOCK |
| BREAKING STRENGTH | 38000.0 POUNDS NOMINAL |
| PROOF TEST LOAD | 7600.000 POUNDS |
| END TYPE | LOOP FIRST END TERMINAL ATTACHMENT SECOND END |

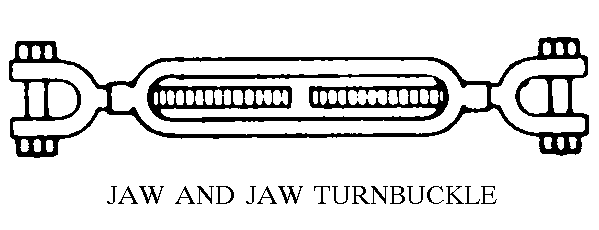

| ATTACHMENT STYLE | D211 JAW AND JAW TURNBUCKLE SECOND END |
| FIRST END TO FIRST FIXED INTERMEDIATE ATTACHMENT DISTANCE | 50.250 INCHES NOMINAL |
| LOOP RETENTION METHOD | SWAGE |
| THIMBLE STYLE | E7 OVAL FIRST END |
| THIMBLE QUANTITY | 1 FIRST END |
| LOOP INSIDE LENGTH | 3.250 INCHES NOMINAL FIRST END |
| LOOP INSIDE WIDTH | 0.406 INCHES NOMINAL FIRST END |
| III END ITEM IDENTIFICATION | USE ON CRADLE,BOAT,ALUMINUM-NSN 2090-00-348-8138 |
