NSN 4010-01-113-5287 S26031258272, S2603-1258272, 01-113-5287
Product Details | END CHAIN LINK
4010-01-113-5287 A metal loop in various shapes and styles other than circular, forged or welded in one piece, usually used on the end of an item for attaching other parts. May also be used with thimble(s) or shackle(s) on the end of wire or fiber rope. Excludes LINK, CHAIN CONNECTING; and LINK, CHAIN, LAP.
Part Alternates: S26031258272, S2603-1258272, 4010-01-113-5287, 01-113-5287, 4010011135287, 011135287
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 29 MAY 1981 | 01-113-5287 | 05499 ( LINK, CHAIN, END ) |
Drawings & Photos | NSN 4010-01-113-5287
Cross Reference | NSN 4010-01-113-5287
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S2603-1258272 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-01-113-5287
Technical Data | NSN 4010-01-113-5287
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8637 |

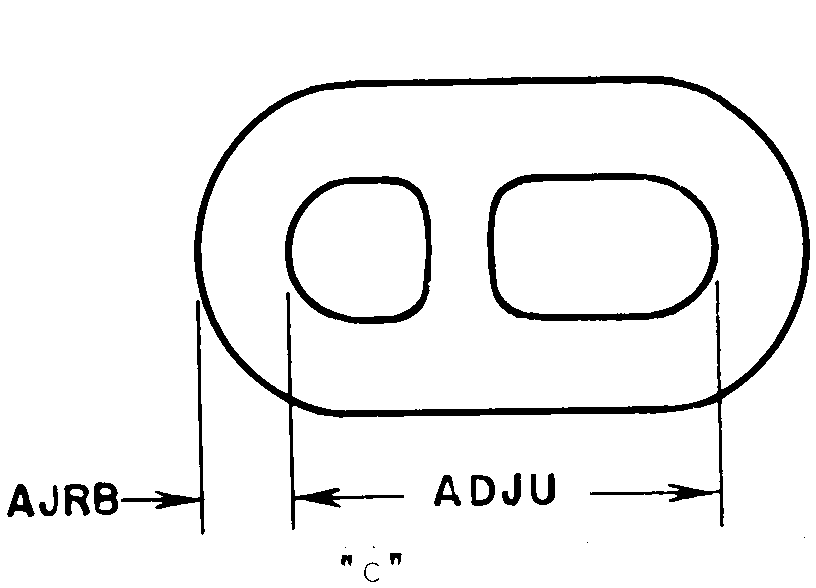

| STYLE DESIGNATOR | 241 C |
| INSIDE LENGTH | 17.000 INCHES NOMINAL |
| MATERIAL DIAMETER | 4.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | S2603-1258272 |
Restrictions/Controls & Freight Information | NSN 4010-01-113-5287
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-113-5287
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
