NSN 4010-00-074-2741 NAS104920, NAS1049-20, 00-074-2741
Product Details | END CHAIN LINK
4010-00-074-2741 A metal loop in various shapes and styles other than circular, forged or welded in one piece, usually used on the end of an item for attaching other parts. May also be used with thimble(s) or shackle(s) on the end of wire or fiber rope. Excludes LINK, CHAIN CONNECTING; and LINK, CHAIN, LAP.
Part Alternates: NAS104920, NAS1049-20, 4010-00-074-2741, 00-074-2741, 4010000742741, 000742741
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 29 JUL 1967 | 00-074-2741 | 05499 ( LINK, CHAIN, END ) |

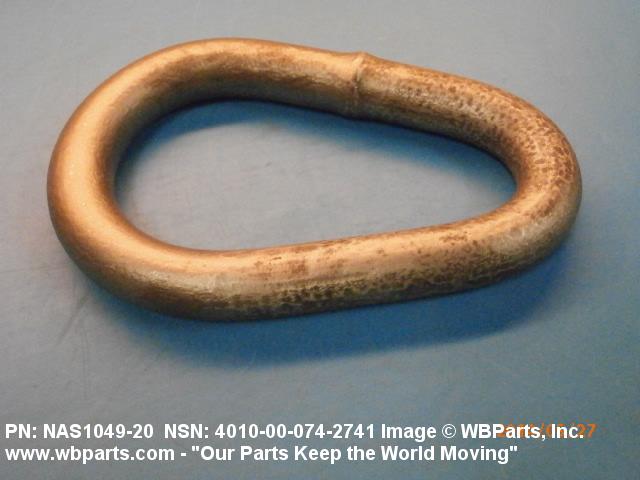

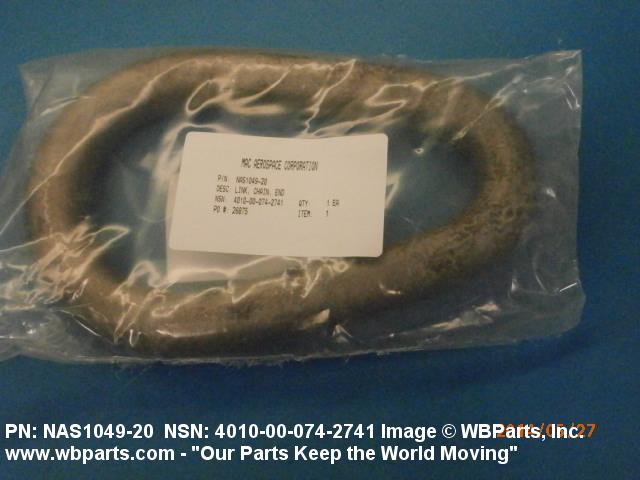

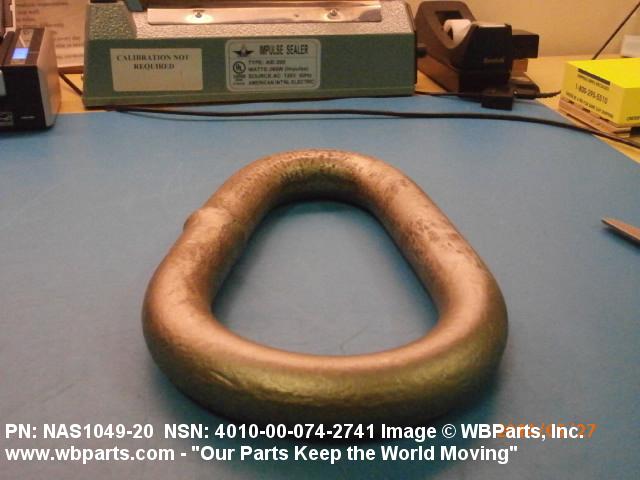

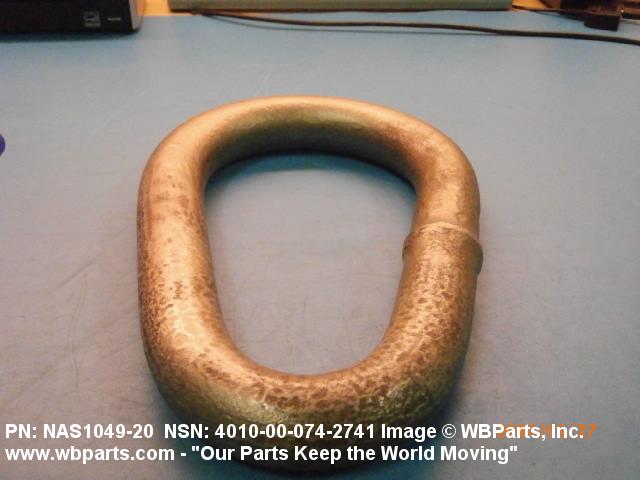

Drawings & Photos | NSN 4010-00-074-2741
Demand History | NSN 4010-00-074-2741
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4010-00-074-2741 | 2018-10-288 | 1 | United States |
| 4010-00-074-2741 | 2017-10-276 | 48 | DIBBS |
| 4010-00-074-2741 | 2015-09-251 | 9 | DIBBS |
| 4010-00-074-2741 | 2015-03-76 | 7 | DIBBS |
| 4010-00-074-2741 | 2015-03-68 | 7 | DIBBS |
| 4010-00-074-2741 | 2014-12-337 | 7 | DIBBS |
| 4010-00-074-2741 | 2014-05-148 | 1 | DIBBS |
| 4010-00-074-2741 | 2014-05-140 | 1 | DIBBS |
| NAS104920 | 2014-05-136 | 1 | United States |
| 4010-00-074-2741 | 2014-05-132 | 1 | DIBBS |
Cross Reference | NSN 4010-00-074-2741
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1049-20 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4010-00-074-2741
Related Products | NSN 4010-00-074-2741
Technical Data | NSN 4010-00-074-2741
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 252 PEAR SHAPED |

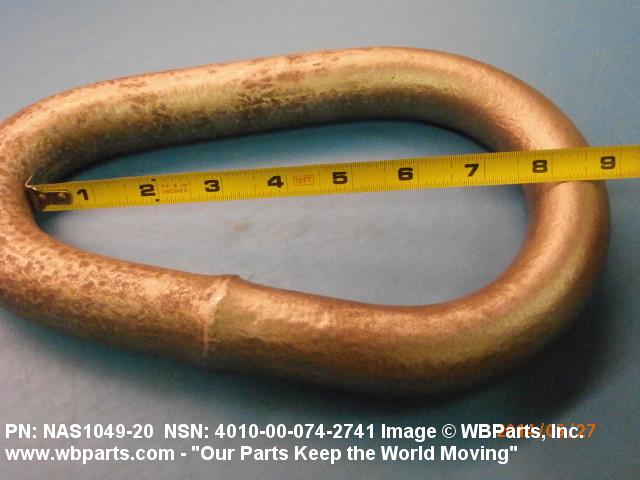

| INSIDE LENGTH | 8.000 INCHES NOMINAL |

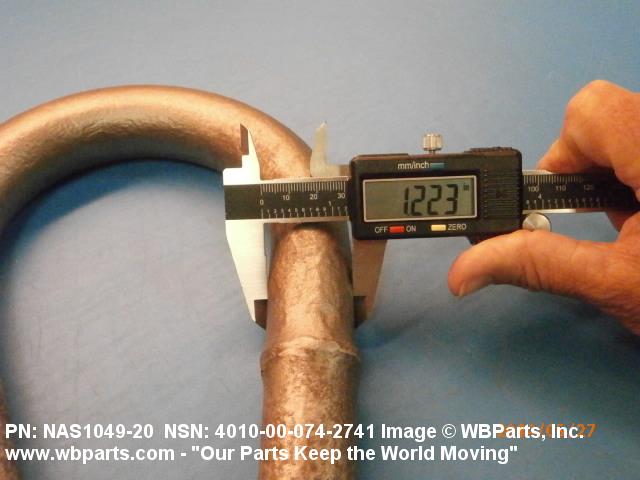

| MATERIAL DIAMETER | 1.250 INCHES NOMINAL |

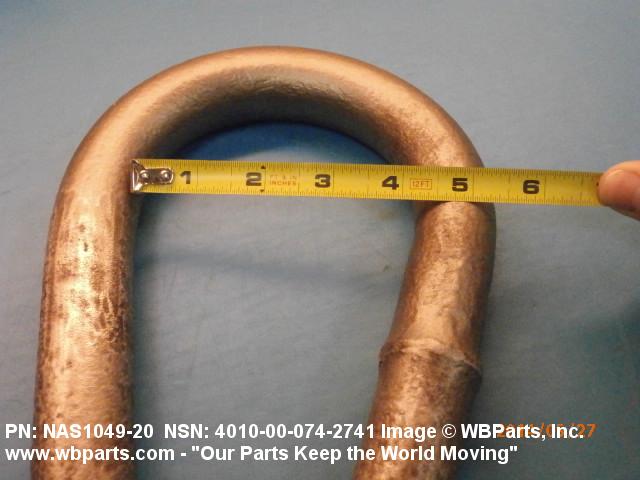

| MAJOR INSIDE WIDTH | 4.000 INCHES NOMINAL |
| MINOR INSIDE WIDTH | 2.000 INCHES NOMINAL |
| SAFE OPERATING LOAD RATING | 33.000 POUNDS MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1049 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4010-00-074-2741
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-00-074-2741
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
