NSN 4010-01-094-6833 CESO9117, CESO-9117, 01-094-6833
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-094-6833 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: CESO9117, CESO-9117, 4010-01-094-6833, 01-094-6833, 4010010946833, 010946833
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 14 MAY 1980 | 01-094-6833 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-094-6833
Cross Reference | NSN 4010-01-094-6833
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CESO-9117 | 80091 | NAVAL FACILITIES ENGINEERING COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-01-094-6833
Technical Data | NSN 4010-01-094-6833
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1030 OR STEEL IMPROVED PLOW WIRE ROPE |
| MATERIAL DOCUMENT AND CLASSIFICATION | RR-W-410 FED SPEC SINGLE MATERIAL RESPONSE WIRE ROPE |
| CORE CONSTRUCTION | INDEPENDENT WIRE ROPE |
| STYLE DESIGNATOR | A61 6 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 10.000 FEET NOMINAL |
| DIAMETER | 0.875 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 120000.0 POUNDS NOMINAL |
| END TYPE | TERMINAL ATTACHMENT WIRE ROPE |
| END CONDITIONING METHOD | SEIZED AND WELDED |

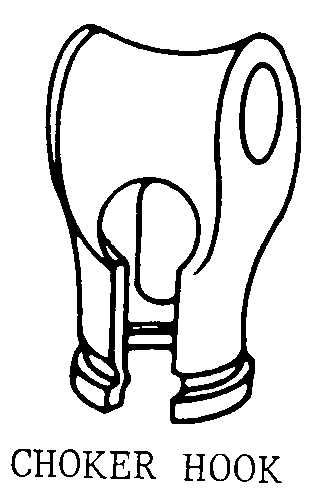

| ATTACHMENT STYLE | D50 CHOKER HOOK TERMINAL ATTACHMENT FIRST END D50 CHOKER HOOK TERMINAL ATTACHMENT SECOND END |
| LOOP RETENTION METHOD | SWAGE |
| SPECIAL FEATURES | WIRE ROPE IAW RR-W-410,TYPE-I,CLASS-2,TABLE-XI, SLEEVES IAW MIL-F-52553,TYPE-I,SLIDING CHOKER HOOK IAW MIL-H-13220 EXCEPT MIN BREAKING STR OF 75000 LBS,WIRE SOFT LOOPS AT EACH END 12 IN. |
Restrictions/Controls & Freight Information | NSN 4010-01-094-6833
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107520 | WIRE ROPE/STRAND I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | JN | Naval Facilities Expeditionary Logistics Center Port Hueneme, CA 93043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4010-01-094-6833
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
