NSN 4010-01-058-8526 01-058-8526, 010588526
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-01-058-8526 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 4010-01-058-8526, 01-058-8526, 4010010588526, 010588526
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01-058-8526 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-01-058-8526
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-01-058-8526
Technical Data | NSN 4010-01-058-8526
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303SE OR STEEL COMP 305 ALL ATTACHMENTS STEEL WIRE ROPE STEEL CORE |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES ALL ATTACHMENTS MIL-W-83420 MIL SPEC SINGLE MATERIAL RESPONSE WIRE ROPE MIL-W-83420 MIL SPEC SINGLE MATERIAL RESPONSE CORE |
| SURFACE TREATMENT | PASSIVATE ALL ATTACHMENTS ZINC OR TIN OR ZINC AND TIN WIRE ROPE |
| CORE CONSTRUCTION | WIRE |
| STYLE DESIGNATOR | A124 7 X 19 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 2.283 FEET NOMINAL |
| DIAMETER | 0.125 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 2000.000 POUNDS MINIMUM |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |

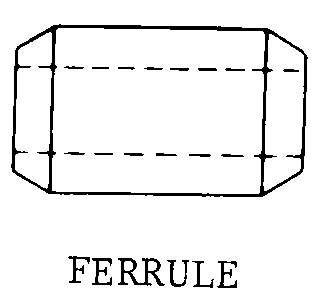

| ATTACHMENT STYLE | D6 FERRULE TERMINAL ATTACHMENT FIRST END D6 FERRULE TERMINAL ATTACHMENT SECOND END |
Restrictions/Controls & Freight Information | NSN 4010-01-058-8526
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
