NSN 4010-00-905-9870 MS3525211, MS35252-11, RRW410
Product Details | END CHAIN LINK
4010-00-905-9870 A metal loop in various shapes and styles other than circular, forged or welded in one piece, usually used on the end of an item for attaching other parts. May also be used with thimble(s) or shackle(s) on the end of wire or fiber rope. Excludes LINK, CHAIN CONNECTING; and LINK, CHAIN, LAP.
Part Alternates: MS3525211, MS35252-11, RRW410, RR-W-410, RRW410I2, RR-W-410-I2, 4010-00-905-9870, 00-905-9870, 4010009059870, 009059870
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 00-905-9870 | 05499 ( LINK, CHAIN, END ) |

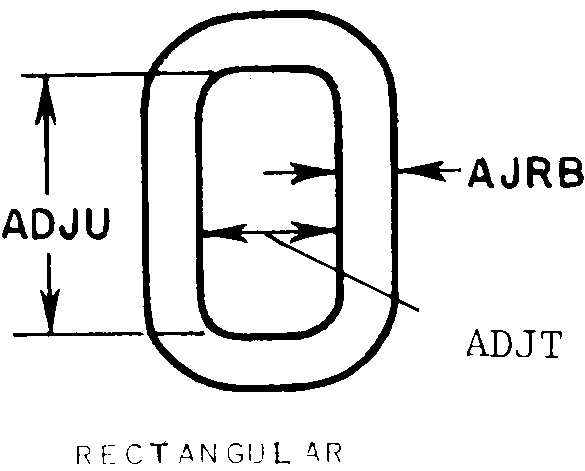

Drawings & Photos | NSN 4010-00-905-9870
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-905-9870
Technical Data | NSN 4010-00-905-9870
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-461 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | 253 RECTANGULAR |
| INSIDE WIDTH | 0.375 INCHES NOMINAL |
| INSIDE LENGTH | 1.062 INCHES NOMINAL |
| MATERIAL DIAMETER | 0.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RR-W-410 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RR-W-410-I2 |
Restrictions/Controls & Freight Information | NSN 4010-00-905-9870
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
