NSN 4010-00-901-5608 1560100301, 1560100-301, 00-901-5608
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-901-5608 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: 1560100301, 1560100-301, 4010-00-901-5608, 00-901-5608, 4010009015608, 009015608
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 08 FEB 1967 | 00-901-5608 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |

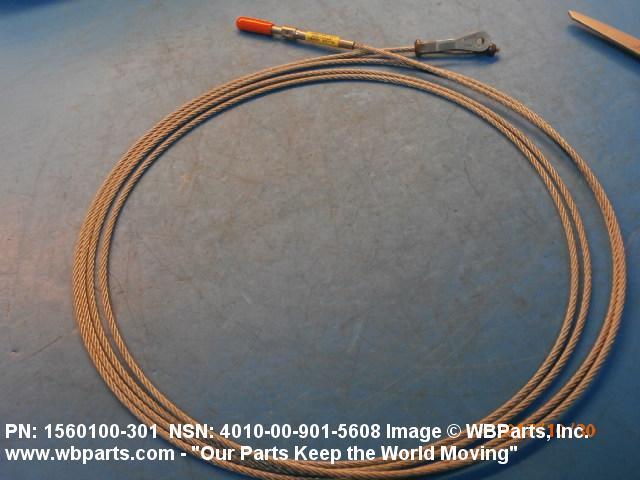

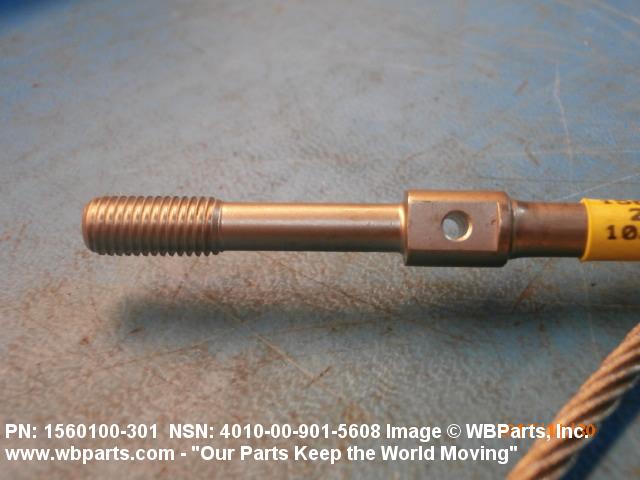

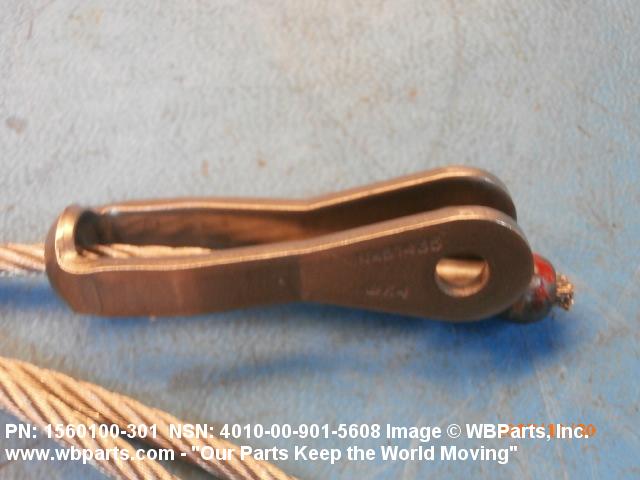

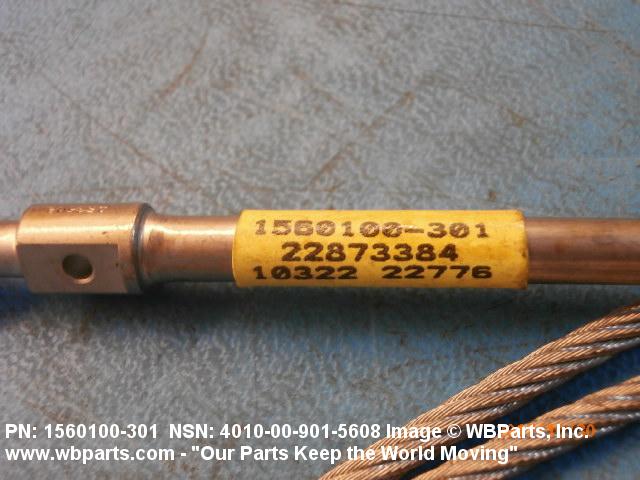

Drawings & Photos | NSN 4010-00-901-5608
Demand History | NSN 4010-00-901-5608
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1560100301 | 2017-09-268 | 1 | Thailand |
Cross Reference | NSN 4010-00-901-5608
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1560100-301 | 71379 | CESSNA AIRCRAFT COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-901-5608
Technical Data | NSN 4010-00-901-5608
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A124 7 X 19 |

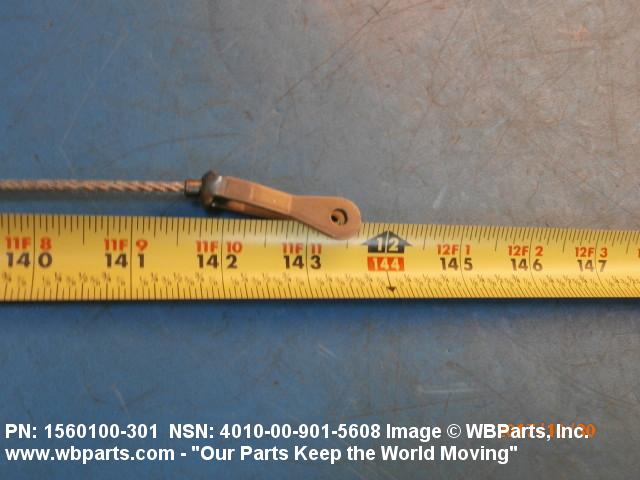

| OVERALL LENGTH | 11.927 FEET NOMINAL |

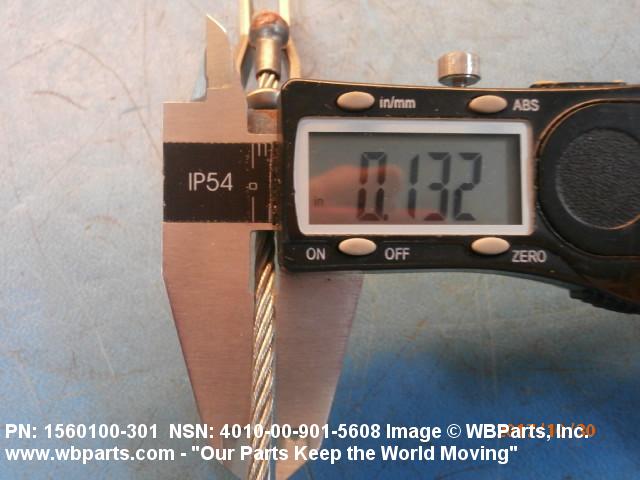

| DIAMETER | 0.125 INCHES NOMINAL ROPE |
| BREAKING STRENGTH | 1056.000 POUNDS NOMINAL |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |
| MANUFACTURERS CODE | 71379 |
| DESIGN CONTROL REFERENCE | 1560100-301 |
Restrictions/Controls & Freight Information | NSN 4010-00-901-5608
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107520 | WIRE ROPE/STRAND I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
