NSN 4010-00-386-2864 D734, 00-386-2864, 003862864
Product Details | SINGLE LEG WIRE ROPE ASSEMBLY
4010-00-386-2864 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.
Part Alternates: D734, 4010-00-386-2864, 00-386-2864, 4010003862864, 003862864
Rope, Cable, Chain, and Fittings | Chain and Wire Rope
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 40 | 01 JAN 1961 | 00-386-2864 | 09764 ( WIRE ROPE ASSEMBLY, SINGLE LEG ) |
Drawings & Photos | NSN 4010-00-386-2864
Demand History | NSN 4010-00-386-2864
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| D734 | 2011-09-259 | 1 | US |
| D734 | 2010-07-189 | 1 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4010-00-386-2864
Technical Data | NSN 4010-00-386-2864
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL ALL ATTACHMENTS STEEL WIRE ROPE |
| CORE CONSTRUCTION | FIBER |

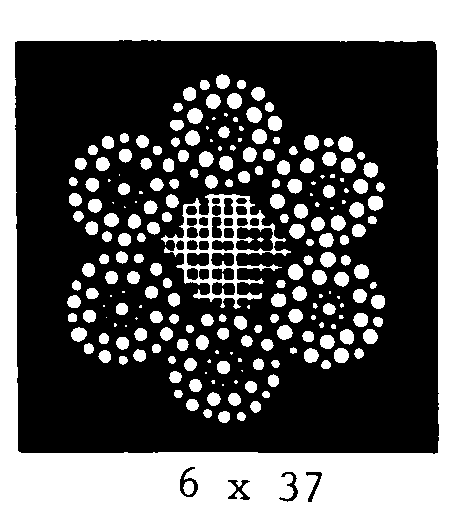

| STYLE DESIGNATOR | A93 6 X 37 |
| LAY METHOD | RIGHT REGULAR ALL LAYERS |
| PREFABRICATION FORM | PREFORMED |
| OVERALL LENGTH | 7.948 FEET MINIMUM AND 7.969 FEET MAXIMUM |
| DIAMETER | 0.250 INCHES NOMINAL ROPE |
| END TYPE | TERMINAL ATTACHMENT BOTH ENDS |
| SPECIAL FEATURES | TERMINAL ATTACHMENT EACH END,0.369 IN. MIN,0.374 IN. MAX DIA,3.312 IN. O/A LG,0.375-24 UNF THD SIZE,2.875 IN. THD LG |
Restrictions/Controls & Freight Information | NSN 4010-00-386-2864
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107520 | WIRE ROPE/STRAND I/S |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
