Product Details | SINGLE LEG WIRE ROPE ASSEMBLY

4010-00-305-0041 An assembly consisting of wire rope, with terminal attachment(s) and/or end loop(s), in a continuous run from end to end. (If without attachments, one end must terminate in a loop.) It may contain one or more intermediate and/or end attachments such as sliding or fixed ring(s), hook(s), or the like. For items specifically designed for aviation, see WIRE ROPE ASSEMBLY, SINGLE LEG, AVIATION. Excludes CONTROL ASSEMBLY, PUSH-PULL.

Part Alternates: SCB125627 REV A1, SCB125627REVA1, SK53205024, SK5320-5024, 4010-00-305-0041, 00-305-0041, 4010003050041, 003050041

Rope, Cable, Chain, and Fittings | Chain and Wire Rope

Supply Group (FSG) NSN Assign. NIIN
40 01 JAN 1963 00-305-0041

Drawings & Photos | NSN 4010-00-305-0041


Cross Reference | NSN 4010-00-305-0041

Part Number Cage Code Manufacturer
SCB125627 REV A1 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SK5320-5024 31922 LEEDS AND NORTHRUP CO A UNIT OF GENERAL SIGNAL CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4010-00-305-0041

Technical Data | NSN 4010-00-305-0041

Characteristic Specifications
MATERIAL COPPER ALLOY ALL ATTACHMENTS STEEL CORROSION RESISTING WIRE ROPE

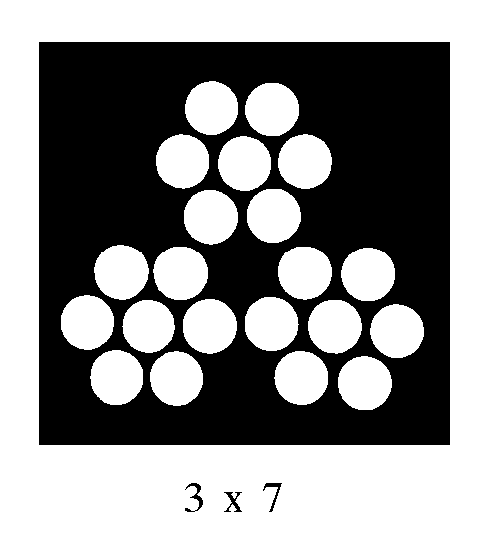

STYLE DESIGNATOR A1 3 X 7
OVERALL LENGTH 3.719 FEET NOMINAL
DIAMETER 0.032 INCHES NOMINAL ROPE
END TYPE TERMINAL ATTACHMENT BOTH ENDS
ATTACHMENT STYLE D6 FERRULE TERMINAL ATTACHMENT FIRST END D6 FERRULE TERMINAL ATTACHMENT SECOND END

Restrictions/Controls & Freight Information | NSN 4010-00-305-0041

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 107520 WIRE ROPE/STRAND I/S
Less than car load rating
Less than truck load rating U 50.0
Water commodity Code 576 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4010-00-305-0041

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
