NSN 3940-01-543-2944 01-543-2944, 459073036, 015432944
Product Details | TACKLE BLOCK
3940-01-543-2944 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: 3940-01-543-2944, 01-543-2944, 3940015432944, 459073036, 015432944
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 07 SEP 2006 | 01-543-2944 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-01-543-2944
Cross Reference | NSN 3940-01-543-2944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 459073036 | 97924 | JAMES WALKER CO.,THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-01-543-2944
Technical Data | NSN 3940-01-543-2944
| Characteristic | Specifications |
|---|---|

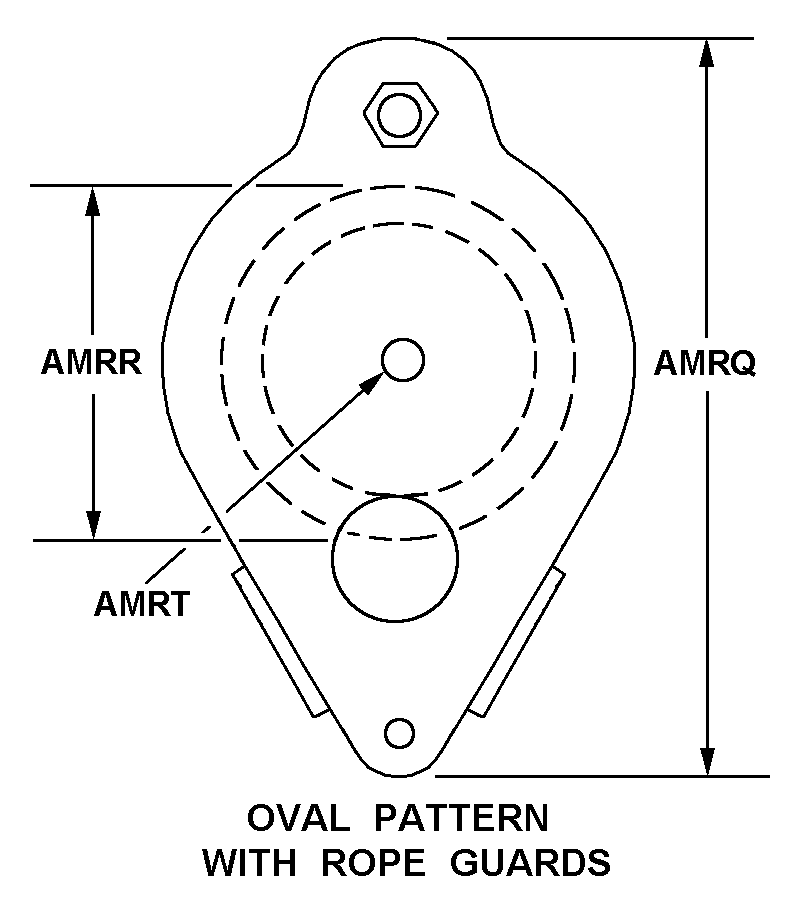

| STYLE DESIGNATOR | 24 OVAL PATTERN WITH ROPE GUARDS |
| SHELL LENGTH | 54.000 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 24.000 INCHES NOMINAL |
| CENTER PIN DIAMETER | 3.500 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | ROLLER |
| TACKLE ACCOMMODATED TYPE | WIRE ROPE |
| SPECIAL FEATURES | SHORTY J CRANE BLOCK; 30 TON SAFE WORKING LIMIT; 1-1/8" WIRE ROPE |
| III UNPACKAGED UNIT WEIGHT | 548.000 POUNDS |
| III END ITEM IDENTIFICATION | CRANE, BOUY, HANDLING P/N TB90-60/1771 |
| MANUFACTURERS CODE | 97924 |
| DESIGN CONTROL REFERENCE | 459073036 |
Restrictions/Controls & Freight Information | NSN 3940-01-543-2944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3940-01-543-2944
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | S | Stock Fund item managed for the Coast Guard by the respective Inventory Control Point. A funded requisition is required |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | O | |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
