NSN 3940-01-518-0067 196751, 19675-1, 01-518-0067
Product Details | TACKLE BLOCK
3940-01-518-0067 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: 196751, 19675-1, 3940-01-518-0067, 01-518-0067, 3940015180067, 015180067
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 27 FEB 2004 | 01-518-0067 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-01-518-0067
Cross Reference | NSN 3940-01-518-0067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19675-1 | 07070 | NAVY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-01-518-0067
Technical Data | NSN 3940-01-518-0067
| Characteristic | Specifications |
|---|---|

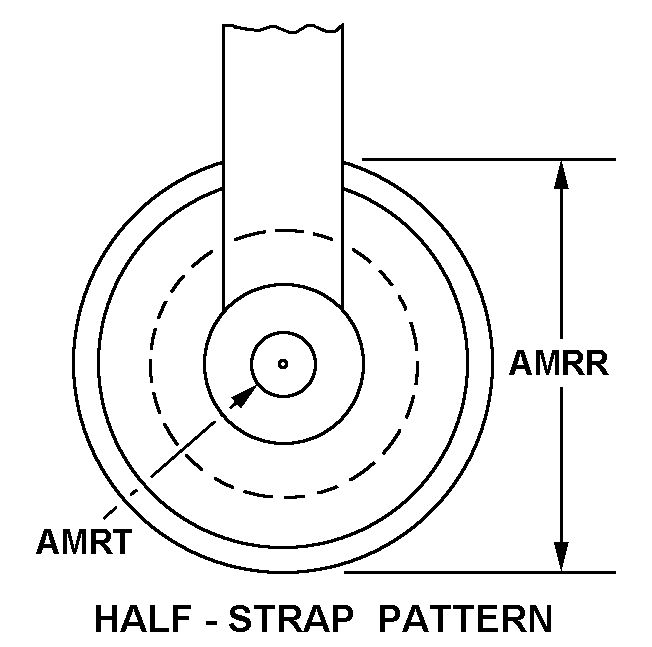

| STYLE DESIGNATOR | 25 HALF-STRAP PATTERN |
| SHEAVE OUTSIDE DIAMETER | 8.000 INCHES NOMINAL |
| CENTER PIN DIAMETER | 0.6253 INCHES MINIMUM AND 0.6258 INCHES MAXIMUM |
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| SHEAVE QUANTITY | 1 |
| SPECIAL FEATURES | STREAM SHEAVE ASSEMBLY, HEAT TREATED, CHROME PLATED; (2) MOUNTS, (1) CENTER SHAFT |
Restrictions/Controls & Freight Information | NSN 3940-01-518-0067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-01-518-0067
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
