Product Details | TACKLE BLOCK
3940-01-510-2503 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: 2D5-07736 ITEM 3, 2D507736ITEM3, 5D302286, 5D3-02286, 3940-01-510-2503, 01-510-2503, 3940015102503, 015102503
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 16 JUL 2003 | 01-510-2503 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-01-510-2503
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-01-510-2503
Technical Data | NSN 3940-01-510-2503
| Characteristic | Specifications |
|---|---|

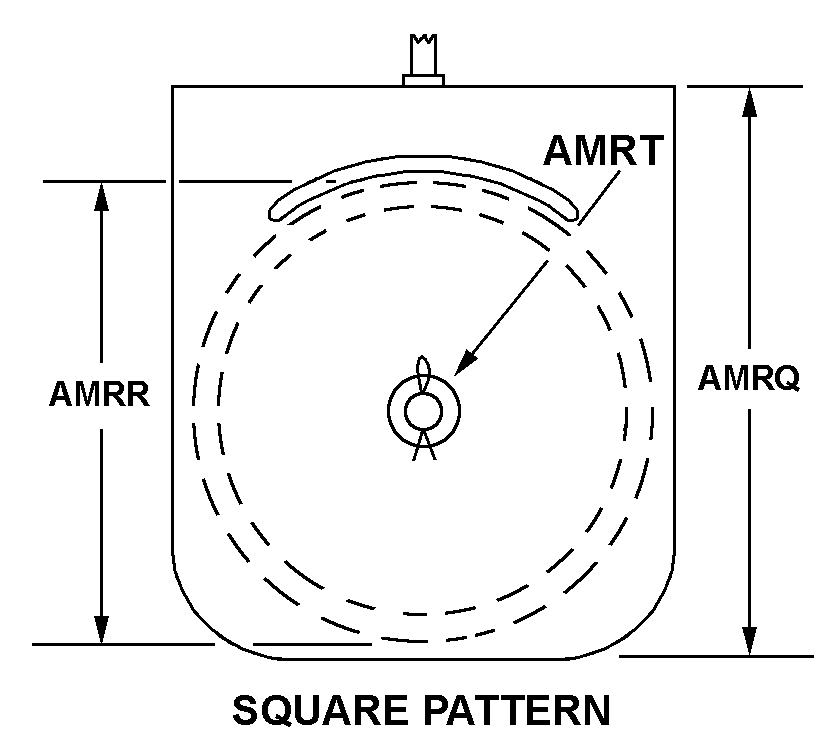

| STYLE DESIGNATOR | 10 SQUARE PATTERN |
| SHELL LENGTH | 9.000 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 8.500 INCHES NOMINAL |
| CENTER PIN DIAMETER | 1.750 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | PLASTIC SHEAVE AND STEEL CENTER PIN AND STEEL SHELL |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | ROLLER |
| SHEAVE BEARING LUBRICATION METHOD | PRESSURE GREASE FITTING |
| TACKLE ACCOMMODATED TYPE | FIBROUS ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.062 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| ANTITOPPLING DEVICE | NOT INCLUDED |
| ATTACHMENT STYLE | 12 CLEWLINE EYE |
| MAXIMUM LOAD RATING | NOT RATED |
| SPECIAL FEATURES | DRAWING CALLS THIS: SHEAVE ASSEMBLY |
| III UNPACKAGED UNIT WEIGHT | 32.000 POUNDS |
| III END ITEM IDENTIFICATION | CRANE |
