NSN 3940-01-349-1516 P004668, 41528, 4152-8
Product Details | TACKLE BLOCK
3940-01-349-1516 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: P004668, 41528, 4152-8, 3940-01-349-1516, 01-349-1516, 3940013491516, 013491516
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 21 NOV 1991 | 01-349-1516 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-01-349-1516
Demand History | NSN 3940-01-349-1516
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3940-01-349-1516 | 2016-05-137 | 8 | DIBBS |
| 3940-01-349-1516 | 2016-05-124 | 8 | DIBBS |
| 3940-01-349-1516 | 2016-02-42 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3940-01-349-1516
Technical Data | NSN 3940-01-349-1516
| Characteristic | Specifications |
|---|---|

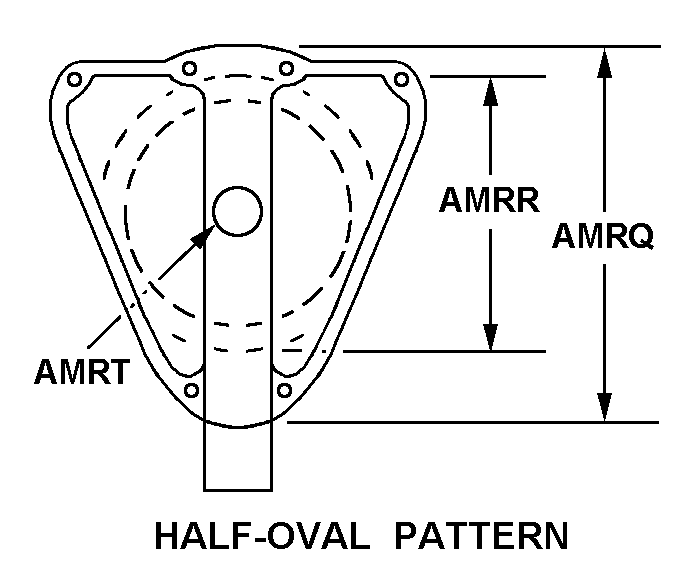

| STYLE DESIGNATOR | 6 HALF-OVAL PATTERN |
| SHELL LENGTH | 10.750 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 8.000 INCHES NOMINAL |
| CENTER PIN DIAMETER | 0.875 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | IRON SHEAVE OR STEEL SHEAVE |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | ROLLER |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | WIRE ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.625 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| ANTITOPPLING DEVICE | NOT INCLUDED |
| MAXIMUM LOAD RATING | 5000.0 POUNDS |
| SPECIAL FEATURES | BRONZE,SELF-LUBRICATING BUSHING OR PRESSURE FREASE LUBRICATED,BRONZE OR TAPERED ROLLER BEARING,PAINTED OR GALVANIZED FINISH |
Restrictions/Controls & Freight Information | NSN 3940-01-349-1516
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-01-349-1516
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
