Product Details | TACKLE BLOCK

3940-01-338-5865 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.

Part Alternates: 6609842, 6609842ITEM37, 8911-247-25, 3940-01-338-5865, 01-338-5865, 3940013385865, 013385865, 891124725

Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings

Supply Group (FSG) NSN Assign. NIIN
39 07 MAY 1991 01-338-5865

Drawings & Photos | NSN 3940-01-338-5865


Cross Reference | NSN 3940-01-338-5865

Part Number Cage Code Manufacturer
6609842 53711 NAVAL SEA SYSTEMS COMMAND
6609842ITEM37 53711 NAVAL SEA SYSTEMS COMMAND
8911-247-25 76257 CROSBY GROUP INC THE MCKISSICK PLANT DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3940-01-338-5865

Technical Data | NSN 3940-01-338-5865

Characteristic Specifications
BLOCK TYPE REGULAR
TACKLE ACCOMMODATED TYPE WIRE ROPE

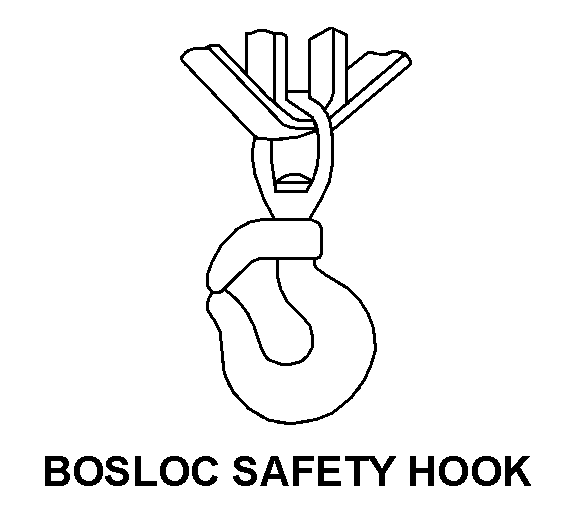

ATTACHMENT STYLE 20 BOSLOC SAFETY HOOK
SPECIAL FEATURES 18 IN. DOUBLE BLOCK,INSULATION SAFETY HOOK T-802,GROOVED FOR 3/4 IN. WIRE ROPE
CRITICALITY CODE JUSTIFICATION FEAT

Restrictions/Controls & Freight Information | NSN 3940-01-338-5865

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:YThe item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Category Code Description
NMF Description 127300 PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS
Less than car load rating
Less than truck load rating S 60.0
Water commodity Code 793 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code Z Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3940-01-338-5865

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
