NSN 3940-00-283-7690 108065, 2624747, 418
Product Details | TACKLE BLOCK
3940-00-283-7690 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: 108065, 2624747, 418, 418 4 1/2 INCH, 418412INCH, 481, 6405291, 752640529169, 752-6405291-69, 3940-00-283-7690, 00-283-7690, 3940002837690, 002837690
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 28 AUG 1973 | 00-283-7690 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-00-283-7690
Demand History | NSN 3940-00-283-7690
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 108065 | 2019-12-353 | 17 | DIBBS |
| 418 4 1/2 INCH | 2019-12-353 | 17 | DIBBS |
| 3940-00-283-7690 | 2016-01-06 | 14 | DIBBS |
| 3940-00-283-7690 | 2013-04-95 | 11 | DIBBS |
| 3940-00-283-7690 | 2013-02-33 | 11 | DIBBS |
| 3940-00-283-7690 | 2011-12-353 | 3 | DIBBS |
Cross Reference | NSN 3940-00-283-7690
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108065 | 75535 | CROSBY GROUP INC DBA NATIONAL SWAGE |
| 2624747 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 418 | 76257 | CROSBY GROUP INC THE MCKISSICK PLANT DIV |
| 418 4 1/2 INCH | 76257 | CROSBY GROUP INC THE MCKISSICK PLANT DIV |
| 481 | 75535 | CROSBY GROUP INC DBA NATIONAL SWAGE |
| 6405291 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 752-6405291-69 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3940-00-283-7690
Related Products | NSN 3940-00-283-7690
Technical Data | NSN 3940-00-283-7690
| Characteristic | Specifications |
|---|---|

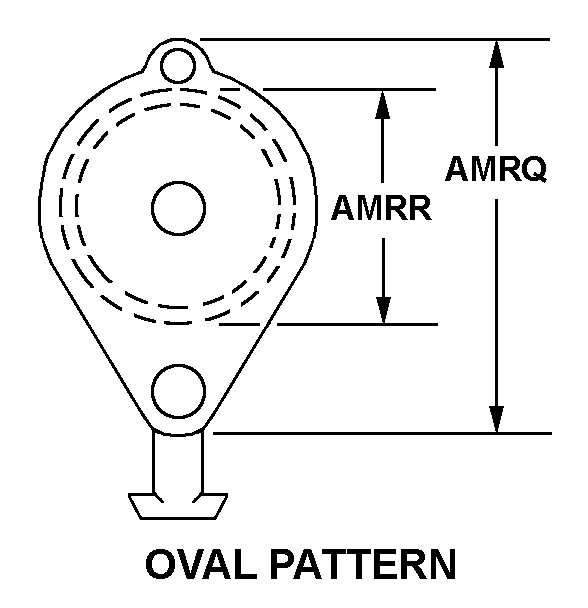

| STYLE DESIGNATOR | 29 OVAL PATTERN |
| SHELL LENGTH | 7.375 INCHES MINIMUM AND 7.625 INCHES MAXIMUM |
| SHEAVE OUTSIDE DIAMETER | 4.125 INCHES MINIMUM AND 4.375 INCHES MAXIMUM |
| BLOCK TYPE | SNATCH |
| LOCKING STYLE | 1 SAFETY LOCKING |
| MATERIAL AND LOCATION | BRONZE,SAE 660,BEARING STEEL,FORGING,COMPOSITION C1040,HOOK STEEL,FORGING,COMPOSITION C1040,YOKE STEEL,FORGING,COMPOSITION C1040,SHEAVE STEEL,FORGING,COMPOSITION C1040,SHACKLE |
| SURFACE TREATMENT AND LOCATION | ENAMEL PER DWG 80064/2584542 CLASS F,TYPE 1 OVERALL |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | PLAIN |
| SHEAVE BEARING LUBRICATION METHOD | PRESSURE GREASE FITTING |
| TACKLE ACCOMMODATED TYPE | WIRE ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.500 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| ANTITOPPLING DEVICE | NOT INCLUDED |
| ATTACHMENT STYLE | 32 FLATTED LOOSE SWIVEL EYE WITH SWIVEL HOOK |
| MAXIMUM LOAD RATING | 26000.0 POUNDS |
Restrictions/Controls & Freight Information | NSN 3940-00-283-7690
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
