NSN 3940-00-276-7499 8052453185TYPEXXX, 805-2453185TYPEXXX, 00-276-7499
Product Details | TACKLE BLOCK
3940-00-276-7499 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: 8052453185TYPEXXX, 805-2453185TYPEXXX, 3940-00-276-7499, 00-276-7499, 3940002767499, 002767499
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1963 | 00-276-7499 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-00-276-7499
Demand History | NSN 3940-00-276-7499
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3940-00-276-7499 | 2021-02-49 | 4 | DIBBS |
| 3940-00-276-7499 | 2021-02-38 | 4 | DIBBS |
| 3940-00-276-7499 | 2012-01-20 | 50 | DIBBS |
| 3940-00-276-7499 | 2009-04-112 | 6 | DIBBS |
| 3940-00-276-7499 | 2008-12-346 | 9 | DIBBS |
Cross Reference | NSN 3940-00-276-7499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 805-2453185TYPEXXX | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3940-00-276-7499
Related Products | NSN 3940-00-276-7499
Technical Data | NSN 3940-00-276-7499
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1 OVAL PATTERN |
| SHELL LENGTH | 19.000 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 12.000 INCHES NOMINAL |
| CENTER PIN DIAMETER | 1.750 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | PLAIN |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | WIRE ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 0.625 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| BECKET TYPE | CLOSED SOCKET |
| BECKET QUANTITY | 1 |
| ANTITOPPLING DEVICE | NOT INCLUDED |

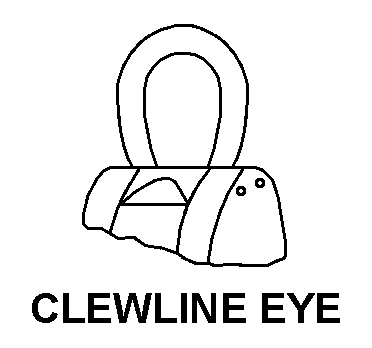

| ATTACHMENT STYLE | 12 CLEWLINE EYE |
| MAXIMUM LOAD RATING | NOT RATED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY EXTRA LONG REFERENCE NUMBER |
| EXTRA LONG REFERENCE NUMBER | DWG805-2453185PC1-2-6-10-12-13-17 -21TO23 |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 805-2453185PC1-2-6-10-12-13-17-- |
Restrictions/Controls & Freight Information | NSN 3940-00-276-7499
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-00-276-7499
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
