Product Details | TACKLE BLOCK

3940-00-269-9743 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.

Part Alternates: S1801770369PC1T015, S1801-770369PC1T015, 3940-00-269-9743, 00-269-9743, 3940002699743, 002699743

Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings

Supply Group (FSG) NSN Assign. NIIN
39 01 JAN 1963 00-269-9743

Drawings & Photos | NSN 3940-00-269-9743


Cross Reference | NSN 3940-00-269-9743

Part Number Cage Code Manufacturer
S1801-770369PC1T015 80064 NAVAL SHIP SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3940-00-269-9743

Technical Data | NSN 3940-00-269-9743

Characteristic Specifications

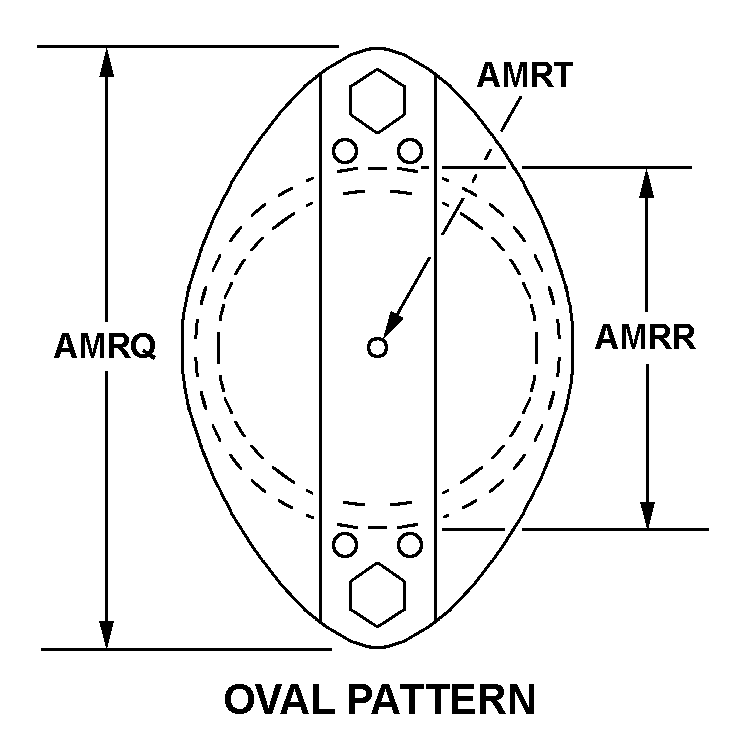

STYLE DESIGNATOR 1 OVAL PATTERN
SHEAVE OUTSIDE DIAMETER 14.000 INCHES NOMINAL
CENTER PIN DIAMETER 1.497 INCHES NOMINAL
BLOCK TYPE REGULAR
MATERIAL AND LOCATION BRONZE BEARING STEEL CENTER PIN STEEL SHEAVE STEEL SHELL
SURFACE TREATMENT AND LOCATION ZINC, ELECTROLYTIC OVERALL
SHEAVE QUANTITY 3
BEARING TYPE PLAIN
SHEAVE BEARING LUBRICATION METHOD PRESSURE GREASE FITTING
TACKLE ACCOMMODATED TYPE WIRE ROPE
MAXIMUM TACKLE DIAMETER ACCOMMODATED 0.625 INCHES
TACKLE LOCKING DEVICE NOT INCLUDED
ANTITOPPLING DEVICE NOT INCLUDED
MAXIMUM LOAD RATING NOT RATED
REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS AS DIFFERENTIATED BY SHEAVE QUANTITY AND MAXIMUM TACKLE DIAMETER ACCOMMODATED
MANUFACTURERS CODE 80064
DESIGN CONTROL REFERENCE S1801-770369PC1T015
