NSN 3940-00-189-3454 S1801860447PC1259T0111416, S1801-860447PC1-2-5-9T011-14-16-, 00-189-3454
Product Details | TACKLE BLOCK
3940-00-189-3454 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: S1801860447PC1259T0111416, S1801-860447PC1-2-5-9T011-14-16-, 3940-00-189-3454, 00-189-3454, 3940001893454, 001893454
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1963 | 00-189-3454 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-00-189-3454
Cross Reference | NSN 3940-00-189-3454
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S1801-860447PC1-2-5-9T011-14-16- | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3940-00-189-3454
Related Products | NSN 3940-00-189-3454
Technical Data | NSN 3940-00-189-3454
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1 OVAL PATTERN |
| SHELL LENGTH | 12.000 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 7.375 INCHES NOMINAL |
| CENTER PIN DIAMETER | 0.875 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | BRONZE BEARING STEEL CENTER PIN STEEL SHEAVE STEEL SHELL |
| SURFACE TREATMENT AND LOCATION | ZINC, ELECTROLYTIC OVERALL |
| SHEAVE QUANTITY | 3 |
| BEARING TYPE | PLAIN |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | FIBROUS ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 1.312 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| BECKET TYPE | THIMBLE |
| BECKET QUANTITY | 1 |
| ANTITOPPLING DEVICE | NOT INCLUDED |

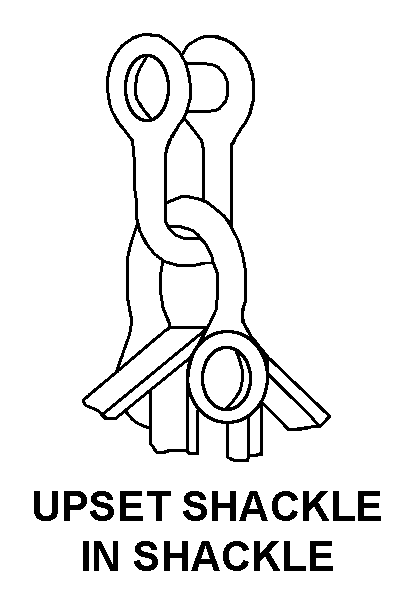

| ATTACHMENT STYLE | 10 UPSET SHACKLE IN SHACKLE |
| MAXIMUM LOAD RATING | 13000.0 POUNDS |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE ELR NO. SIZE 12 IN. RIG NO. 2 |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | S1801-860447PC1-2-5-9T011-14-16- |
Restrictions/Controls & Freight Information | NSN 3940-00-189-3454
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-00-189-3454
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
