NSN 3940-00-051-8600 GGGB490, GGG-B-490, 00-051-8600
Product Details | TACKLE BLOCK
3940-00-051-8600 A mechanical device, consisting of a pulley(s) or sheave(s) encased in a shell or frame which may be provided with a means such as a hook, eye, strap, screw, etc., by which it may be attached to an object. It is used to change direction of a running rope and/or to gain a mechanical advantage.
Part Alternates: GGGB490, GGG-B-490, 3940-00-051-8600, 00-051-8600, 3940000518600, 000518600
Materials Handling Equipment | Blocks, Tackle, Rigging, and Slings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 39 | 01 JAN 1963 | 00-051-8600 | 06117 ( BLOCK, TACKLE ) |
Drawings & Photos | NSN 3940-00-051-8600
Demand History | NSN 3940-00-051-8600
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3940-00-051-8600 | 2016-06-160 | 2 | DIBBS |
| 3940-00-051-8600 | 2016-02-34 | 5 | DIBBS |
| 3940-00-051-8600 | 2016-02-34 | 14 | DIBBS |
Cross Reference | NSN 3940-00-051-8600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GGG-B-490 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3940-00-051-8600
Related Products | NSN 3940-00-051-8600
Technical Data | NSN 3940-00-051-8600
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 3 ROUND PATTERN |
| SHELL LENGTH | 8.000 INCHES NOMINAL |
| SHEAVE OUTSIDE DIAMETER | 4.500 INCHES NOMINAL |
| CENTER PIN DIAMETER | 0.625 INCHES NOMINAL |
| BLOCK TYPE | REGULAR |
| MATERIAL AND LOCATION | BRONZE BEARING STEEL CENTER PIN IRON SHEAVE AND STEEL SHEAVE IRON SHELL AND STEEL SHELL |
| SURFACE TREATMENT AND LOCATION | ZINC, ELECTROLYTIC OVERALL |
| SHEAVE QUANTITY | 1 |
| BEARING TYPE | PLAIN |
| SHEAVE BEARING LUBRICATION METHOD | SELF-LUBRICATED |
| TACKLE ACCOMMODATED TYPE | FIBROUS ROPE |
| MAXIMUM TACKLE DIAMETER ACCOMMODATED | 1.000 INCHES |
| TACKLE LOCKING DEVICE | NOT INCLUDED |
| BECKET TYPE | THIMBLE |
| BECKET QUANTITY | 1 |
| ANTITOPPLING DEVICE | NOT INCLUDED |

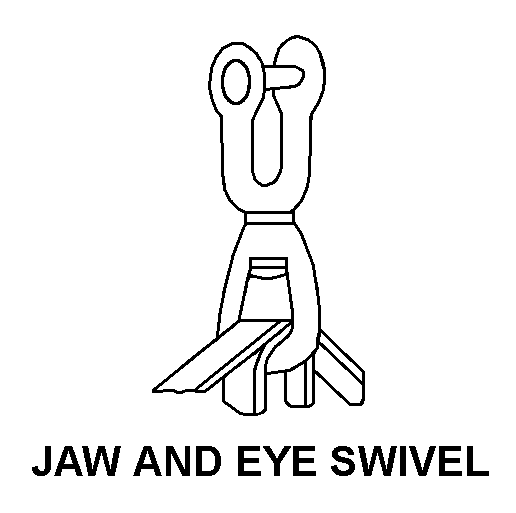

| ATTACHMENT STYLE | 7 JAW AND EYE SWIVEL |
| MAXIMUM LOAD RATING | 3300.0 POUNDS |
| SPECIAL FEATURES | SHEAVE THICKNESS AT RIM MIN 1.375 IN. |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-B-490 |
Restrictions/Controls & Freight Information | NSN 3940-00-051-8600
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127300 | PULLEY BLOCKS/TCKLE/SNATCH/FAIRLDRS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3940-00-051-8600
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
