NSN 3439-00-585-1380 14CHISELF0RGE6A212, 1-4CHISELF0RGE6A212, 6A211
Product Details | ELECTRIC SOLDERING IRON TIP
3439-00-585-1380 A metallic item designed to be attached to the end of an electric soldering iron or an electric soldering iron handle for the purpose of transmitting heat to the item being soldered. Tt may include an integral electrical heating element and may be designed to accommodate a tiplet.
Part Alternates: 14CHISELF0RGE6A212, 1-4CHISELF0RGE6A212, 6A211, 3439-00-585-1380, 00-585-1380, 3439005851380, 005851380
Metalworking Machinery | Miscellaneous Welding, Soldering, and Brazing Supplies and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 34 | 01 JAN 1963 | 00-585-1380 | 11205 ( TIP, ELECTRIC SOLDERING IRON ) |
Drawings & Photos | NSN 3439-00-585-1380
Demand History | NSN 3439-00-585-1380
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3439-00-585-1380 | 2024-05-140 | 1 | US |
| 14CHISELF0RGE6A212 | 2020-05-151 | 2 | CA |
| 6A211 | 2020-05-151 | 2 | CA |
| 6A211 | 2020-05-129 | 2 | CA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3439-00-585-1380
Related Products | NSN 3439-00-585-1380
Technical Data | NSN 3439-00-585-1380
| Characteristic | Specifications |
|---|---|
| TIP TYPE | STRAIGHT |
| MATERIAL | COPPER |
| SURFACE TREATMENT | IRON |

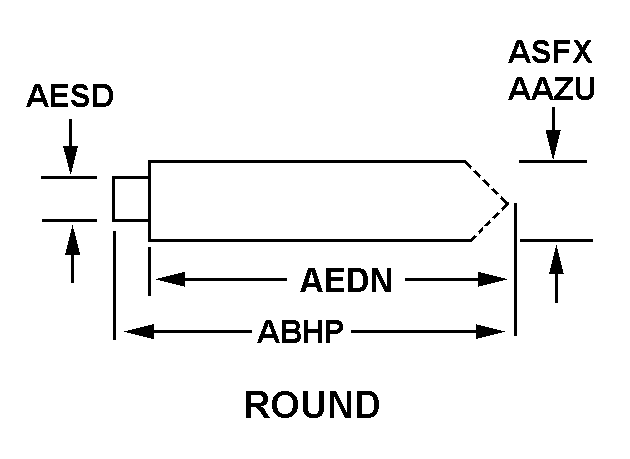

| BODY STYLE | A2 ROUND |
| TIP DIAMETER | 0.260 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| OVERALL LENGTH | 4.688 INCHES MINIMUM AND 4.938 INCHES MAXIMUM |
| TIP LENGTH | 1.406 INCHES MINIMUM AND 1.469 INCHES MAXIMUM |
| MOUNTING END DIAMETER | 0.312 INCHES NOMINAL |
| TIP WIDTH | 0.156 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| TIPLET ACCOMMODATION | NOT INCLUDED |
| TIP END STYLE | B4 SCREWDRIVER |
| INTEGRAL HEATING ELEMENT | INCLUDED |
| CURRENT TYPE | AC |
| OPERATING VOLTAGE IN VOLTS | 6.000 NOMINAL |
| WATTAGE RATING IN WATTS | 25.000 NOMINAL |
| MOUNTING METHOD | THREADED END |
| THREAD LOCATION | EXTERNAL |
| THREAD SIZE | 0.312-24 |
Restrictions/Controls & Freight Information | NSN 3439-00-585-1380
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3439-00-585-1380
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
