Product Details | ELECTRIC SOLDERING IRON TIP

3439-00-781-1798 A metallic item designed to be attached to the end of an electric soldering iron or an electric soldering iron handle for the purpose of transmitting heat to the item being soldered. Tt may include an integral electrical heating element and may be designed to accommodate a tiplet.

Part Alternates: B3, 3439-00-781-1798, 00-781-1798, 3439007811798, 007811798

Metalworking Machinery | Miscellaneous Welding, Soldering, and Brazing Supplies and Accessories

Supply Group (FSG) NSN Assign. NIIN
34 01 JAN 1960 00-781-1798

Drawings & Photos | NSN 3439-00-781-1798


Cross Reference | NSN 3439-00-781-1798

Part Number Cage Code Manufacturer
B3 02105 ASSEMBLY TECHNOLOGIES INTERNATIONAL DBA AMERICAN BEAUTY TOOLS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3439-00-781-1798

Technical Data | NSN 3439-00-781-1798

Characteristic Specifications
TIP TYPE STRAIGHT
MATERIAL COPPER
SURFACE TREATMENT IRON

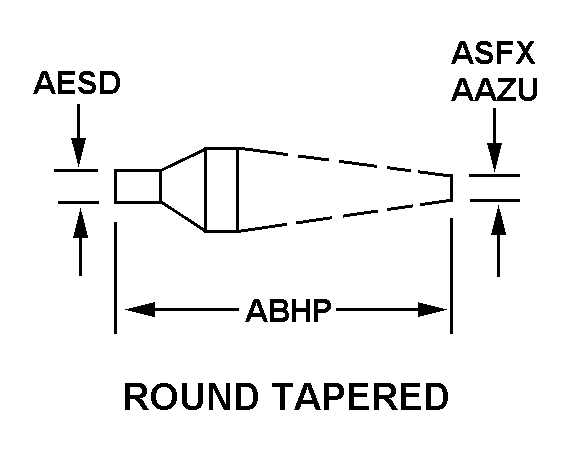

BODY STYLE A5 ROUND TAPERED
TIP DIAMETER 0.025 INCHES NOMINAL
OVERALL LENGTH 1.093 INCHES NOMINAL
MOUNTING END DIAMETER 0.138 INCHES NOMINAL
TIPLET ACCOMMODATION NOT INCLUDED

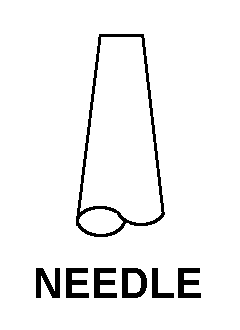

TIP END STYLE B8 NEEDLE
INTEGRAL HEATING ELEMENT NOT INCLUDED
MOUNTING METHOD THREADED END
THREAD LOCATION EXTERNAL
THREAD SIZE 6-32

Restrictions/Controls & Freight Information | NSN 3439-00-781-1798

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
