NSN 3130-01-327-8040 5819919, 01-327-8040, 013278040
Product Details | BEARING UNIT HOUSING
3130-01-327-8040 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Part Alternates: 5819919, 3130-01-327-8040, 01-327-8040, 3130013278040, 013278040
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 21 OCT 1990 | 01-327-8040 | 30559 ( HOUSING, BEARING UNIT ) |
Drawings & Photos | NSN 3130-01-327-8040
Cross Reference | NSN 3130-01-327-8040
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5819919 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-327-8040
Related Products | NSN 3130-01-327-8040
Technical Data | NSN 3130-01-327-8040
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

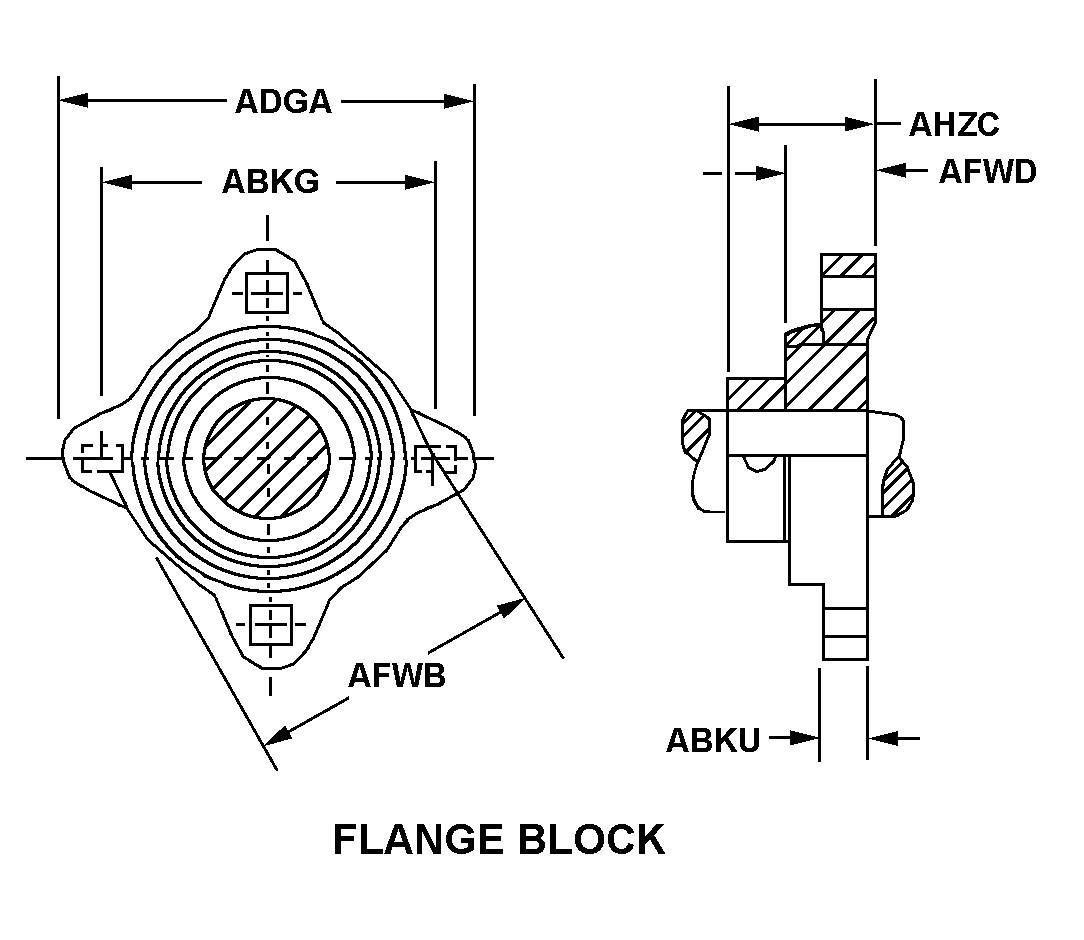

| STYLE DESIGNATOR | A35 FLANGE BLOCK |
| HOUSING DIAMETER | 2.240 INCHES MINIMUM AND 2.245 INCHES MAXIMUM |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.332 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AFTERBODY SECTION,TORPEDO MK50 |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 5819919 |
Restrictions/Controls & Freight Information | NSN 3130-01-327-8040
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 123070 | HOUSINGS BEARING AND SHAFT STEEL |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-01-327-8040
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
