Product Details | BEARING UNIT HOUSING

3130-01-206-7527 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.

Part Alternates: 3130-01-206-7527, 01-206-7527, 3130012067527, 012067527, 200887661, 200887712

Bearings | Bearings, Mounted

Supply Group (FSG) NSN Assign. NIIN
31 22 APR 1985 01-206-7527

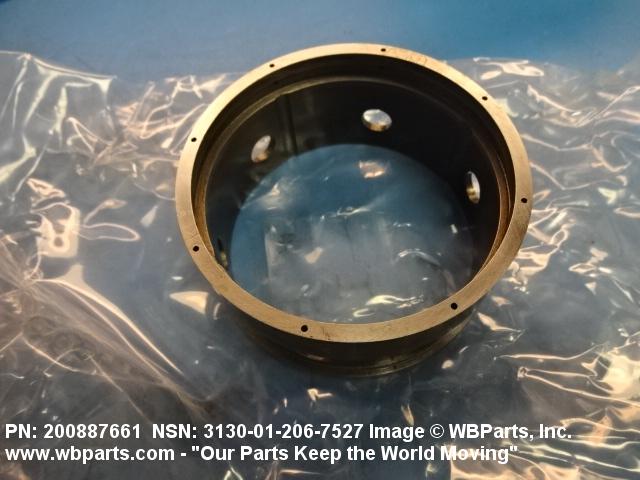

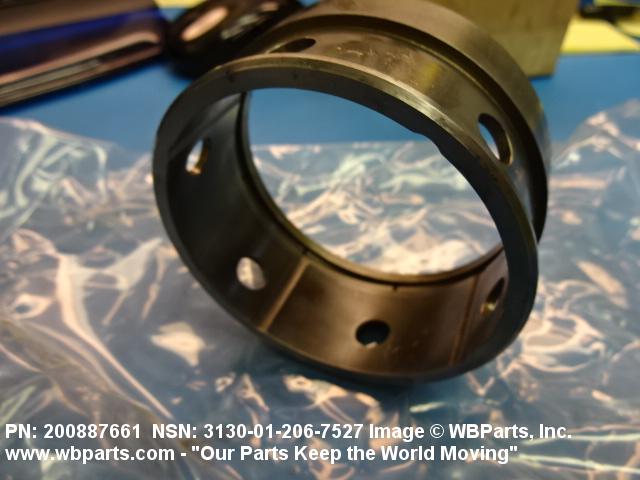

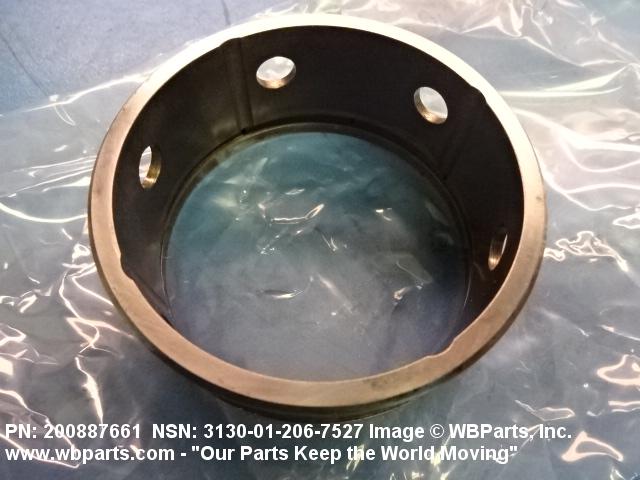

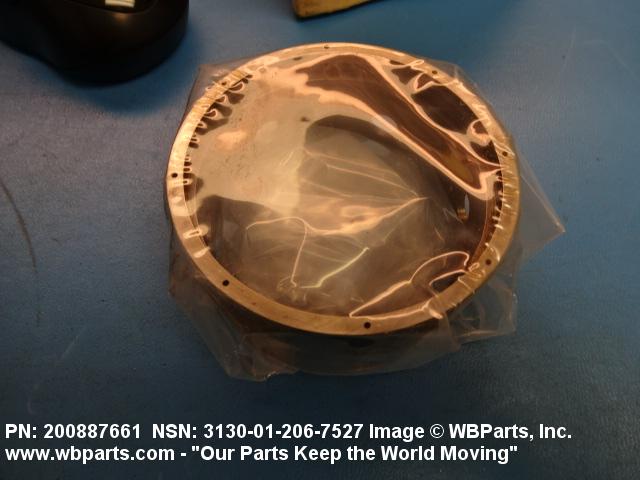

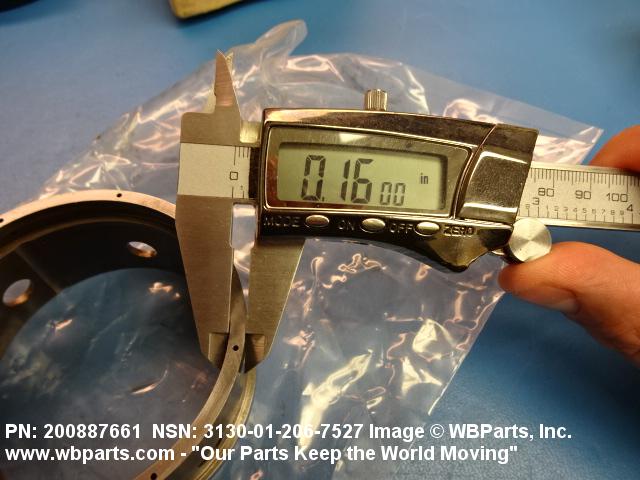

Drawings & Photos | NSN 3130-01-206-7527


Demand History | NSN 3130-01-206-7527

Part Number Request Date QTY Origin
3130-01-206-7527 2019-05-135 2 United States
200887712 2019-01-21 6 DIBBS
200887712 2019-01-10 6 DIBBS
3130-01-206-7527 2018-11-322 2 DIBBS
3130-01-206-7527 2018-05-150 7 DIBBS
3130-01-206-7527 2018-04-108 7 DIBBS
3130-01-206-7527 2018-04-100 7 DIBBS
3130-01-206-7527 2018-03-74 6 DIBBS
3130-01-206-7527 2018-03-66 6 DIBBS
3130-01-206-7527 2013-05-133 15 DIBBS
3130-01-206-7527 2013-04-118 15 DIBBS
3130-01-206-7527 2011-08-238 4 DIBBS
3130-01-206-7527 2011-04-97 15 DIBBS
3130-01-206-7527 2011-01-31 9 DIBBS
3130-01-206-7527 2009-10-299 10 DIBBS
3130-01-206-7527 2009-04-111 10 DIBBS
3130-01-206-7527 2008-04-98 15 DIBBS
3130-01-206-7527 2008-02-42 16 DIBBS
3130-01-206-7527 2007-06-158 77 DIBBS
3130-01-206-7527 2007-03-89 26 DIBBS

Cross Reference | NSN 3130-01-206-7527

Part Number Cage Code Manufacturer
200887661 K0654 MESSIER-DOWTY LTD DBA OA
200887712 76301 BOEING COMPANY, THE DBA BOEING
200887712 K0654 MESSIER-DOWTY LTD DBA OA

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3130-01-206-7527

Technical Data | NSN 3130-01-206-7527

Characteristic Specifications
BORE DIAMETER 2.9000 INCHES MINIMUM AND 2.9007 INCHES MAXIMUM

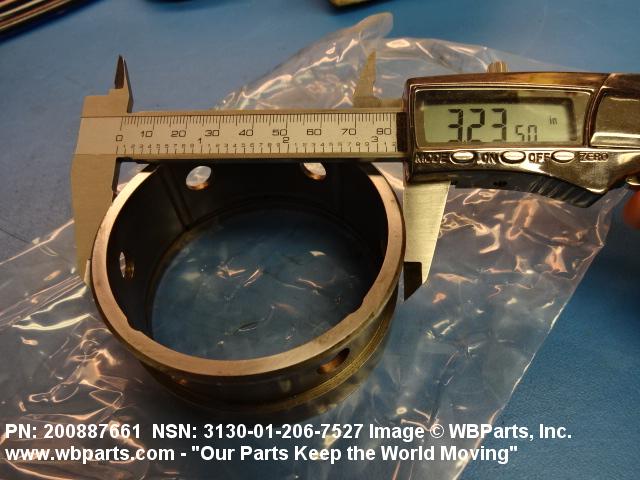

OVERALL OUTSIDE DIAMETER 3.2650 INCHES MINIMUM AND 3.2700 INCHES MAXIMUM
HOUSING DIAMETER 3.0990 INCHES MINIMUM AND 3.1000 INCHES MAXIMUM

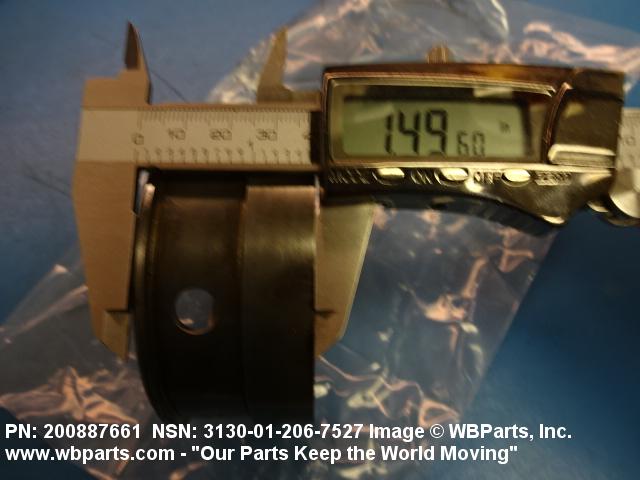

HOUSING LENGTH 1.4550 INCHES MINIMUM AND 1.4750 INCHES MAXIMUM

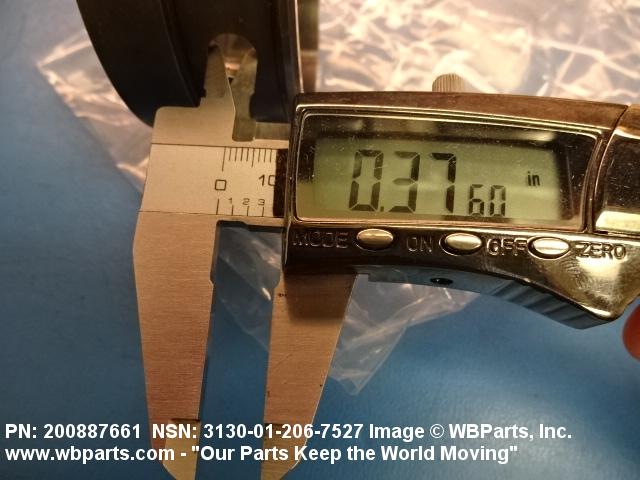

MOUNTING HOLE DIAMETER 0.3750 INCHES MINIMUM AND 0.3759 INCHES MAXIMUM
SHAFT END TYPE CLOSED OR OPEN

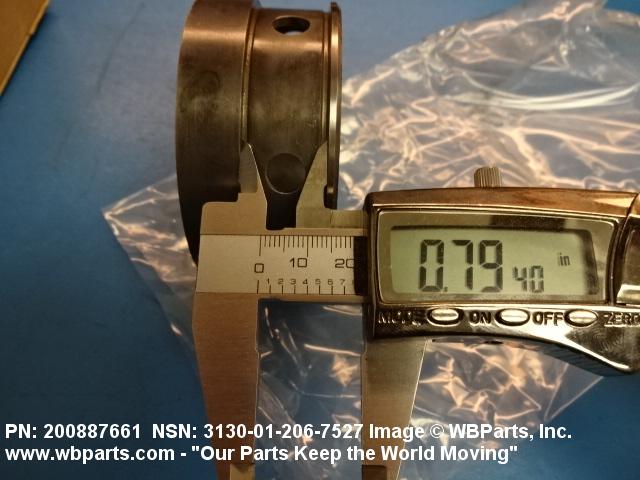

SPECIAL FEATURES EIGHT ADDITIONAL MOUNTING HOLES,0.0450 IN. MIN 0.0480 IN. MAX; FOUR SLOTS,0.8010 IN. MIN 0.8060 IN. MAX WIDE,0.0250 IN. MIN 0.0300 IN. DEEP

Restrictions/Controls & Freight Information | NSN 3130-01-206-7527

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 114820 BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 742 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3130-01-206-7527

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
