NSN 3130-01-025-1674 3735394, 373539-4, 01-025-1674

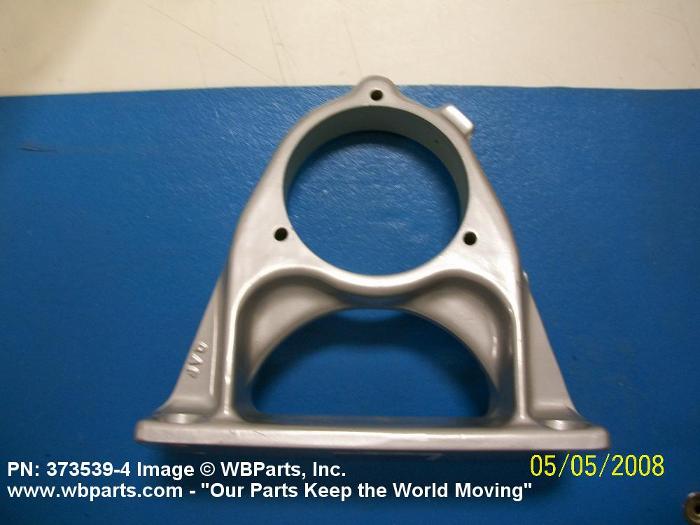

Product Details | BEARING UNIT HOUSING
3130-01-025-1674 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Part Alternates: 3735394, 373539-4, 3130-01-025-1674, 01-025-1674, 3130010251674, 010251674
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
31 | 28 JUL 1976 | 01-025-1674 | 30559 ( HOUSING, BEARING UNIT ) |
Demand History | NSN 3130-01-025-1674
Part Number | Request Date | QTY | Origin |
---|---|---|---|
3735394 | 2011-06-175 | 1 | United States |
3130-01-025-1674 | 2011-06-173 | 1 | United States |
Cross Reference | NSN 3130-01-025-1674
Part Number | Cage Code | Manufacturer |
---|---|---|
373539-4 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-025-1674
Related Products | NSN 3130-01-025-1674
Technical Data | NSN 3130-01-025-1674
Characteristic | Specifications |
---|---|
BORE DIAMETER | 2.6880 INCHES MINIMUM AND 2.6890 INCHES MAXIMUM |
MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
BASE THICKNESS | 0.1700 INCHES MINIMUM |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 5.1250 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.3750 INCHES NOMINAL |
HOUSING HEIGHT | 5.5000 INCHES NOMINAL |
HOUSING LENGTH | 0.7600 INCHES NOMINAL |
HOUSING WIDTH | 6.1250 INCHES NOMINAL |
BASE LENGTH | 2.5000 INCHES NOMINAL |
HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 3.6900 INCHES NOMINAL |
LUBRICATION FITTING TYPE | HYDRAULIC |
LUBRICATION FITTING ANGLE FROM HORIZONTAL CENTERLINE | 45.0 DEGREES NOMINAL |
SHAFT END TYPE | CLOSED OR OPEN |
Restrictions/Controls & Freight Information | NSN 3130-01-025-1674
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
Less than car load rating | P | 77.5 |
Less than truck load rating | P | 77.5 |
Water commodity Code | 742 | unknown |
Originating Activity Code | ZA | Australia ZB ZC |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
