NSN 3130-01-326-0824 424580, 424-580, 01-326-0824
Product Details | BEARING UNIT HOUSING
3130-01-326-0824 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Part Alternates: 424580, 424-580, 3130-01-326-0824, 01-326-0824, 3130013260824, 013260824
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 18 SEP 1990 | 01-326-0824 | 30559 ( HOUSING, BEARING UNIT ) |
Drawings & Photos | NSN 3130-01-326-0824
Cross Reference | NSN 3130-01-326-0824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 424-580 | 58419 | SICMA AERO SEAT SERVICES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-326-0824
Related Products | NSN 3130-01-326-0824
Technical Data | NSN 3130-01-326-0824
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.1770 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL EXCLUDING BORE OR APERTURE |

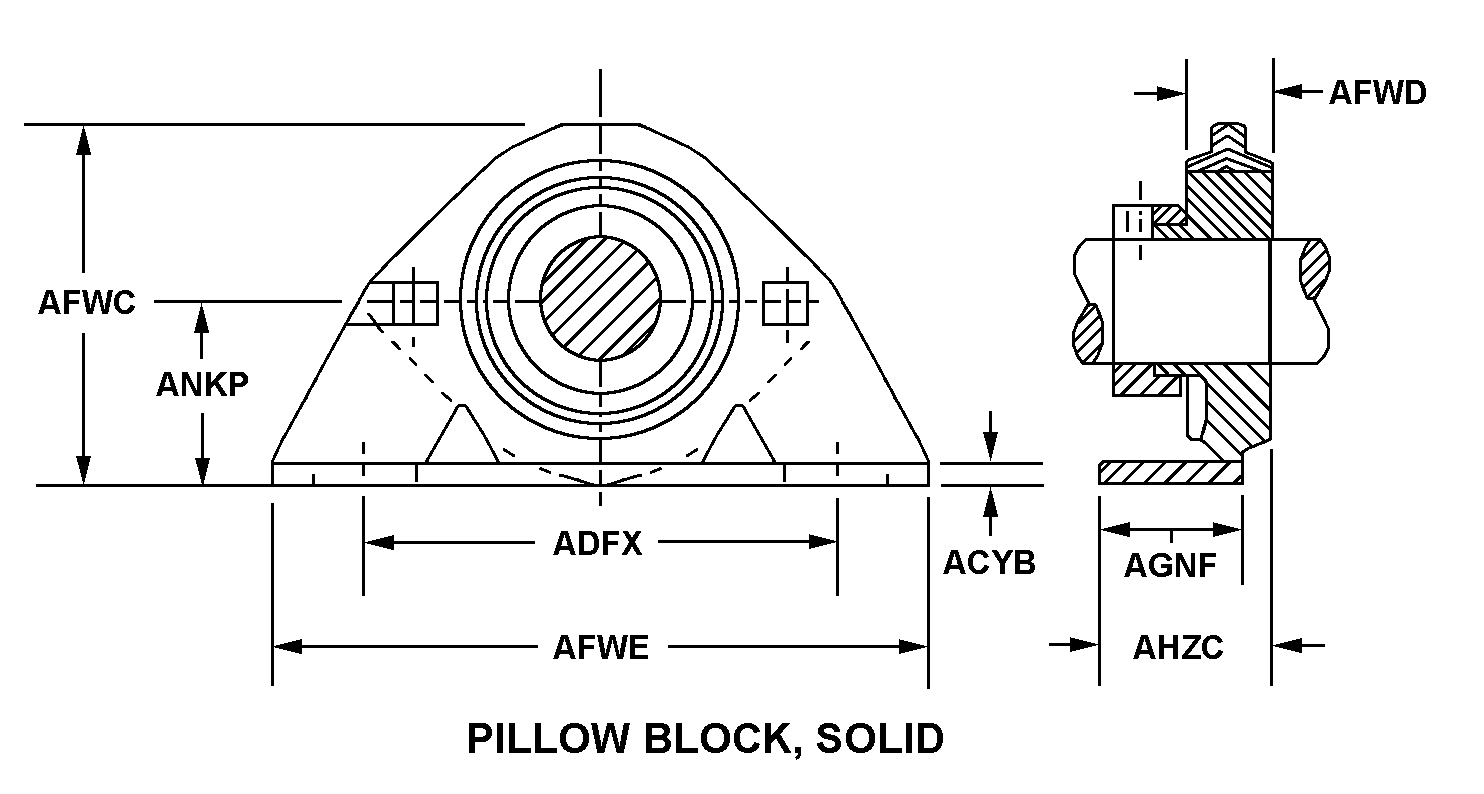

| STYLE DESIGNATOR | A15 PILLOW BLOCK, SOLID |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.800 INCHES NOMINAL |
| HOUSING HEIGHT | 2.002 INCHES NOMINAL |
| HOUSING LENGTH | 0.945 INCHES NOMINAL |
| HOUSING WIDTH | 2.364 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 0.957 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 1.153 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.253 INCHES NOMINAL |
| FEATURES PROVIDED | BUSHING |
| SPECIAL FEATURES | U-SHAPED BOTTOM WIDTH |
| MANUFACTURERS CODE | 58419 |
| DESIGN CONTROL REFERENCE | 424-580 |
Restrictions/Controls & Freight Information | NSN 3130-01-326-0824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 3130-01-326-0824
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
