NSN 3130-01-284-2930 2623015, 01-284-2930, 012842930
Product Details | BEARING UNIT HOUSING
3130-01-284-2930 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Part Alternates: 2623015, 3130-01-284-2930, 01-284-2930, 3130012842930, 012842930
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 22 AUG 1988 | 01-284-2930 | 30559 ( HOUSING, BEARING UNIT ) |

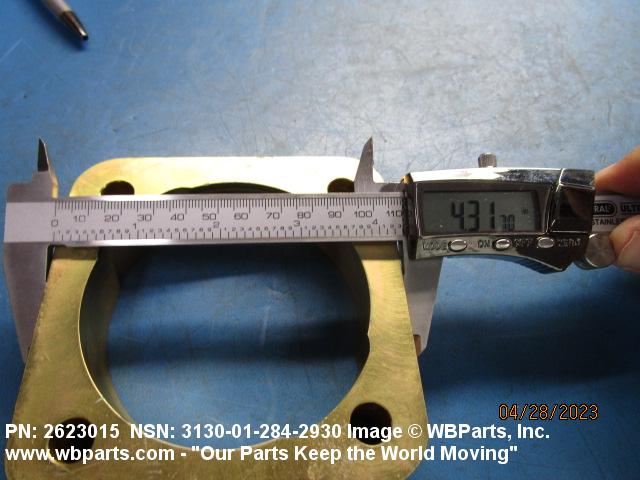

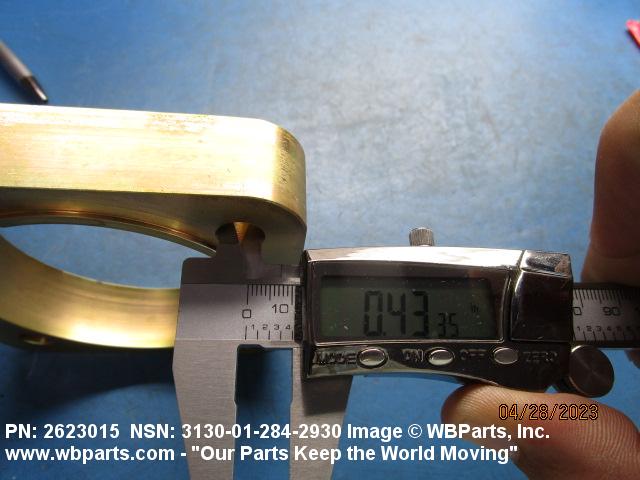

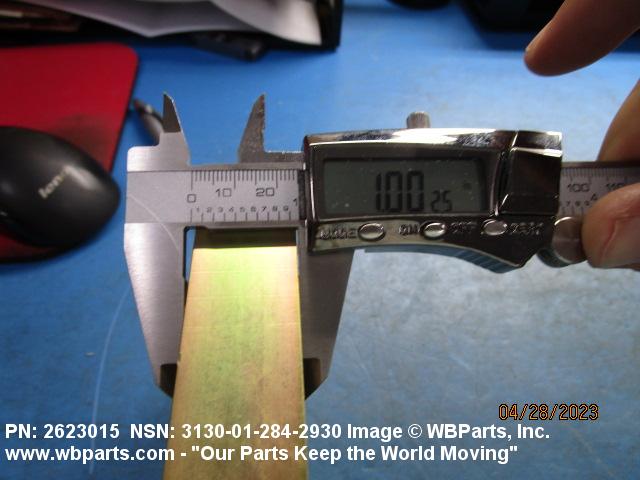

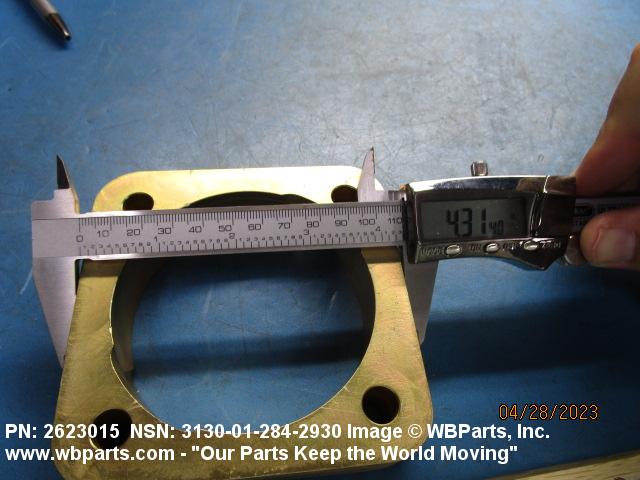

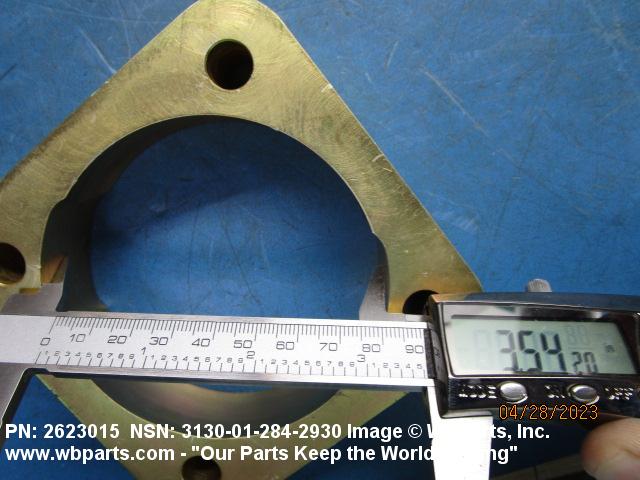

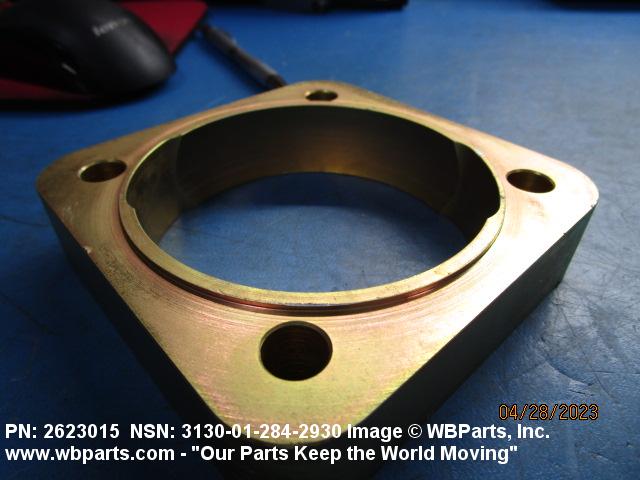

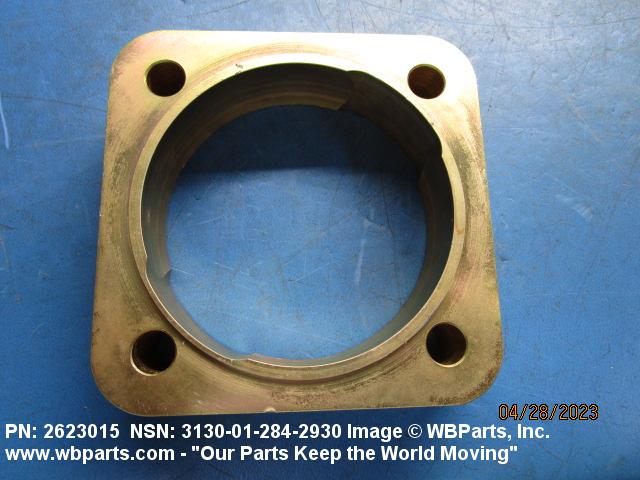

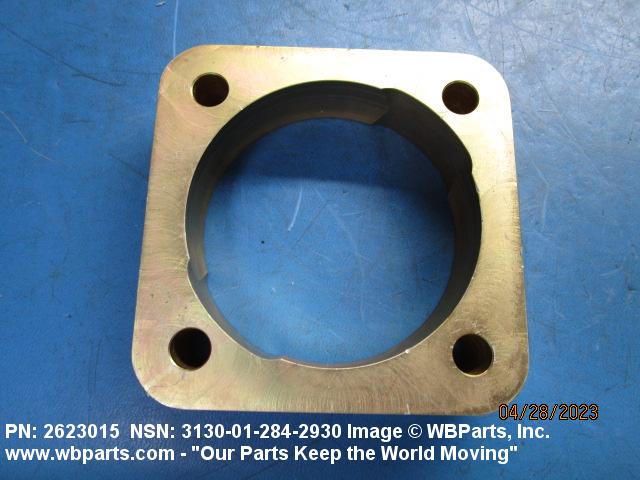

Drawings & Photos | NSN 3130-01-284-2930
Demand History | NSN 3130-01-284-2930
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3130-01-284-2930 | 2024-10-291 | 19 | DIBBS |
| 3130-01-284-2930 | 2024-07-208 | 19 | DIBBS |
| 3130-01-284-2930 | 2024-07-200 | 19 | DIBBS |
| 3130-01-284-2930 | 2023-11-319 | 529 | DIBBS |
| 3130-01-284-2930 | 2023-11-310 | 217 | DIBBS |
| 3130-01-284-2930 | 2023-09-260 | 312 | DIBBS |
| 3130-01-284-2930 | 2023-07-207 | 30 | DIBBS |
| 3130-01-284-2930 | 2023-07-194 | 187 | DIBBS |
| 3130-01-284-2930 | 2023-04-110 | 20 | United States |
| 3130-01-284-2930 | 2021-12-361 | 19 | DIBBS |
| 3130-01-284-2930 | 2021-12-353 | 19 | DIBBS |
| 3130-01-284-2930 | 2021-06-171 | 315 | DIBBS |
| 3130-01-284-2930 | 2021-02-34 | 160 | DIBBS |
| 3130-01-284-2930 | 2018-01-01 | 1 | DIBBS-RFPs |
| 3130-01-284-2930 | 2017-05-143 | 289 | DIBBS |
| 3130-01-284-2930 | 2017-04-93 | 482 | DIBBS |
| 3130-01-284-2930 | 2016-12-340 | 371 | DIBBS |
| 3130-01-284-2930 | 2016-07-192 | 178 | DIBBS |
| 3130-01-284-2930 | 2016-03-91 | 381 | DIBBS |
| 3130-01-284-2930 | 2016-02-47 | 131 | DIBBS |
| 3130-01-284-2930 | 2014-09-252 | 226 | DIBBS |
| 3130-01-284-2930 | 2014-05-125 | 30 | DIBBS |
| 3130-01-284-2930 | 2012-04-99 | 1952 | DIBBS |
| 3130-01-284-2930 | 2012-03-88 | 76 | US |
| 3130-01-284-2930 | 2012-02-52 | 2026 | DIBBS |
| 3130-01-284-2930 | 2012-02-46 | 76 | DIBBS |
| 3130-01-284-2930 | 2008-11-317 | 144 | DIBBS |
| 3130-01-284-2930 | 2008-10-288 | 164 | DIBBS |
| 3130-01-284-2930 | 2008-05-126 | 167 | DIBBS |
| 3130-01-284-2930 | 2008-01-08 | 63 | DIBBS |
| 3130-01-284-2930 | 2007-10-302 | 181 | DIBBS |
| 3130-01-284-2930 | 2007-08-233 | 76 | DIBBS |
| 3130-01-284-2930 | 2007-07-194 | 102 | DIBBS |
| 3130-01-284-2930 | 2007-06-157 | 153 | DIBBS |
| 3130-01-284-2930 | 2007-03-89 | 95 | DIBBS |
| 3130-01-284-2930 | 2007-01-24 | 27 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-284-2930
Related Products | NSN 3130-01-284-2930
Technical Data | NSN 3130-01-284-2930
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 3.5445 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-741 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A34 FLANGE BLOCK |
| FLANGE THICKNESS | 1.010 INCHES NOMINAL |
| HOUSING LENGTH | 1.010 INCHES NOMINAL |
| HOUSING WIDTH | 4.312 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 1.068 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG SIDE OF A SQUARE | 3.062 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | ASSAULT AMPH VEHICLE,AAVP7; AAVC7; AAVR7 |
Restrictions/Controls & Freight Information | NSN 3130-01-284-2930
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 123070 | HOUSINGS BEARING AND SHAFT STEEL |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-01-284-2930
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
