NSN 3130-01-280-6978 FB22455H, 01-280-6978, 012806978
Product Details | ROLLER BEARING UNIT
3130-01-280-6978 An assembled unit, composed of a housing incorporating a single or multiple row roller bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: FB22455H, 3130-01-280-6978, 01-280-6978, 3130012806978, 012806978
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 JUN 1988 | 01-280-6978 | 30558 ( BEARING UNIT, ROLLER ) |

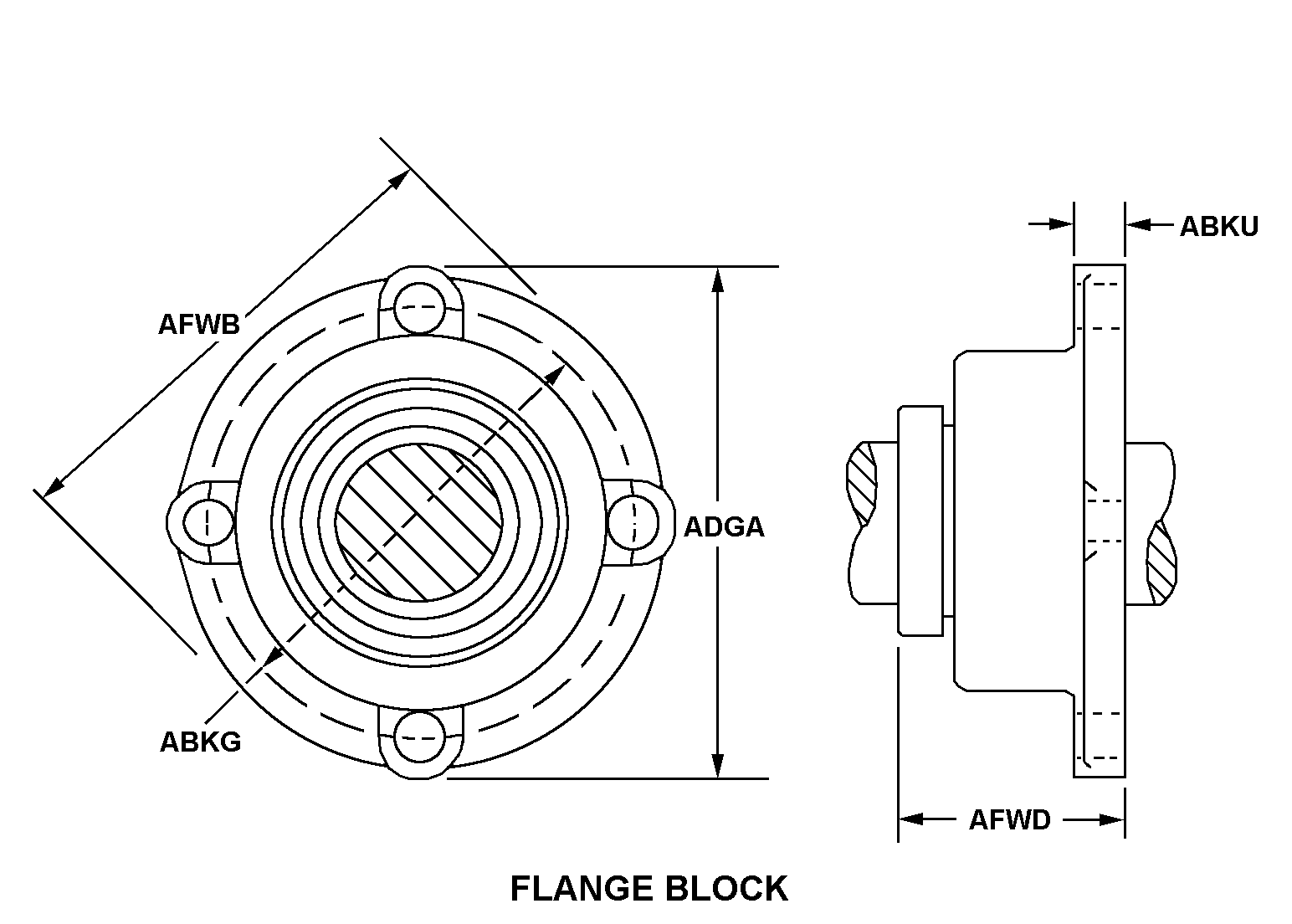

Drawings & Photos | NSN 3130-01-280-6978
Demand History | NSN 3130-01-280-6978
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FB22455H | 2011-01-24 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-280-6978
Related Products | NSN 3130-01-280-6978
Technical Data | NSN 3130-01-280-6978
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 3.4375 INCHES NOMINAL |
| MATERIAL | IRON CAST HOUSING STEEL SEAL |
| STYLE DESIGNATOR | A37 FLANGE BLOCK |
| BOLT CIRCLE DIAMETER | 9.5000 INCHES NOMINAL |
| FLANGE THICKNESS | 1.3750 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 11.4375 INCHES NOMINAL |
| HOUSING DIAMETER | 8.5625 INCHES NOMINAL |
| HOUSING LENGTH | 4.5625 INCHES NOMINAL |
| MOUNTING HOLE TYPE | ROUND, UNTHREADED |
| MOUNTING HOLE DIAMETER | 0.7500 INCHES NOMINAL |
| LUBRICATION FITTING TYPE | HYDRAULIC |
| LUBRICATION FITTING ANGLE FROM HORIZONTAL CENTERLINE | 45.0 DEGREES NOMINAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 2 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | LABYRINTH |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | ECCENTRIC CAM LOCKING COLLAR |
| COLLAR LOCATION | ONE END |
| LOAD CAPABILITY TYPE | RADIAL |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
Restrictions/Controls & Freight Information | NSN 3130-01-280-6978
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-01-280-6978
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
