NSN 3130-00-843-8559 D10073B, D1007-3B, P2428
Product Details | ROLLER BEARING UNIT
3130-00-843-8559 An assembled unit, composed of a housing incorporating a single or multiple row roller bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: D10073B, D1007-3B, P2428, P2-428, PB22428H, 3130-00-843-8559, 00-843-8559, 3130008438559, 008438559
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-843-8559 | 30558 ( BEARING UNIT, ROLLER ) |

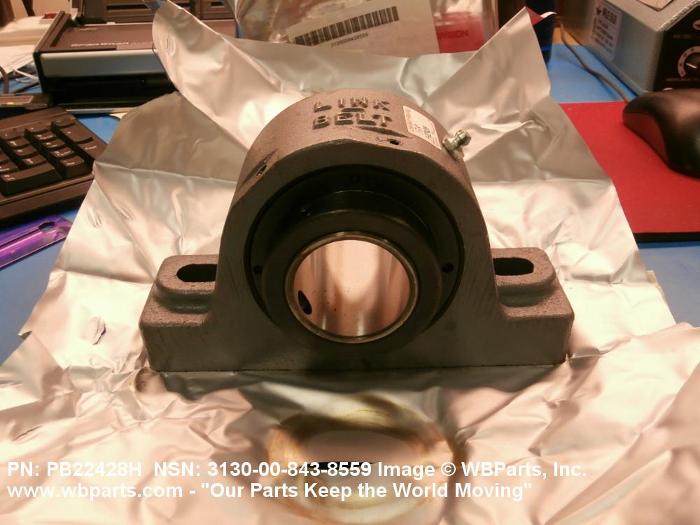

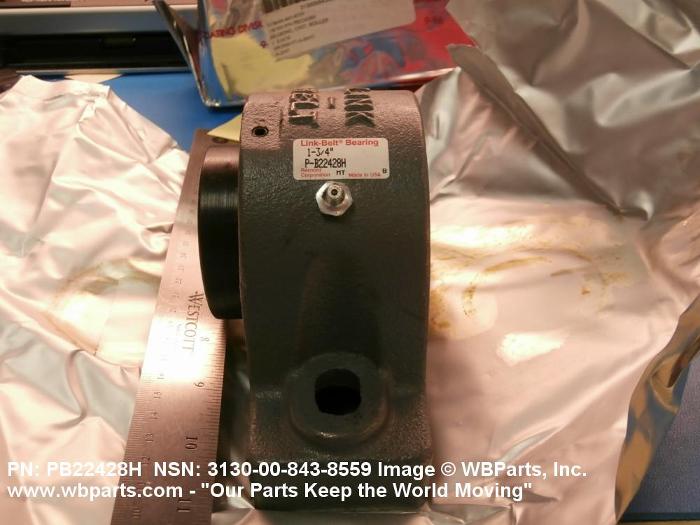

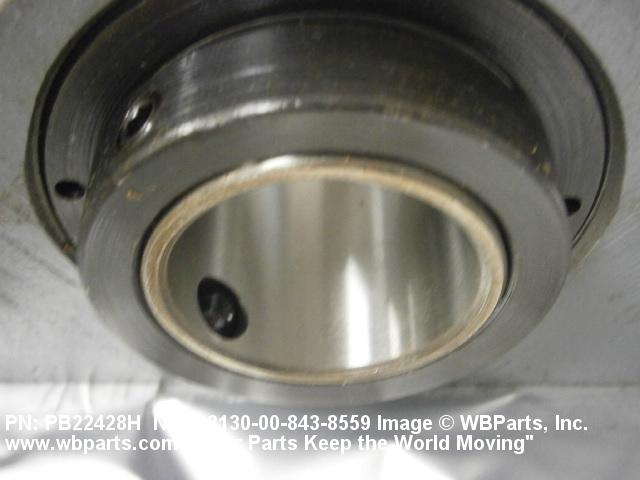

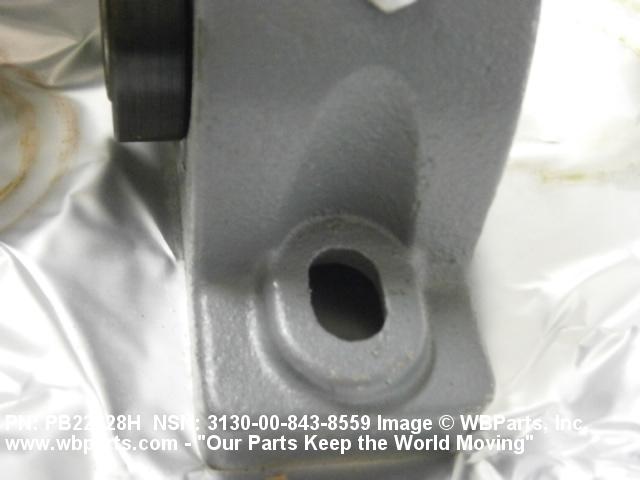

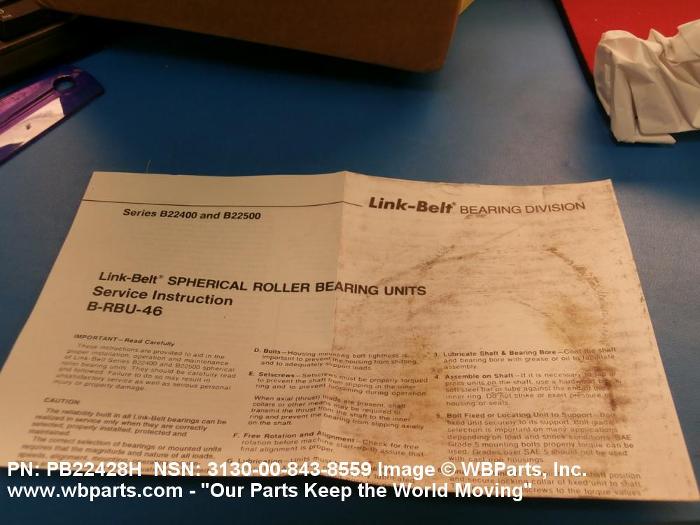

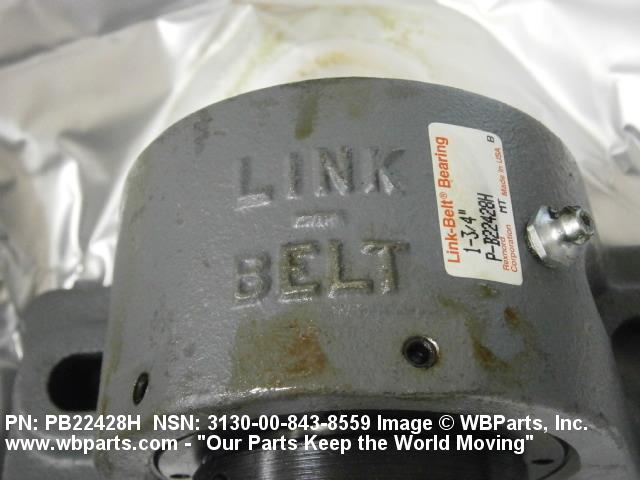

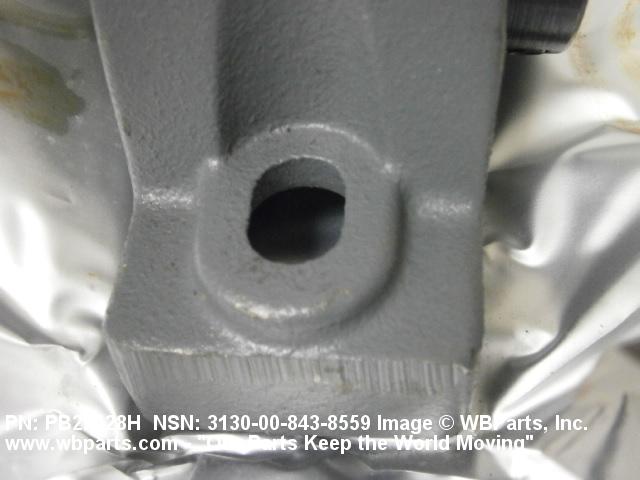

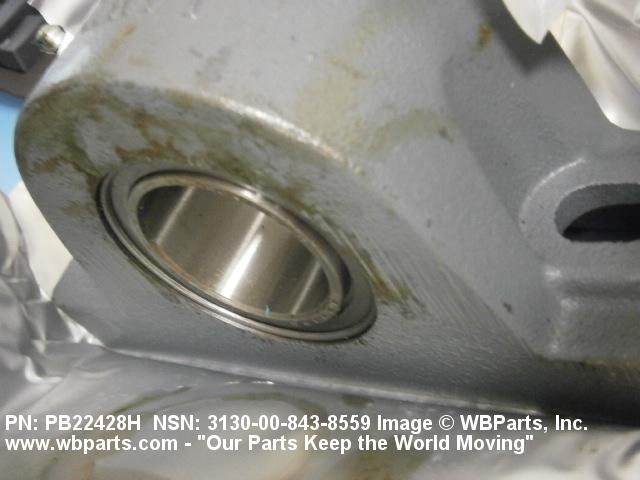

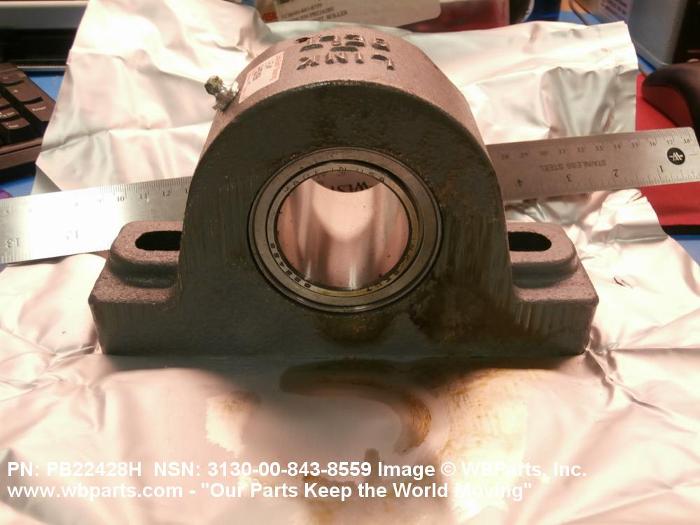

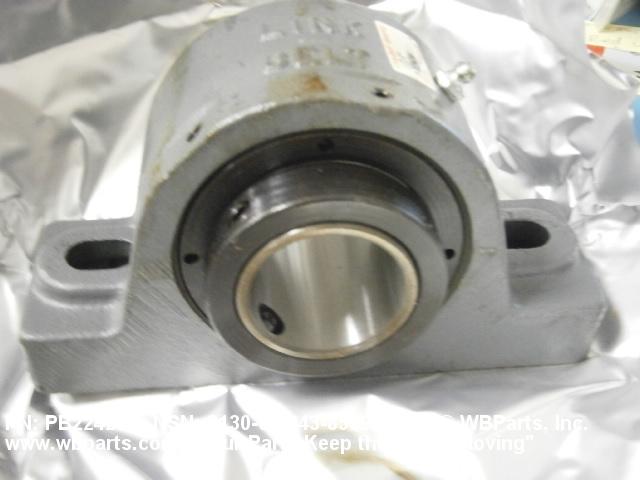

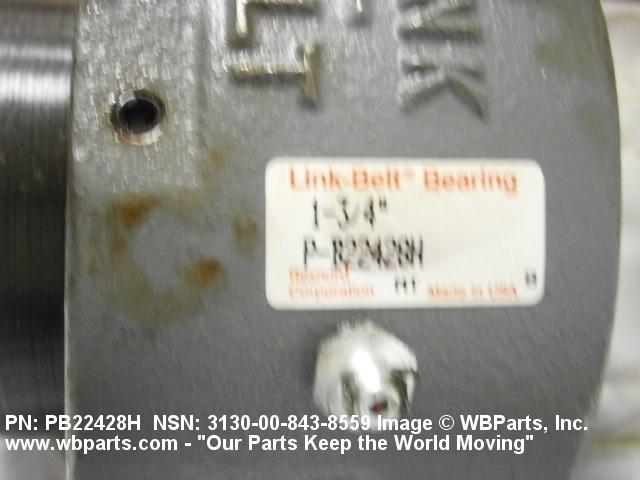

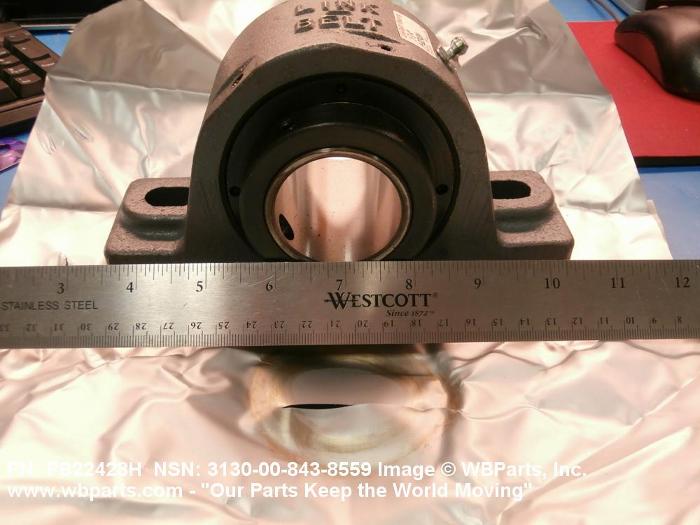

Drawings & Photos | NSN 3130-00-843-8559
Demand History | NSN 3130-00-843-8559
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3130-00-843-8559 | 2017-12-340 | 26 | DIBBS |
| 3130-00-843-8559 | 2013-09-256 | 4 | DIBBS |
| 3130-00-843-8559 | 2012-11-311 | 4 | DIBBS |
| PB22428H | 2012-10-284 | 6 | United States |
| 3130-00-843-8559 | 2012-03-91 | 2 | US |
| 3130-00-843-8559 | 2011-12-362 | 2 | US |
| PB22428H | 2011-12-341 | 4 | United States |
| 3130-00-843-8559 | 2011-07-200 | 1 | US |
| PB22428H | 2011-06-174 | 1 | US |
| 3130-00-843-8559 | 2011-06-160 | 4 | DIBBS |
| 3130-00-843-8559 | 2010-07-204 | 2 | DIBBS |
| PB22428H | 2007-10-280 | 4 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-00-843-8559
Related Products | NSN 3130-00-843-8559
Technical Data | NSN 3130-00-843-8559
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.7500 INCHES NOMINAL |
| MATERIAL | IRON CAST HOUSING STEEL SEAL |
| STYLE DESIGNATOR | A16 PILLOW BLOCK, SOLID |
| BASE THICKNESS | 1.3125 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 5.5000 INCHES NOMINAL |
| HOUSING HEIGHT | 4.2500 INCHES NOMINAL |
| HOUSING WIDTH | 7.3750 INCHES NOMINAL |
| BASE LENGTH | 2.5000 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 3.1562 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 2.1250 INCHES NOMINAL |
| MOUNTING HOLE TYPE | SLOTTED |
| MOUNTING SLOT WIDTH | 0.5000 INCHES NOMINAL |
| MOUNTING SLOT LENGTH | 0.8125 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION FITTING TYPE | HYDRAULIC |
| LUBRICATION FITTING ANGLE FROM HORIZONTAL CENTERLINE | 30.0 DEGREES NOMINAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 2 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | LABYRINTH |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | SETSCREW LOCKING COLLAR |
| COLLAR LOCATION | ONE END |
| LOAD CAPABILITY TYPE | RADIAL |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
Restrictions/Controls & Freight Information | NSN 3130-00-843-8559
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-00-843-8559
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
