NSN 3130-01-280-3679 30612E5, 30-6-12E-5, 01-280-3679
Product Details | BEARING UNIT HOUSING
3130-01-280-3679 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Part Alternates: 30612E5, 30-6-12E-5, 3130-01-280-3679, 01-280-3679, 3130012803679, 012803679
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 08 JUN 1988 | 01-280-3679 | 30559 ( HOUSING, BEARING UNIT ) |
Drawings & Photos | NSN 3130-01-280-3679
Demand History | NSN 3130-01-280-3679
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30-6-12E-5 | 2022-12-340 | 8 | DIBBS |
| 30-6-12E-5 | 2021-09-265 | 10 | DIBBS |
| 30-6-12E-5 | 2021-09-257 | 10 | DIBBS |
| 3130-01-280-3679 | 2016-04-109 | 2 | DIBBS |
| 3130-01-280-3679 | 2013-11-308 | 2 | DIBBS |
| 3130-01-280-3679 | 2013-07-185 | 1 | DIBBS |
| 3130-01-280-3679 | 2013-04-101 | 1 | DIBBS |
| 3130-01-280-3679 | 2013-01-07 | 1 | DIBBS |
| 3130-01-280-3679 | 2007-04-112 | 1 | DIBBS |
Cross Reference | NSN 3130-01-280-3679
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30-6-12E-5 | 75333 | KINGSBURY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-280-3679
Related Products | NSN 3130-01-280-3679
Technical Data | NSN 3130-01-280-3679
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 82.550 MILLIMETERS NOMINAL |

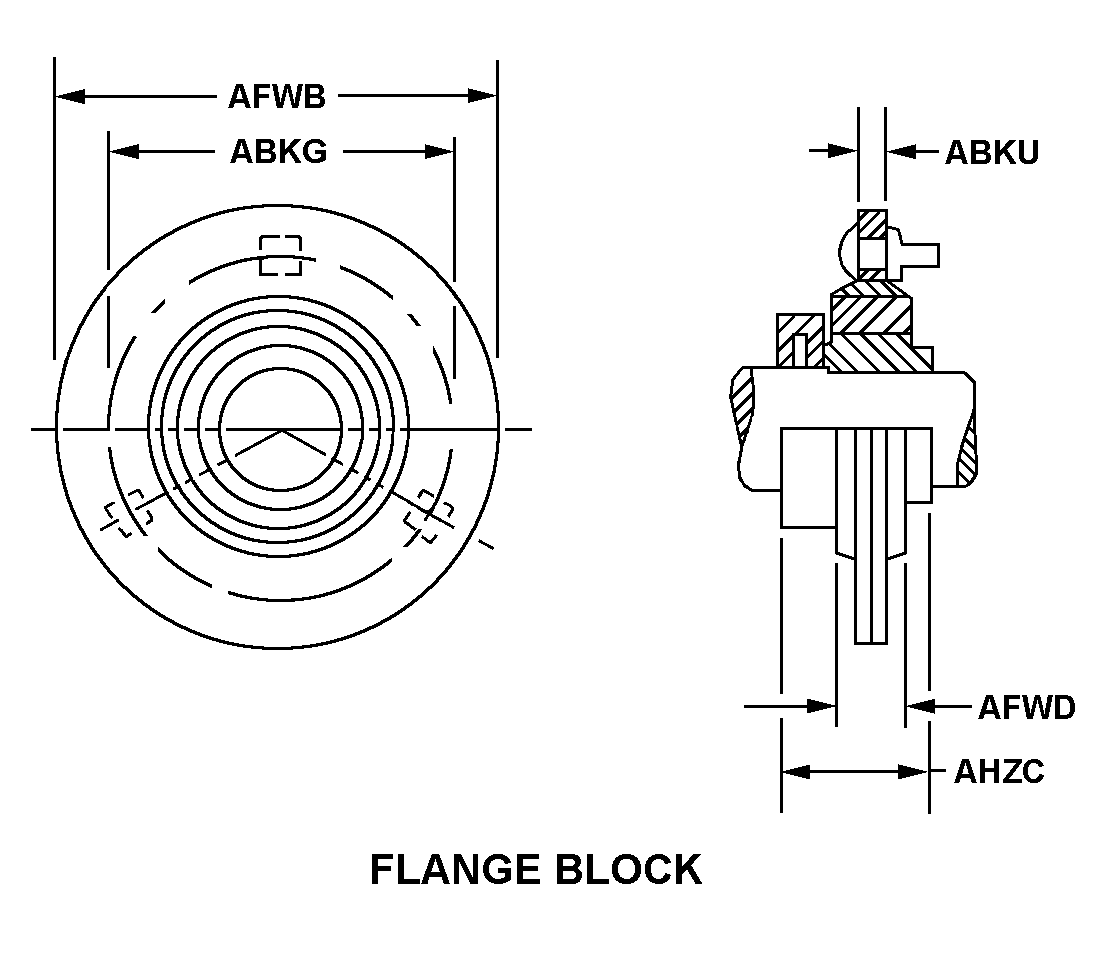

| STYLE DESIGNATOR | A31 FLANGE BLOCK |
| HOUSING DIAMETER | 161.78 MILLIMETERS MINIMUM AND 161.87 MILLIMETERS MAXIMUM |
| HOUSING LENGTH | 16.67 MILLIMETERS NOMINAL |
| ASSEMBLY OVERALL LENGTH | 59.44 MILLIMETERS NOMINAL |
| LUBRICATION MATERIAL | OIL |
| MANUFACTURERS CODE | 75333 |
| DESIGN CONTROL REFERENCE | 30-6-12E-5 |
Restrictions/Controls & Freight Information | NSN 3130-01-280-3679
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114800 | BEARING,ROLLER,THRUST |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-01-280-3679
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
