NSN 3130-01-153-1810 10874702, 01-153-1810, 011531810
Product Details | BEARING UNIT HOUSING
3130-01-153-1810 A single or multiple piece item without ball, plain or roller bearing(s). It is designed to meet various or specific conditions of mounting. For items with bearings, see BEARING UNIT, BALL; BEARING UNIT, PLAIN; and BEARING UNIT, ROLLER.
Part Alternates: 10874702, 3130-01-153-1810, 01-153-1810, 3130011531810, 011531810
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 13 MAY 1983 | 01-153-1810 | 30559 ( HOUSING, BEARING UNIT ) |

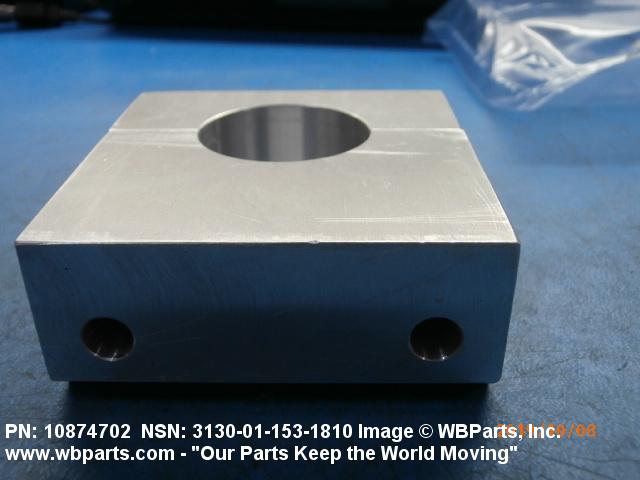

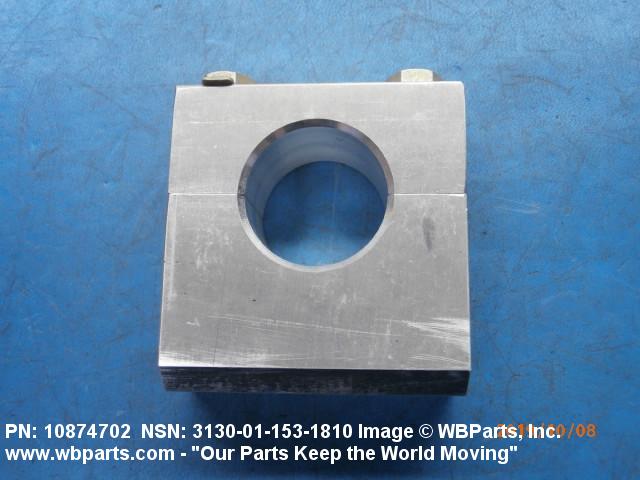

Drawings & Photos | NSN 3130-01-153-1810
Demand History | NSN 3130-01-153-1810
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3130-01-153-1810 | 2019-11-318 | 100 | United States |
| 3130-01-153-1810 | 2019-11-317 | 99 | DIBBS |
| 3130-01-153-1810 | 2019-08-234 | 15 | United States |
| 3130-01-153-1810 | 2019-02-44 | 15 | DIBBS |
| 3130-01-153-1810 | 2019-02-36 | 15 | DIBBS |
| 3130-01-153-1810 | 2019-01-22 | 11 | DIBBS |
| 3130-01-153-1810 | 2019-01-14 | 11 | DIBBS |
| 3130-01-153-1810 | 2015-08-224 | 10 | DIBBS |
| 3130-01-153-1810 | 2015-08-216 | 10 | DIBBS |
| 3130-01-153-1810 | 2015-07-196 | 17 | DIBBS |
| 3130-01-153-1810 | 2015-07-188 | 17 | DIBBS |
| 3130-01-153-1810 | 2014-10-289 | 17 | DIBBS |
| 3130-01-153-1810 | 2014-10-281 | 17 | DIBBS |
| 3130-01-153-1810 | 2014-01-04 | 4 | DIBBS |
| 3130-01-153-1810 | 2013-12-360 | 4 | DIBBS |
| 3130-01-153-1810 | 2010-03-77 | 58 | DIBBS |
| 3130-01-153-1810 | 2009-12-356 | 74 | DIBBS |
| 3130-01-153-1810 | 2009-09-266 | 80 | DIBBS |
| 3130-01-153-1810 | 2009-08-217 | 12 | DIBBS |
| 3130-01-153-1810 | 2009-07-187 | 28 | DIBBS |
| 3130-01-153-1810 | 2009-04-104 | 4 | DIBBS |
| 3130-01-153-1810 | 2008-10-289 | 130 | DIBBS |
| 3130-01-153-1810 | 2007-02-37 | 39 | DIBBS |
Cross Reference | NSN 3130-01-153-1810
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10874702 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-01-153-1810
Related Products | NSN 3130-01-153-1810
Technical Data | NSN 3130-01-153-1810
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.3730 INCHES MINIMUM AND 1.3780 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| STYLE DESIGNATOR | A1 PILLOW BLOCK, OPTIONAL SPLIT |
| BASE THICKNESS | 3.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 2.000 INCHES NOMINAL |

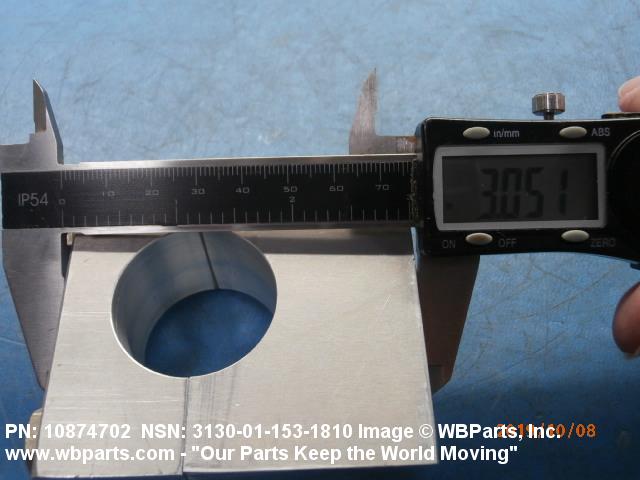

| HOUSING HEIGHT | 3.000 INCHES NOMINAL |

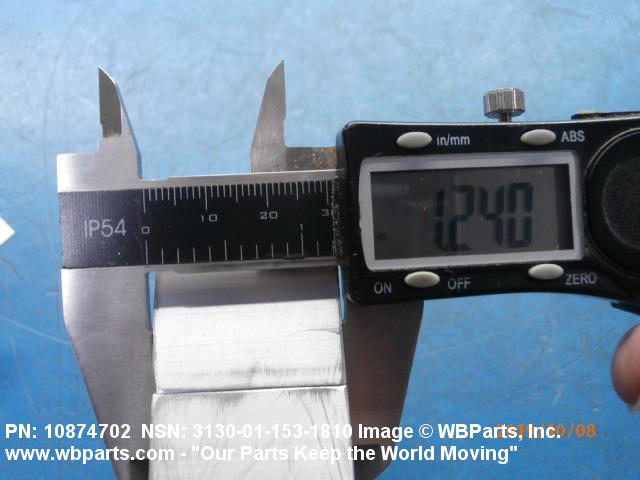

| HOUSING LENGTH | 1.250 INCHES NOMINAL |
| HOUSING WIDTH | 2.875 INCHES NOMINAL |
| BASE LENGTH | 1.250 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 1.875 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 3130-01-153-1810
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3130-01-153-1810
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
